Tormach 1100® Steel Fixture Tooling Plate

$ 1,499.00
  • Tormach 1100® Steel Fixture Tooling Plate

Saunders Machine Works

Tormach 1100® Steel Fixture Tooling Plate

$ 1,499.00
$ 1,499.00

Fixture Plate Starter Kits

Fixture Plate Starter Kits are the perfect way to get your machine making parts!

SMW now offers flexible starter kits for our fixture plate line, with the aim of getting machinists at any level making parts as soon as they get their fixture plate set up. Starter Kits are fully customizable to meet your needs! To view options, click here.


4140 Steel Hardened to 30 Rockwell C Fixture & Tooling Plate for Tormach PCNC 1100. Plate is compatible with all Tormach 1100 machines (including Series1/2/3, 1100M and 1100MX)

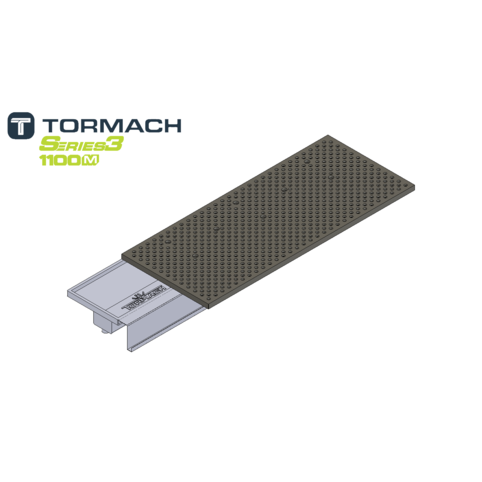

Standard Plate Size: 34" x 11.95" x 0.85"

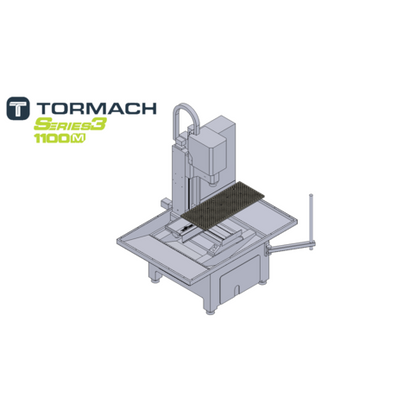

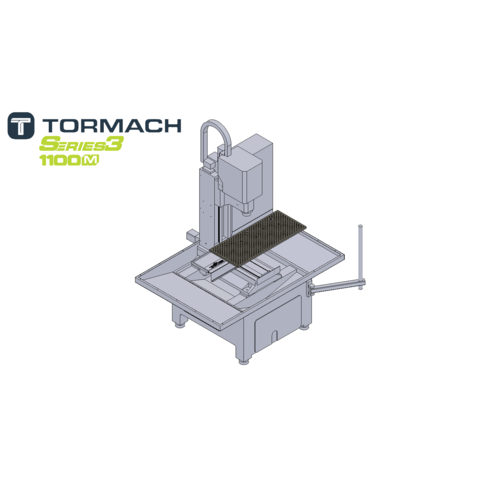

XL Plate Size: 38" x 16" x .85" (shown in CAD renders)

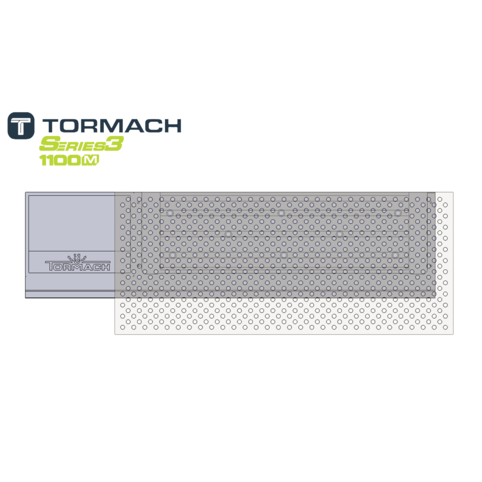

Holes are 1.25" on center.  Every hole is tapped 1/2x13 and reamed for 0.500" pin.

Includes low profile screws and t-nuts to mount fixture plate to machine table.

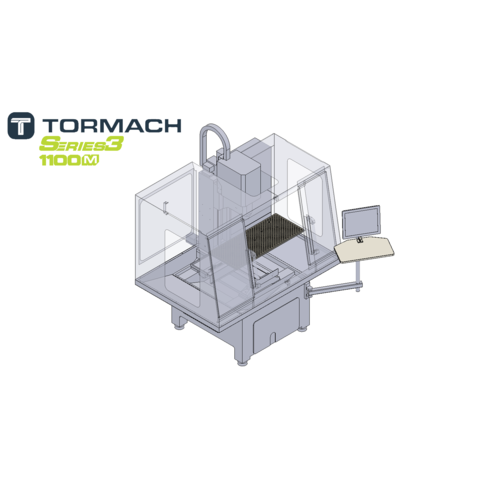

NOTE: We do not recommend installing plate with more than 2" of overhang on the X+ side of the table on Tormach 1100M and MX machines to avoid collision with the enclosure.

As of 5/4/2020 we have 2 standard plates in stock and 0 XL plates. Inventory subject to change. For questions about lead times for out-of-stock plates, see our FAQ.

For information and video demos on how to setup, install, access CAD models, and other tips and tricks, visit the FAQ page!

Solid Model Download (STEP, standard)

Solid Model Download (STEP, XL)

Drawing Download (PDF, standard)

Drawing Download (PDF, XL)

We have 1 plates in stock for the selected material. Out-of-stock plates typically have a two week lead time, please contact us for specific lead times or see our FAQ. Inventory is subject to change.
