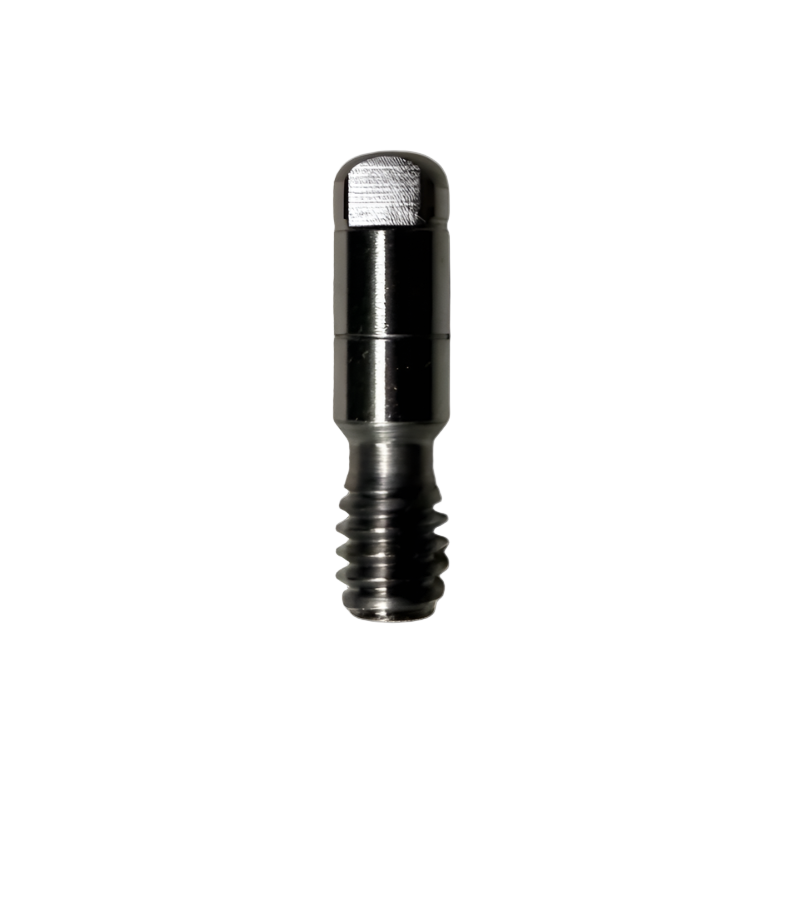

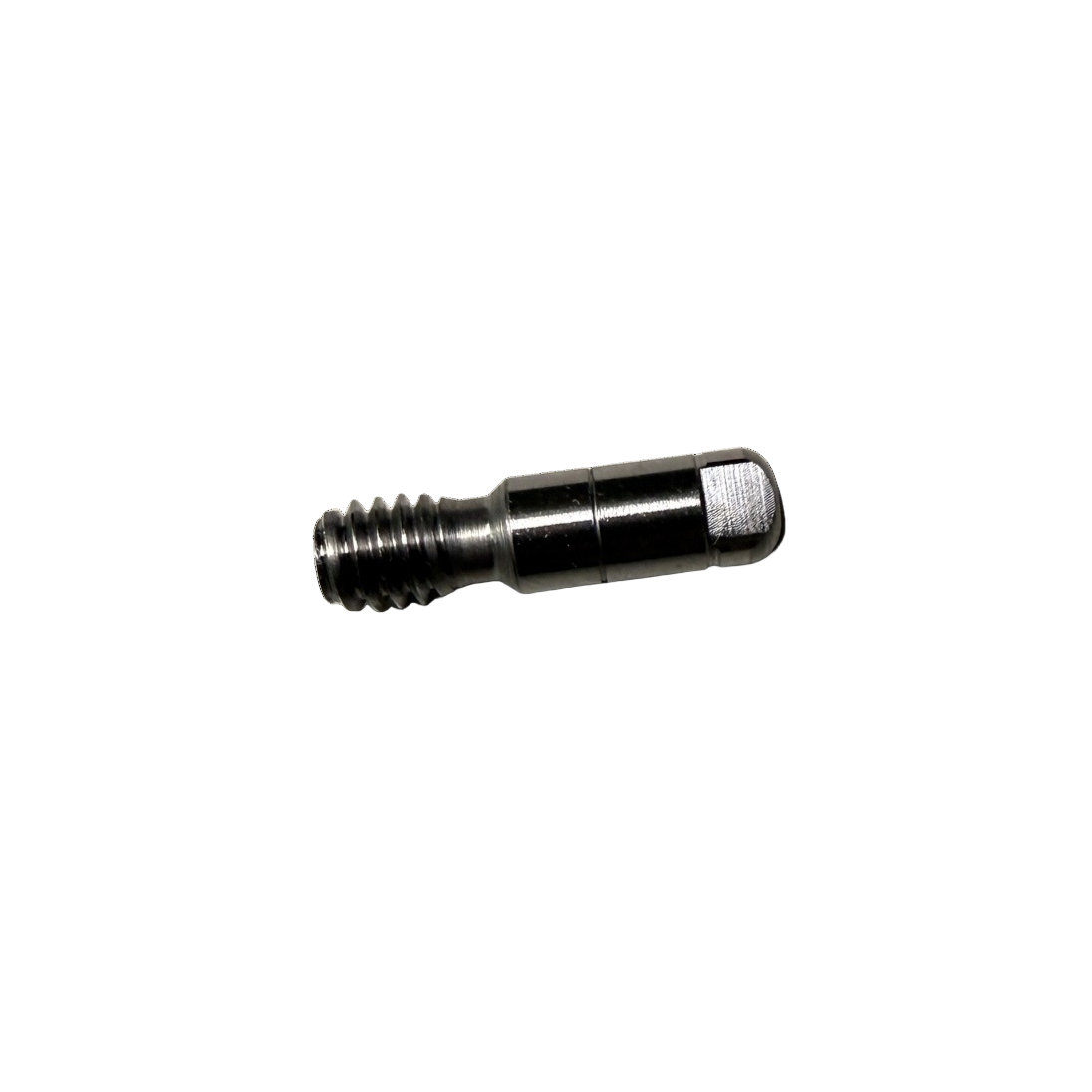

SMW 6mm Fixturing Pin

SMW 6mm Fixturing Pin

Regular price $ 8.99 USD
Sale price $ 8.99 USD Regular price
Sale Sold out
Our P/N: S1465

In stock

These pins install in your SMW fixture plate, referencing the chamfers of each threaded hole, and allow for repeatable positioning of our Hobby Modular Vise (M6).

Note: due to the tight slip fit, Modular Vise bases must be removed  carefully. Placing fingers on either side of the vise near the pins and lifting straight up is critical. You may find it easier to 'wiggle' the vise base off of the pins, but this must be done in small enough increments that the base does not bind. You may also slightly loosen the pins to make the vise easier to remove.

Pins sold individually.

Drawing Download (PDF)
