Tormach 440® Fixture Tooling Plate

Tormach 440® Fixture Tooling Plate

$ 399.00 USD
$ 399.00 USD
Sale Sold out
Material
Our P/N: S1063
Recommended Add-Ons [1] 3/8" T-Slot Hardware Kit (+$ 14.99 ea.)
[200] Black Fixture Plate Plugs (+$ 49.98 / plate)
Accessory Kits [1] Basic Accessory Kit (+$ 405.93 ea.)
[1] Standard Accessory Kit (+$ 949.80 ea.)
[1] Pro Accessory Kit (+$ 1,931.60 ea.)

4 in stock

Product Specifications

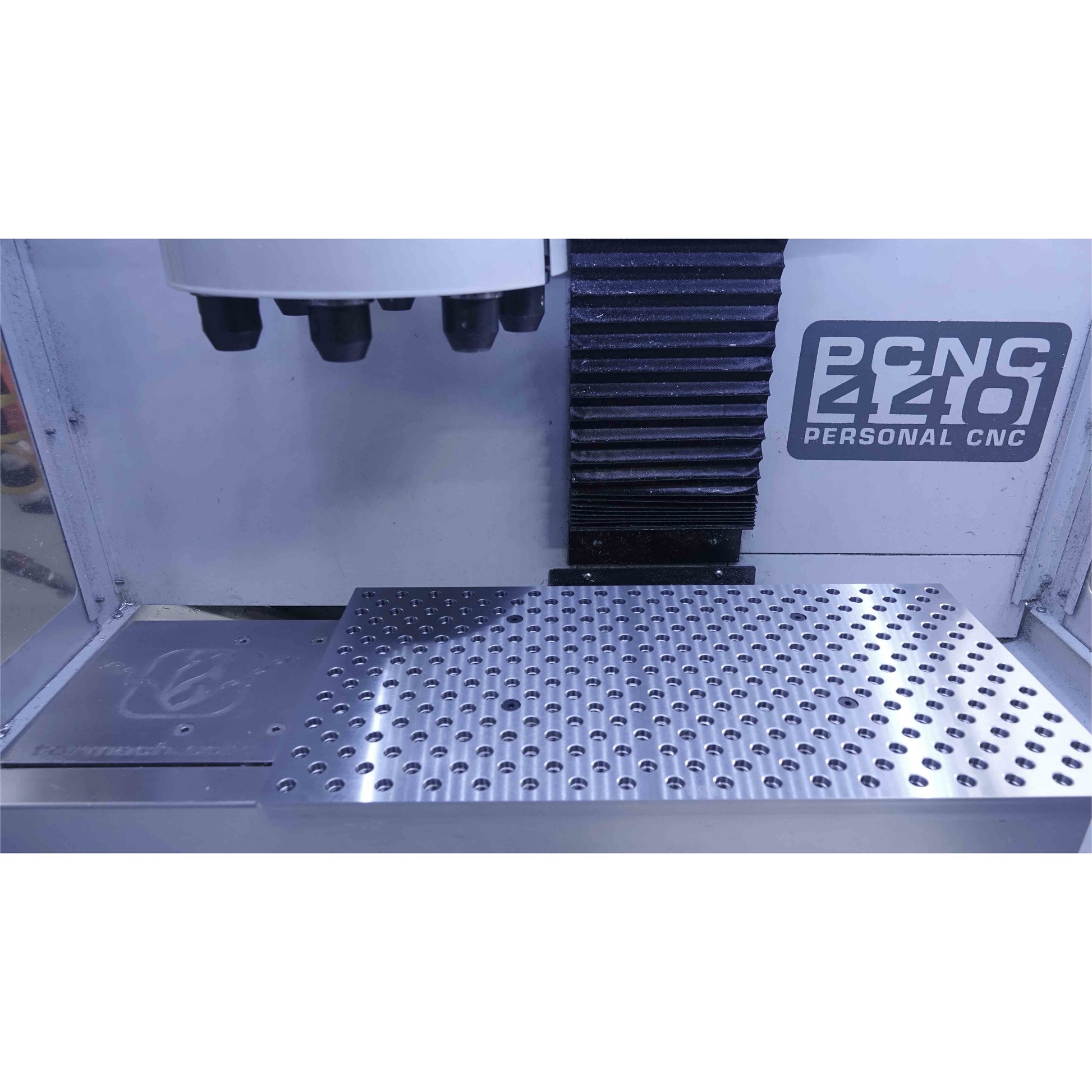

Fixture & tooling plate for Tormach PCNC 440 CNC machines.

Measurements: 18" x 9". Steel plates are 0.85" thick, aluminum plates are 0.95" thick.

Plate mounts to table with 4 low profile SHCS. Mounting screws and t-nuts are available as a separate option.

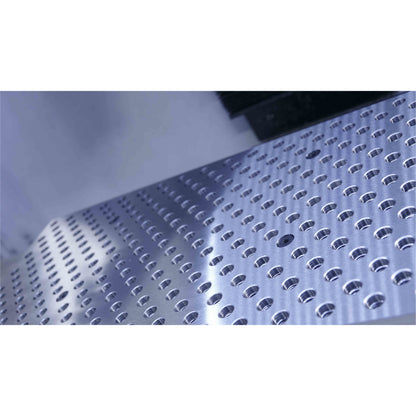

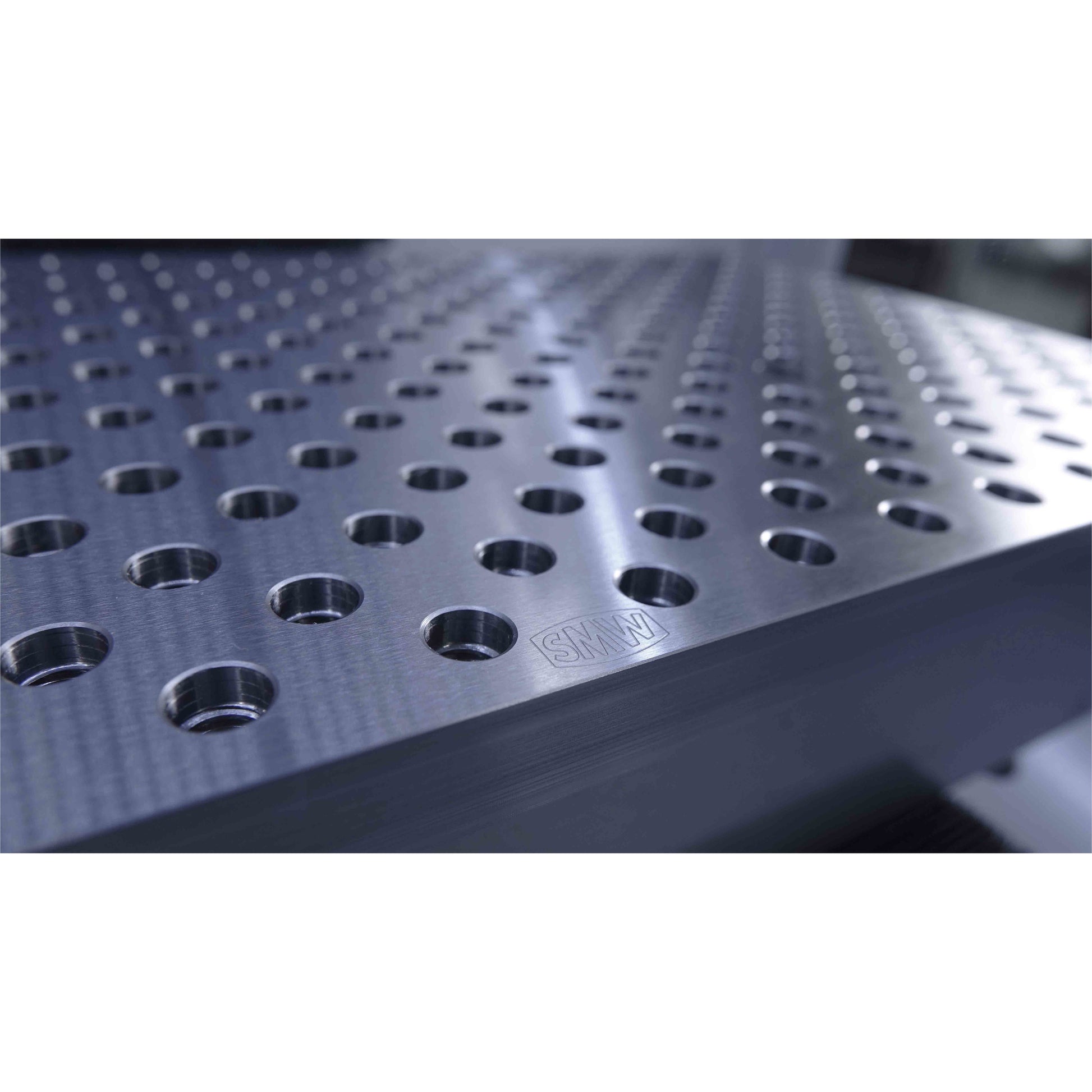

Plate has 172 fixture holes that are spaced 1.25" on-center. Each fixture hole is tapped 1/2-13 UNC and bored for 0.500" pin.

Available in 4140 steel, anodized 7075 aluminum, or 6061 aluminum. Click here to see the benefits of each.



On-Table Weights
Variant Weight
6061 Aluminum 12.4lbs [5.6kg]
7075 Ano. Aluminum 12.4lbs [5.6kg]
4140 Steel 32.1lbs [14.6kg]
Bare aluminum plates require a corrosion inhibitor (available here) if being mounted on a bare steel surface. Read more on our Knowledge Base.

Lead Time

  • In stock plates are typically ready to ship within one business day (other items in order may affect shipping time).
  • Out-of-stock bare aluminum and steel plates have a lead time of 3-4 weeks (steel fixture plate sets carry a 4-5 week lead time), while anodized 7075 fixture plates are 4-6 weeks.

Please contact us for specific lead times or to inquire about time-critical orders.

Shipping

This fixture plate ships via standard parcel shipping (FedEx Ground or USPS Priority). For questions about additional shipping methods, please contact us.

Low-profile socket head cap screws and t-nuts are available as an option.  No additional installation hardware is required.

For fixture plate installation instructions see our Knowledge Base article here.

Bare aluminum plates require a corrosion inhibitor (available here) if being mounted on a bare steel surface. Read more on our Knowledge Base.
Tormach 440 Fixture Plate Solid Model (.step) Tormach 440 Fixture Plate Drawing (.pdf)
