Fixture Plate Set Installation Tool

Fixture Plate Set Installation Tool

Regular price $ 24.99 USD
Sale price $ 24.99 USD Regular price
Sale Sold out
Our P/N: S1110

In stock

Set of two alignment jigs for quick alignment of SMW Fixture Plate Sets. Only necessary if installing a set of 2+ fixture plates on a single machine. This tool is not necessary for setup of single plates.

This jig set ensures that the 1.25" fixturing hole pattern is continuous and correctly aligned across each fixture plate in your fixture plate set.

See our Fixture Plate Installation Instructions for recommended use.

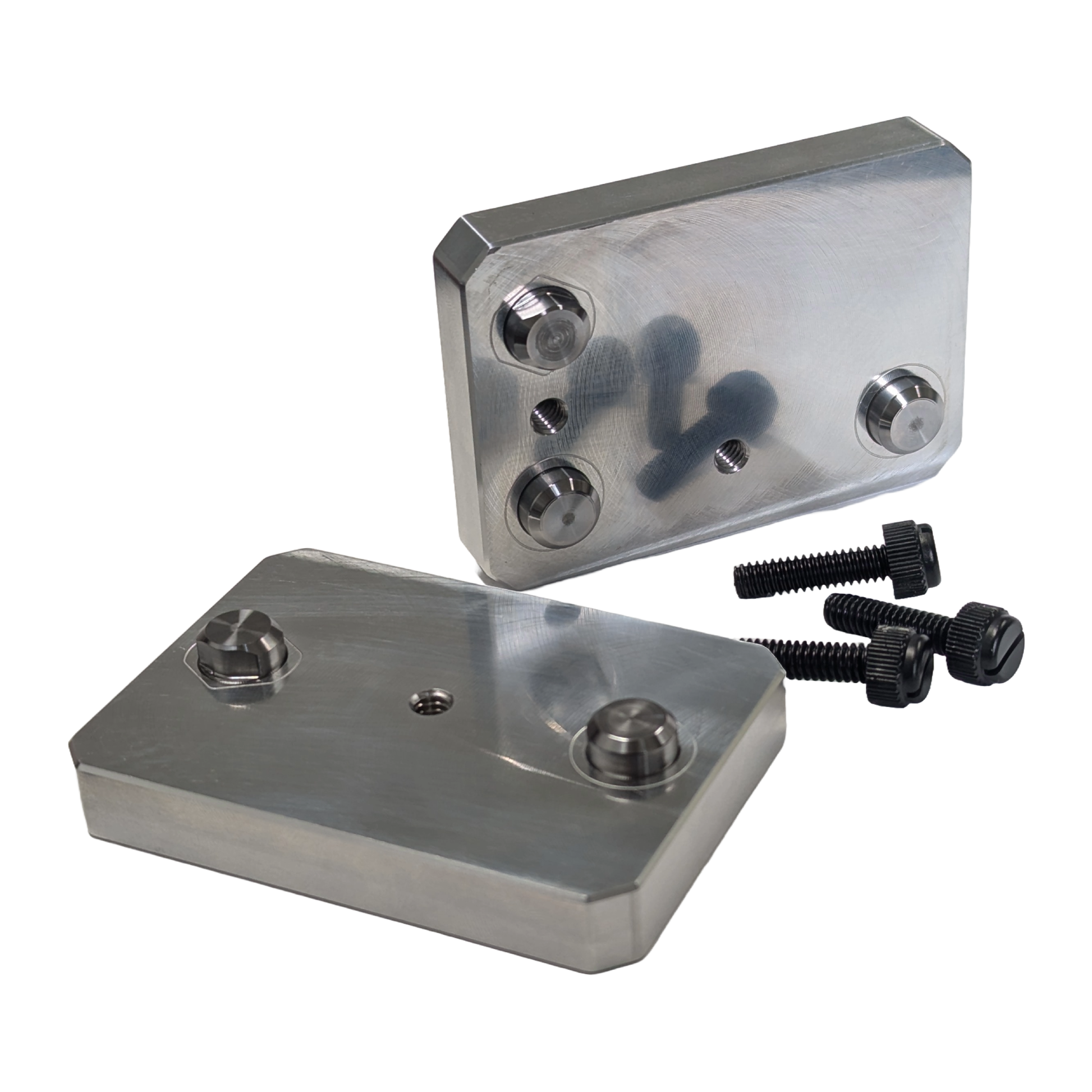

Set includes:

  • [2] aluminum jig bases with preinstalled alignment pins
  • [3] Plastic thumb screws for easy jig removal

For best alignment, place two jig bases as far away as possible without covering any fixture plate mounting holes (ideally one jig at the top of the plate seam and one at the bottom). To make removal easier, install fixture plate plugs below the installation tool (otherwise you may require longer screws).

Lead Time

  • In stock plates are typically ready to ship within one business day (other items in order may affect shipping time).
  • Out-of-stock bare aluminum and steel plates have a lead time of 3-4 weeks (steel fixture plate sets carry a 4-5 week lead time), while anodized 7075 fixture plates are 4-6 weeks.

Please contact us for specific lead times or to inquire about time-critical orders.

Shipping

This fixture plate ships via standard parcel shipping (FedEx Ground or USPS Priority). For questions about additional shipping methods, please contact us.
