Haas TM-1 & TM-2 Fixture Tooling Plate

Haas TM-1 & TM-2 Fixture Tooling Plate

$ 2,299.00 USD
$ 2,299.00 USD
Sale Sold out
Material
Our P/N: S1072
Recommended Add-Ons [1] 5/8" & 16mm T-Slot Hardware Kit (+$ 27.99 ea.)
[800] Black Fixture Plate Plugs (+$ 174.96 / plate)
Accessory Kits [1] Basic Accessory Kit (+$ 411.93 ea.)
[1] Standard Accessory Kit (+$ 963.80 ea.)
[1] Pro Accessory Kit (+$ 1,965.60 ea.)

2 in stock

We also have the following plates in stock at a discounted price:

Product Specifications

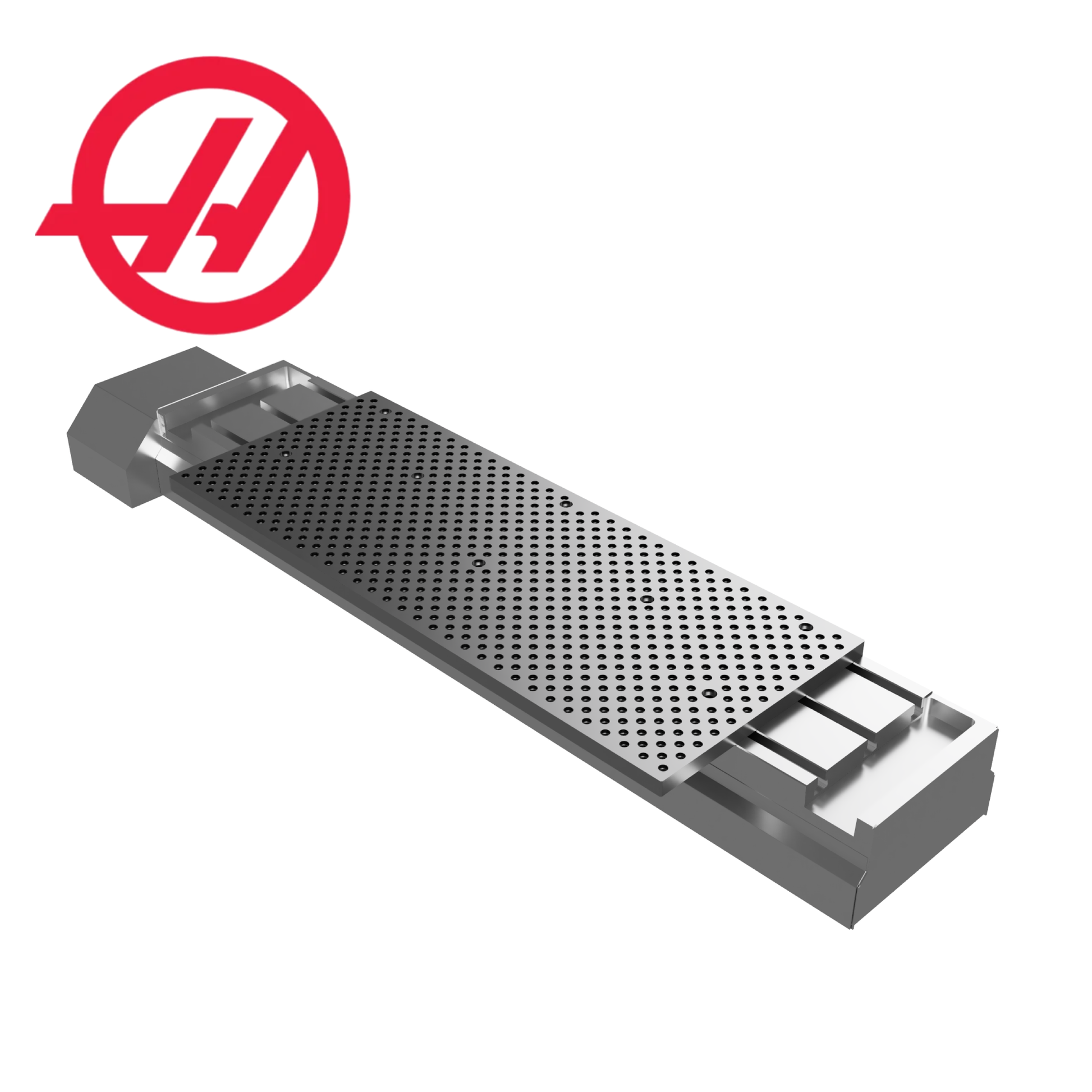

Fixture & tooling plate for Haas TM-1 and TM-2 CNC machines (including -P models).

Measurements: 40" x 16" x 0.95"

Plate mounts to table with 8 low profile SHCS. Mounting screws and t-nuts are available as a separate option.

Plate has 756 fixture holes that are spaced 1.25" on-center. Each fixture hole is tapped 1/2-13 UNC and bored for 0.500" pin.

Available in 4140 steel or anodized 7075 aluminum. Click here to see the benefits of each.

Note: due to varying table & column clearances between TM-series generations, this fixture plate sits flush with the back edge of the table. On some machines the travel extends beyond this back edge, meaning that (like the stock table) there is no extra workholding surface area outside of the work envelope at Y+.



On-Table Weights
Variant Weight
4140 Steel 127.2lbs [57.7kg]
7075 Ano. Aluminum 50.1lbs [22.7kg]

Lead Time

  • In stock plates are typically ready to ship within one business day (other items in order may affect shipping time).
  • Out-of-stock bare aluminum and steel plates have a lead time of 3-4 weeks (steel fixture plate sets carry a 4-5 week lead time), while anodized 7075 fixture plates are 4-6 weeks.

Please contact us for specific lead times or to inquire about time-critical orders.

Shipping

This fixture plate is shipped LTL freight. We recommend shipping to a commercial address for the best rates (freight shipping to residential addresses can be expensive). If you do not have access to a commercial address, orders can often be shipped to a local FedEx Freight terminal for pickup.

Low-profile socket head cap screws and t-nuts are available separately.  No additional installation hardware is required.

For fixture plate installation instructions see our Knowledge Base article here.

Haas TM-1 & TM-2 Fixture Plate Solid Model (.step) Haas TM-1 & TM-2 Fixture Plate Drawing (.pdf)
