Haas 4th & 5th Axis Universal Subplate

Haas 4th & 5th Axis Universal Subplate

$ 399.00 USD
$ 399.00 USD
Sale Sold out
Material
Subplate
Our P/N: S1298

In stock

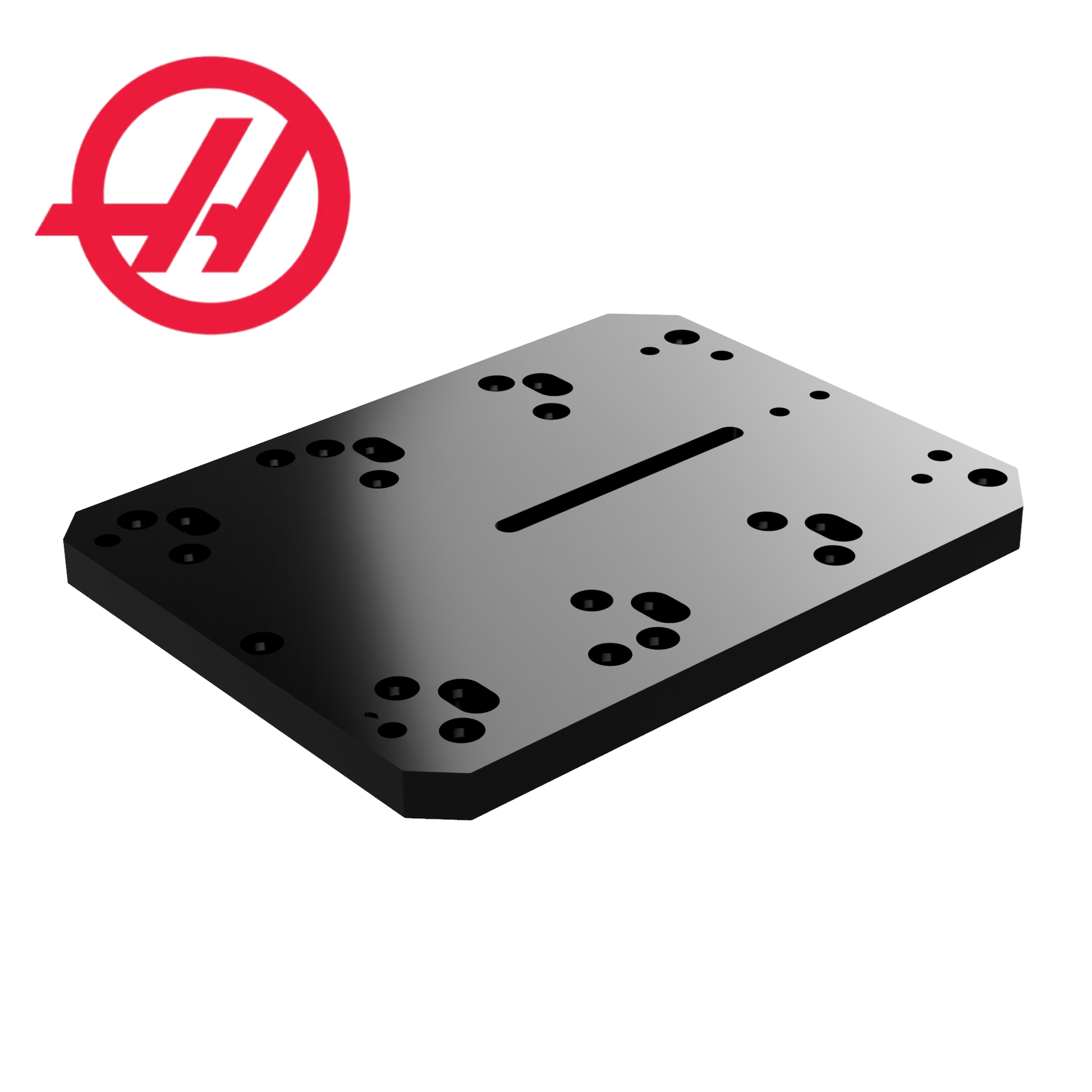

15.75" x 12" x 0.95" anodized 6061 aluminum subplate for most 'small' to 'medium' Haas multi-axis rotaries and indexers. Subplate is reversible for +X or -X mounting location.

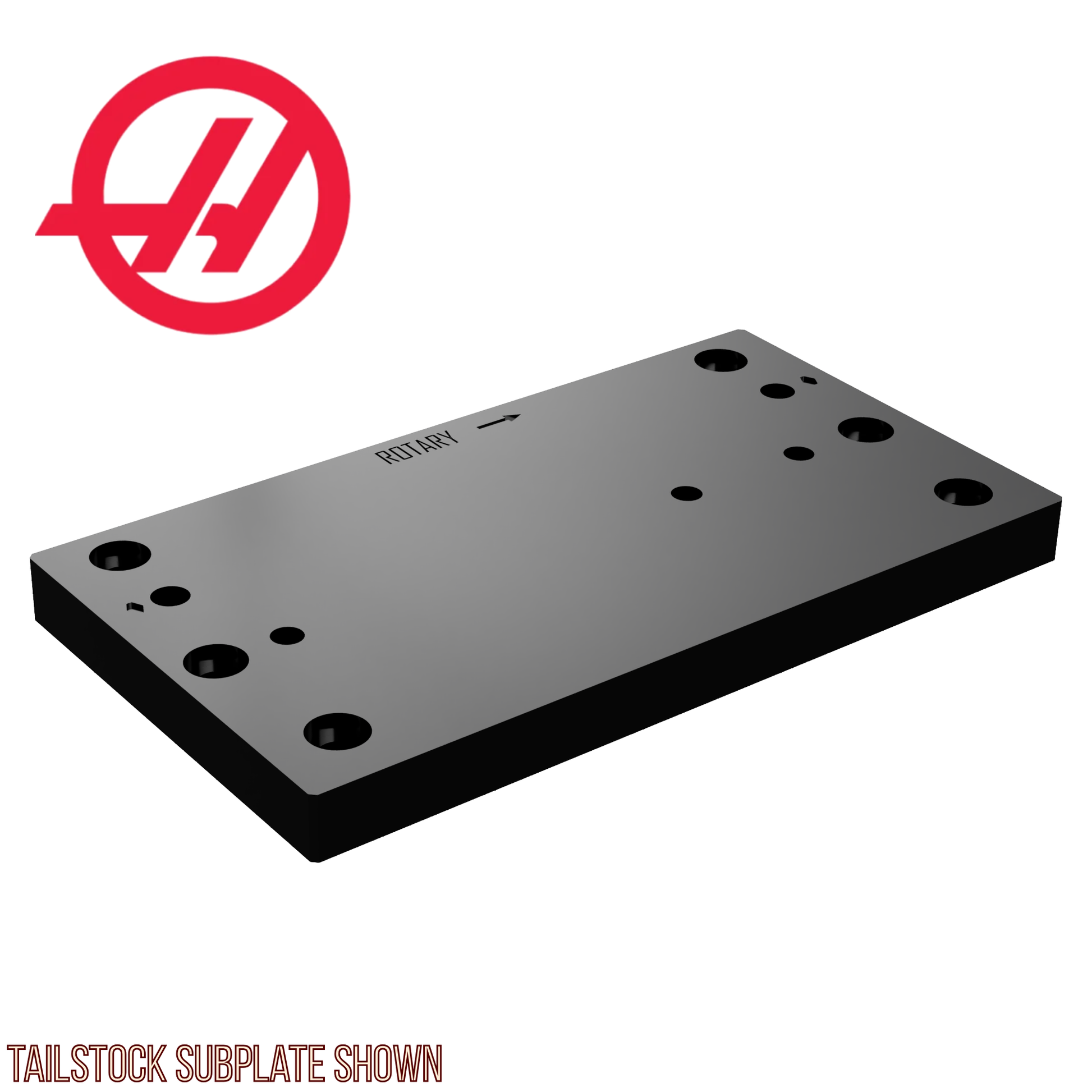

11.95" x 6.625" x 0.95" anodized 6061 aluminum tailstock subplate is available as a matched-thickness pair (not sold individually).

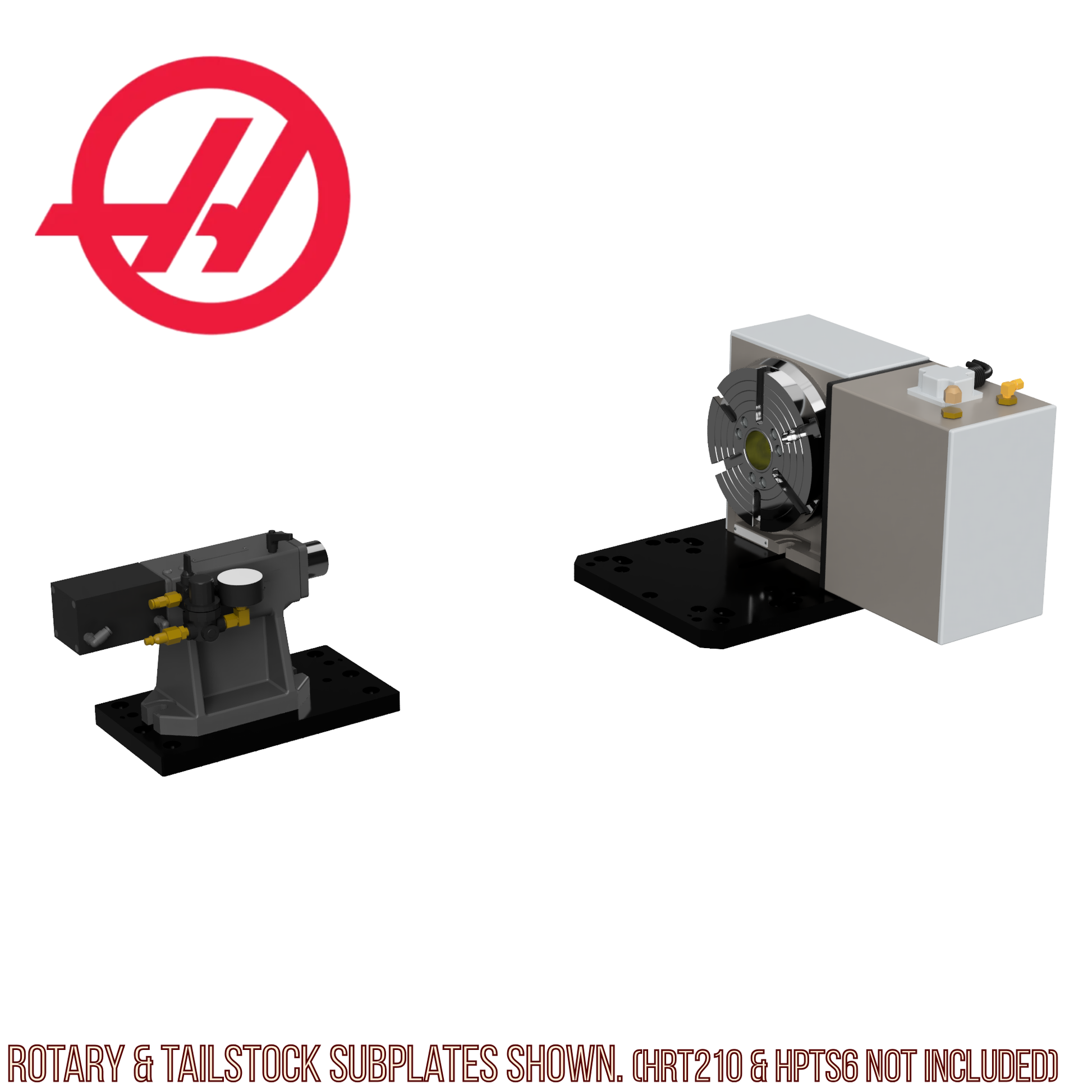

The rotary subplate can be used one of two ways, with the tailstock subplate being compatible with both use-cases:

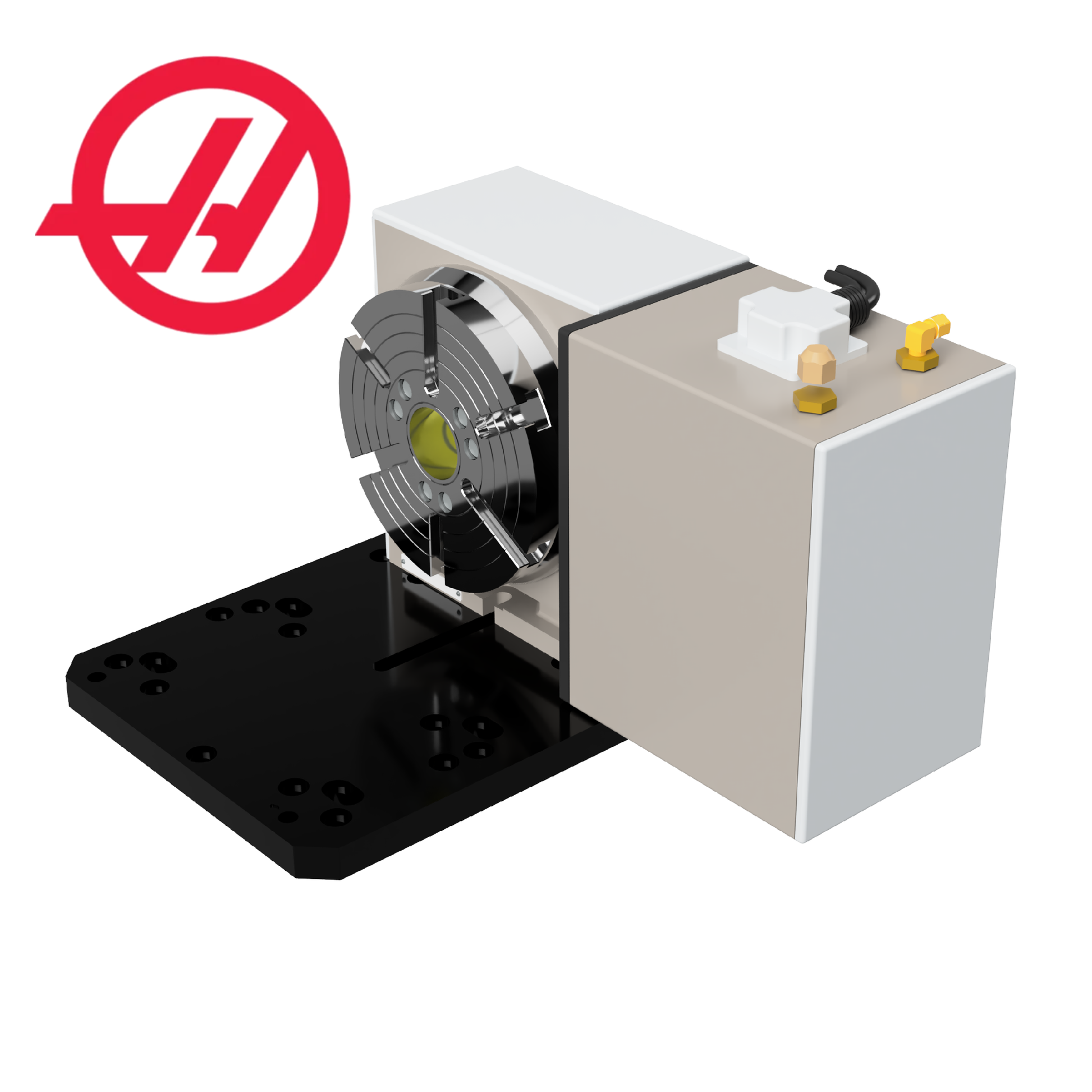

  • Mounted directly on the machine table, allowing the multi-axis accessory to overhang slightly saving X-axis travel
  • Mounted directly to an SMW fixture plate and aligned with our 1/2" fixturing pins for easy installation, alignment, and removal.

Subject to our standard 4-6 week anodized fixture plate lead time if out of stock at time of order.

Hardware for mounting the rotary or tailstock to the subplate is user supplied. Hardware for mounting subplates to a fixture plate or machine table is not included but available separately - see below for the hardware required for your application:

 Recommended Hardware
Subplate Version Installing on Machine Table Installing on SMW Fixture Plate
Rotary Subplate

5/8" T-Nut Hardware Kit (6pc.)

 1/2-13 Low Profile Hardware Kit (6pc.)
Tailstock Subplate

5/8" T-Nut Hardware Kit (8pc.)

Tailstock subplate contains (2) t-slot mounting holes, so an 8pc. hardware kit is sufficient for both the rotary and tailstock subplates.

 1/2-13 Low Profile Hardware Kit (4pc.)

Note: most Haas mills use 5/8" t-slots, but some (e.g. DC-series mills) may require our 14mm or 18mm hardware kits.

Multi-axis Compatibility Mill Compatibility

Rotary Subplate:

  • T5C
  • TRT70
  • TRT100*
  • TRT160*
  • TRT210*
  • HRC160
  • HRC210
  • HRT100
  • HRT160
  • HRT210
  • HRT310
  • HRTA5
  • HRTA6
  • HA5C

Tailstock Subplate:

  • 3.5" Tailstocks (HTS3.5, HPTS3.5)
  • 4" Tailstocks (HTS4, HPTS4)
  • 5" Tailstocks (HTS5, HPTS5)
  • 6" Tailstocks (HTS6, HPTS6)
  • 9" Tailstocks (HTS9, HPTS9)
*Cannot be used alongside an SMW fixture plate. We recommend only mounting these rotaries, alongside the subplate, directly to the machine table. The larger footprint of these rotaries occludes mounting holes necessary for securing the subplate to a fixture plate.

**Rotaries and indexers with mounting slots smaller than 1/2" may require custom hardware, thread adapters, etc. as the subplate is meant for 1/2-13 mounting hardware.
Subplates are compatible with most Haas CNC mills. This includes machines with 4.92", 3.15", and 3.94" through 4.38" T-slot center distances:
  • VF-series mills
  • Mini & Super Mini Mill series mills
  • VM-series mills
  • TM-series mills
  • DT- & DM-series mills
  • DC-series mills (**requires 14mm or 18mm t-slot hardware kit)

Subplates may be compatible with rotaries or mills not listed. For additional inquiries please contact support@saundersmachineworks.com

Note: product may contain additional tapped holes for use in the manufacturing process. Example rotaries shown in photos/videos not included.

Haas Universal Subplate Solid Model (.step) Haas Universal Subplate & Rotary Fitment Drawing (.pdf) Haas Tailstock Subplate Solid Model (.step) Haas Tailstock Subplate Drawing (.pdf)
