SMW 96mm Pallet

SMW 96mm Pallet

$ 199.00 USD
$ 199.00 USD
Sale Sold out
Size
Hole Pattern
Our P/N: S2144

Out of stock

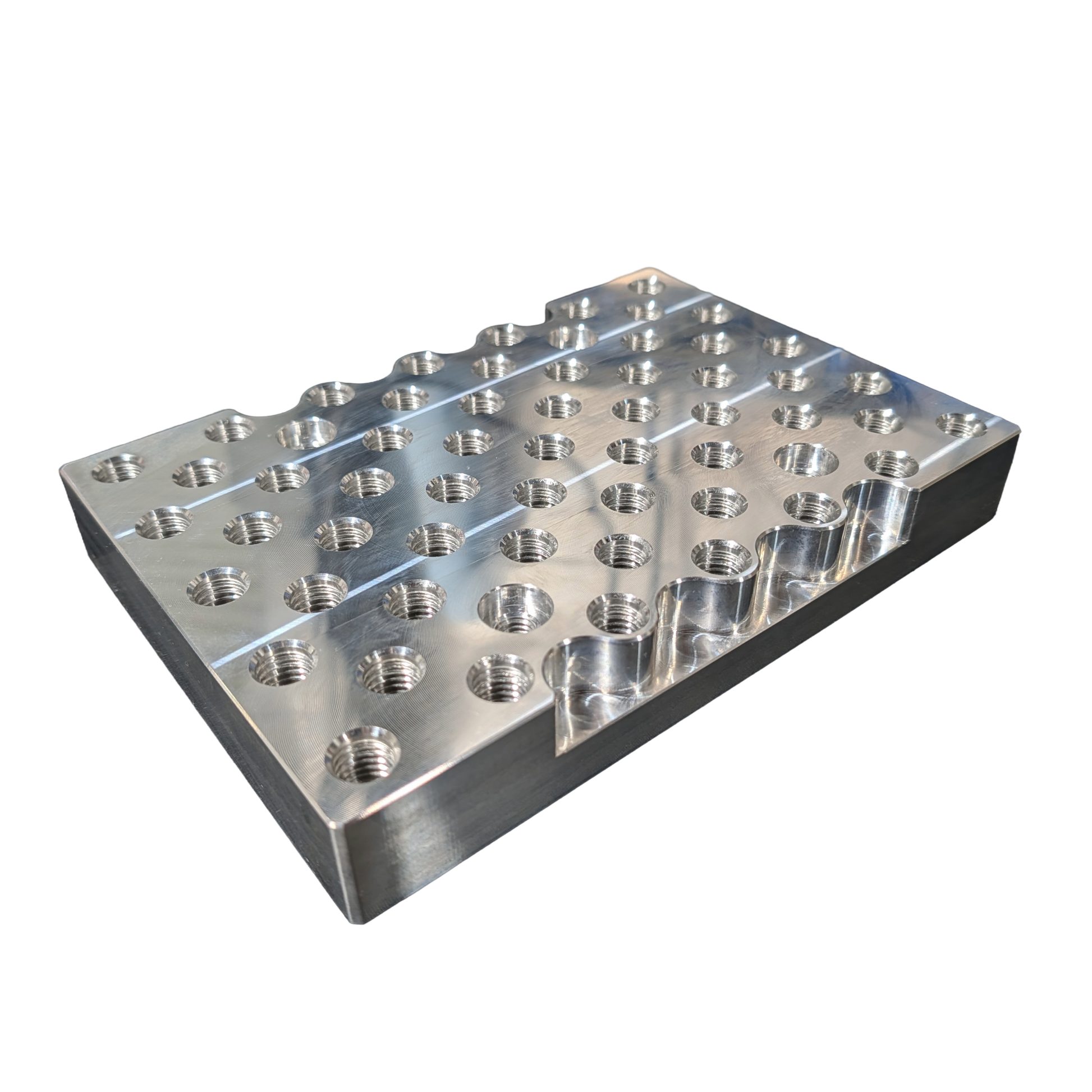

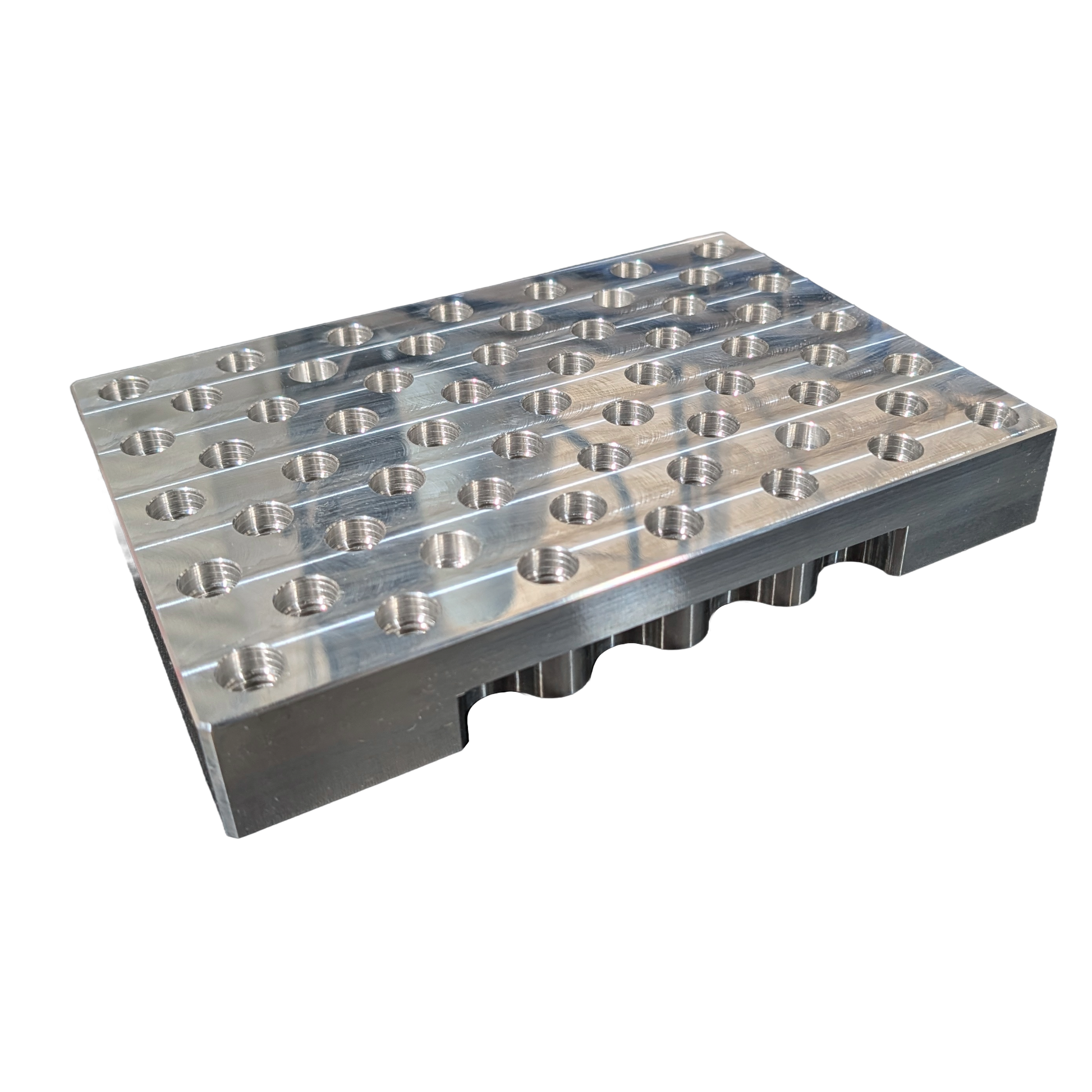

SMW Fixture Pallet compatible with 96mm zero point systems! Made with our standard 1/2" precision-bored and threaded fixturing pattern on 1.25" centers.

Available in two sizes:

  • 8" x 6" (8.50" x 5.95" x 1.2" [215.9mm x 151.1mm x 30.5mm] actual dimensions)
    • QTY4 pullstud locations (2x2 grid on 96mm centers)
    • Accommodates approximately 3.5" [89mm] of vise jaw opening with a Gen3 Modular Vise*
  • 14" x 6" (13.63" x 5.95" x 1.2" [346.1mm x 151.1mm x 30.5mm] actual dimensions)
    • QTY8 pullstud locations (2x4 grid on 96mm centers)
    • Accommodates approximately 8.5" [216mm] of vise jaw opening with a Gen3 Modular Vise*

Underside bores for pullstuds (AKA retention knob, clamping stud, etc) will fit most common 96mm zero point pullstuds with a 16mm locating diameter and an M10 thread. See drawing below for specific dimensions.

Available in 6061 aluminum. Pullstuds not included.

*Values are conservative and assume little to no vise overhang. Real-world jaw opening can be slightly larger if the adjustable side of the vise is allowed to overhang the pallet edge. Download our solid models below to check this for your specific setup.

Lead Time

In stock plates are typically ready to ship within one business day (other items in order may affect shipping time).

Out-of-Stock Lead Times
Material Single Plate Set of 2-3 Plates Set of 4+ Plates
4140 Steel 7-8 weeks 8-9 weeks 9-11 weeks
7075 Aluminum (Anodized) 4-6 weeks 5-7 weeks 6-8 weeks
6061 Aluminum 4-5 weeks 4-5 weeks --

Please contact us for specific lead times or to inquire about time-critical orders.

Shipping

This fixture plate ships via standard parcel shipping (FedEx Ground or USPS Priority). For questions about additional shipping methods, please contact us.

14x6 96mm Pallet Solid Model (.step) 14x6 96mm Pallet Drawing (.pdf) 8x6 96mm Pallet Solid Model (.step) 8x6 96mm Pallet Drawing (.pdf)
