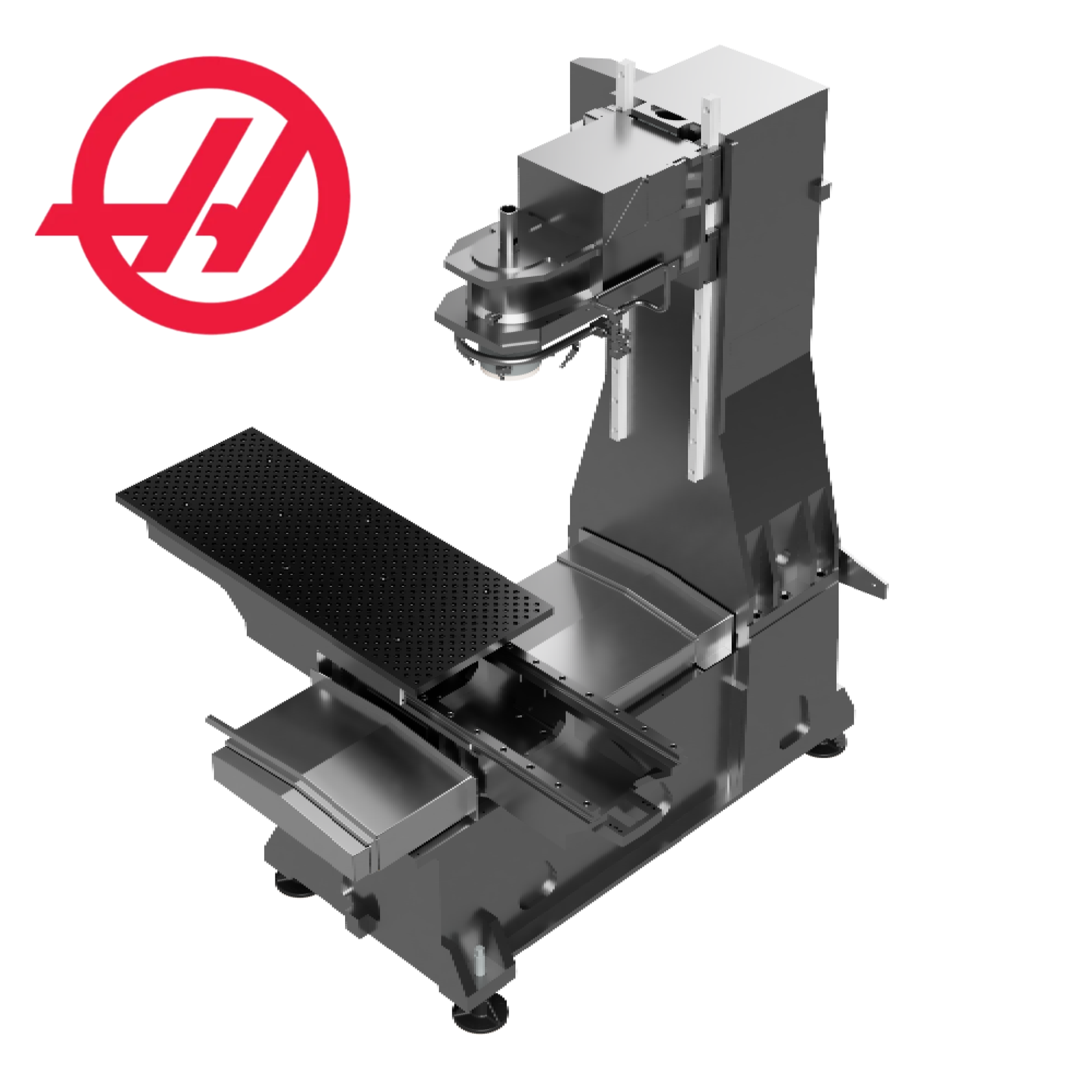

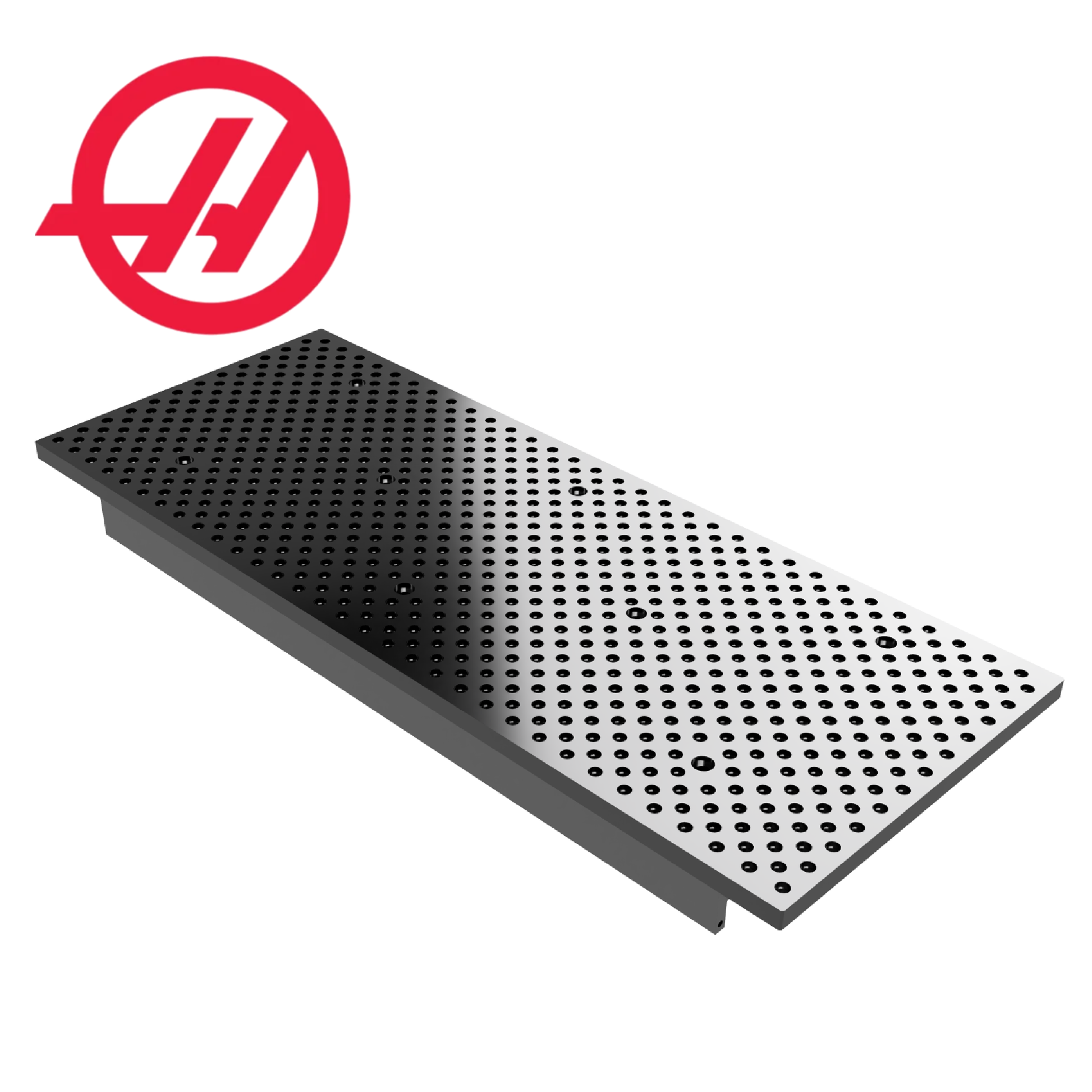

Fixture & tooling plate for Haas DM-2 and DT-2 CNC machines.
Measurements: 40" x 16" x 0.95"
Plate mounts to table with 8 low profile SHCS. Mounting screws and t-nuts are available as a separate option.
Plate has 756 fixture holes that are spaced 1.25" on-center. Each fixture hole is tapped 1/2-13 UNC and bored for 0.500" pin.
Due to the low maximum weight on table of the DT series this plate is only offered in anodized 7075 aluminum.
| Variant | Weight (lbs) |
|---|---|
| 7075 Ano. Aluminum | 48.3 |
Low-profile socket head cap screws and t-nuts are available separately. No additional installation hardware is required.
| Variant | QTY |
|---|---|
| 7075 Ano. Aluminum | 2 |
In stock plates are typically ready to ship within one business day (other items in order may affect shipping time).
Out-of-stock bare aluminum and steel plates have a lead time of 3-4 weeks (steel fixture plate sets carry a 4-5 week lead time), while anodized 7075 fixture plates are 4-6 weeks. Please contact us for specific lead times or to inquire about time-critical orders.
If you do not have access to a commercial address, orders can often be shipped to a local FedEx Freight terminal for pickup.
