Haas DM/DT-2® Tooling Plate

Haas DM/DT-2® Tooling Plate

$ 1,999.00 USD
$ 1,999.00 USD
Sale Sold out
Material
Our P/N: S1069
Recommended Add-Ons [1] 5/8" & 16mm T-Slot Hardware Kit (+$ 27.99 ea.)
[800] Black Fixture Plate Plugs (+$ 174.96 / plate)
Accessory Kits [1] Basic Accessory Kit (+$ 405.93 ea.)
[1] Standard Accessory Kit (+$ 949.80 ea.)
[1] Pro Accessory Kit (+$ 1,931.60 ea.)

2 in stock

Product Specifications

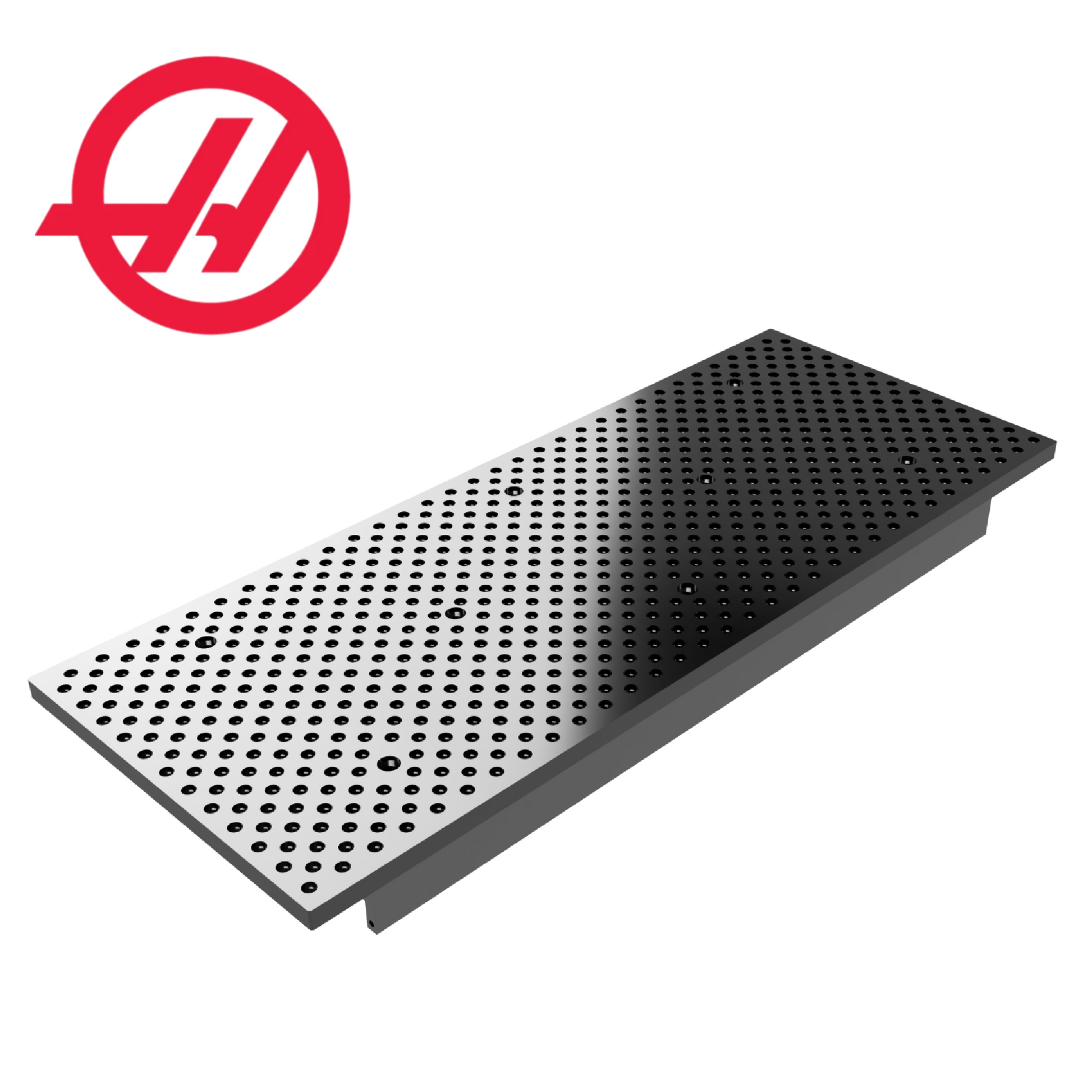

Fixture & tooling plate for Haas DM-2 and DT-2 CNC machines.

Measurements: 40" x 16" x 0.95"

Plate mounts to table with 8 low profile SHCS. Mounting screws and t-nuts are available as a separate option.

Plate has 756 fixture holes that are spaced 1.25" on-center. Each fixture hole is tapped 1/2-13 UNC and bored for 0.500" pin.

Due to the low maximum weight on table of the DT series this plate is only offered in anodized 7075 aluminum.



On-Table Weights
Variant Weight
7075 Ano. Aluminum 48.3lbs [21.9kg]

Lead Time

  • In stock plates are typically ready to ship within one business day (other items in order may affect shipping time).
  • Out-of-stock bare aluminum and steel plates have a lead time of 3-4 weeks (steel fixture plate sets carry a 4-5 week lead time), while anodized 7075 fixture plates are 4-6 weeks.

Please contact us for specific lead times or to inquire about time-critical orders.

Shipping

This fixture plate is shipped LTL freight. We recommend shipping to a commercial address for the best rates (freight shipping to residential addresses can be expensive). If you do not have access to a commercial address, orders can often be shipped to a local FedEx Freight terminal for pickup.

Low-profile socket head cap screws and t-nuts are available separately.  No additional installation hardware is required.

For fixture plate installation instructions see our Knowledge Base article here.

Haas DM/DT-2 Fixture Plate Solid Model (.step) Haas DM/DT-2 Fixture Plate Drawing (.pdf)
