Avid Benchtop 2424 Aluminum Fixture Tooling Plates

Avid Benchtop 2424 Aluminum Fixture Tooling Plates

$ 1,199.00 USD
$ 1,199.00 USD
Sale Sold out
Material
Our P/N: S1322
Recommended Add-Ons [1] Fixture Plate Set Installation Tool (+$ 24.99 ea.)
[800] Black Fixture Plate Plugs (+$ 174.96 / plate set)
Accessory Kits [1] Basic Accessory Kit (+$ 411.93 ea.)
[1] Standard Accessory Kit (+$ 963.80 ea.)
[1] Pro Accessory Kit (+$ 1,965.60 ea.)

1 in stock

Product Specifications

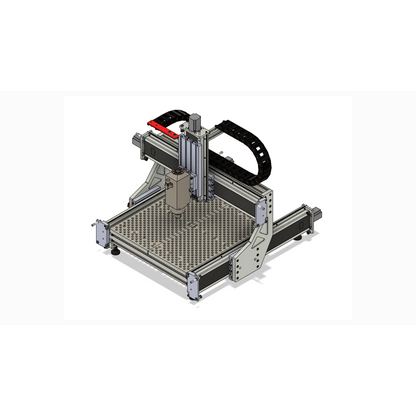

Fixture & tooling plate set for Avid Benchtop Standard and Benchtop PRO 2' x 2' routers.

Measurements: 26" x 24" x 0.92" (QTY2 26" x 12" plates).

Plate mounts to table with M5 SHCS. Mounting screws and t-nuts are not included.

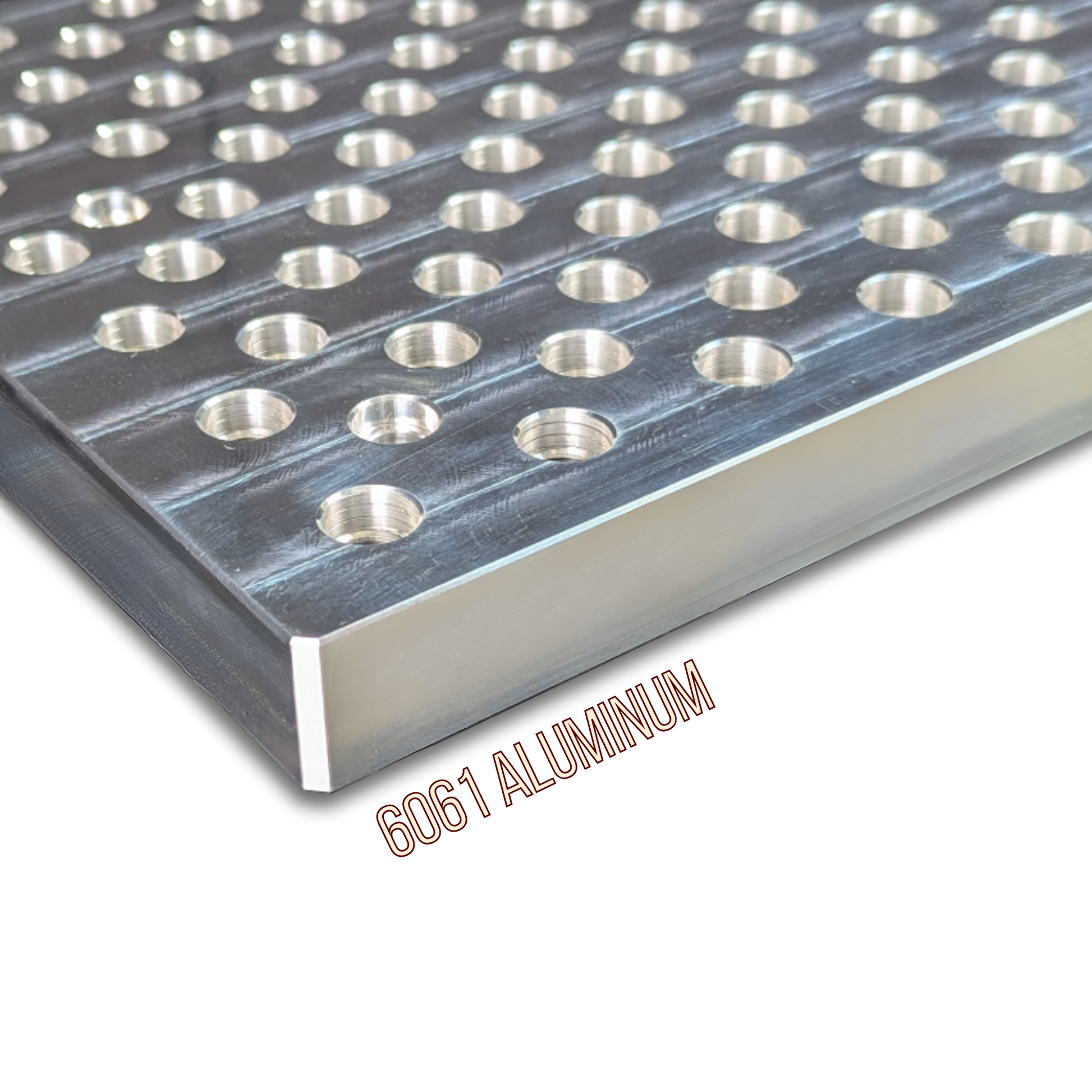

Each plate has 360 fixture holes that are spaced 1.25" on-center. Each fixture hole is tapped 1/2-13 UNC and bored for 0.500" pin.



On-Table Weights
Variant Weight
6061 Aluminum 47.3lbs [21.4kg]

Lead Time

  • In stock plates are typically ready to ship within one business day (other items in order may affect shipping time).
  • Out-of-stock bare aluminum and steel plates have a lead time of 3-4 weeks (steel fixture plate sets carry a 4-5 week lead time), while anodized 7075 fixture plates are 4-6 weeks.

Please contact us for specific lead times or to inquire about time-critical orders.

Shipping

This fixture plate ships via standard parcel shipping (FedEx Ground or USPS Priority). For questions about additional shipping methods, please contact us.

Mounting hardware not included. Plates are designed to utilize the same mounting locations as the sections of aluminum extrusion they replace. Existing flat head screws can be used, however as holes are counterbored we recommend M5 x 16mm SHCS for attaching the fixture plates to existing T-nuts.

For fixture plate sets, we recommend our Plate Set Installation Tool for easier setup of multiple plates. Two SMW Fixture or Blank Pallets with 1/2" pins can also be used.

For fixture plate installation instructions see our Knowledge Base article here.

Avid 2424 Fixture Plate Set Drawing (.pdf) Avid 2424 Fixture Plate Set Solid Model (.step)
View full details
