Brother Speedio S700 Fixture Tooling Plate

Brother Speedio S700 Fixture Tooling Plate

$ 2,299.00 USD
$ 2,299.00 USD
Sale Sold out
Material
Our P/N: S1111
Recommended Add-Ons [1] 14mm T-Slot Hardware Kit (+$ 69.99 ea.)
[700] Black Fixture Plate Plugs (+$ 149.97 / plate)
Accessory Kits [1] Basic Accessory Kit (+$ 411.93 ea.)
[1] Standard Accessory Kit (+$ 963.80 ea.)
[1] Pro Accessory Kit (+$ 1,965.60 ea.)

Out of stock (see lead times below)

Product Specifications

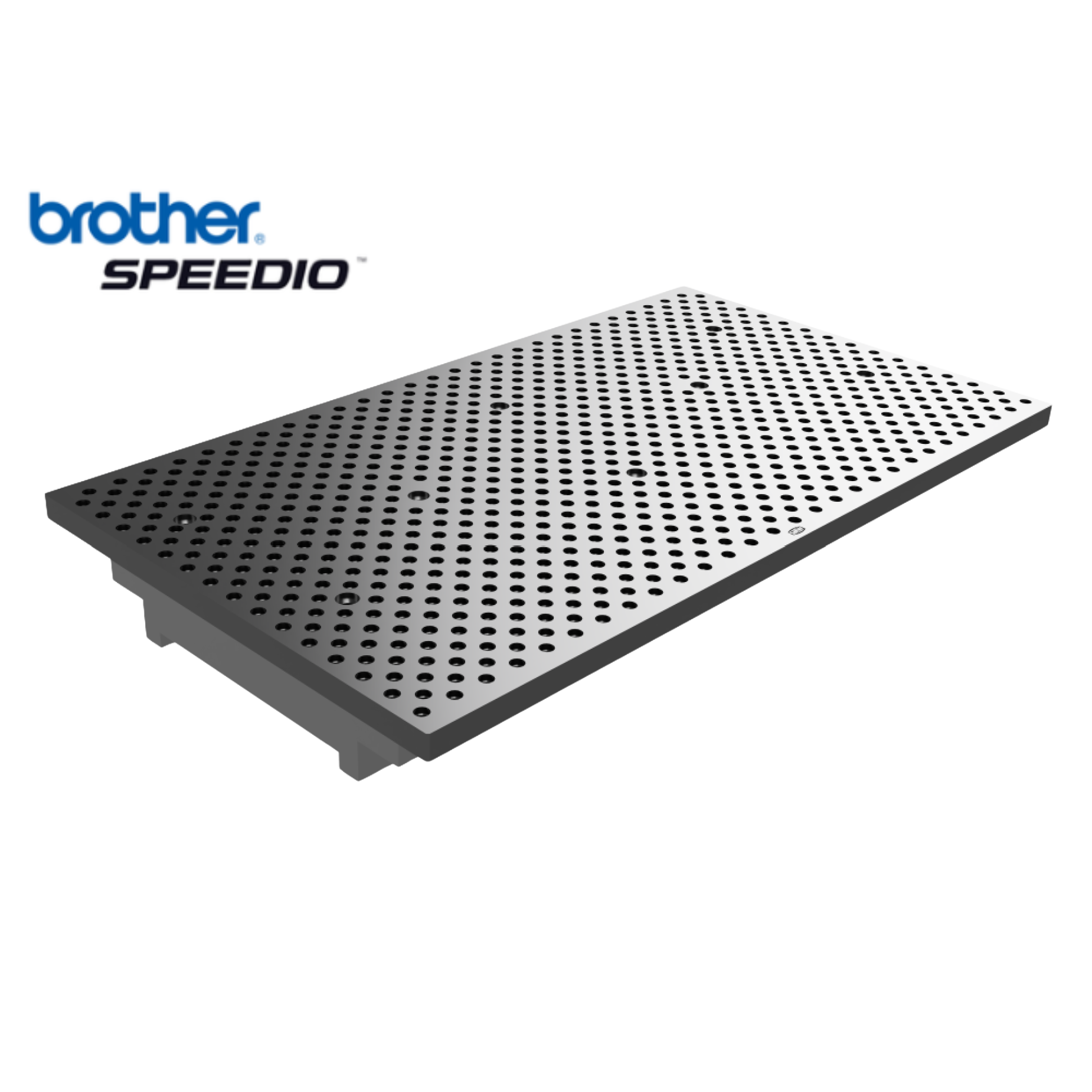

Fixture & tooling plate for Brother Speedio S700 (X1, Xd1, X2, & Xd2) CNC machines.

Measurements: 35" x 20" x 0.95".

Plate overhangs the rear of pre-Xd2 tables by 0.98" [25mm], ensure this is acceptable for your application. Plate sits flush with the rear of the table on Xd2 machines which have less clearance between table and Z-column.

Plate mounts to table with 8 M12 low profile SHCS. Mounting screws and t-nuts are available as a separate option.

Plate has 815 fixture holes that are spaced 1.25" on-center. Each fixture hole is tapped 1/2-13 UNC and bored for 0.500" pin.

Available in 4140 steel or anodized 7075 aluminum. Click here to see the benefits of each.

On-Table Weights
Variant Weight
4140 Steel 122.7lbs [55.7kg]
Ano. 7075 Aluminum 43.9lbs [19.9kg]

Lead Time

In stock plates are typically ready to ship within one business day (other items in order may affect shipping time).

Out-of-Stock Lead Times
Material Single Plate Set of 2-3 Plates Set of 4+ Plates
4140 Steel 3-4 weeks 4-5 weeks 5-6 weeks
7075 Aluminum (Anodized) 4-6 weeks 4-6 weeks 5-7 weeks
6061 Aluminum 3-4 weeks 3-4 weeks --

Please contact us for specific lead times or to inquire about time-critical orders.

Shipping

This fixture plate is shipped LTL freight. We recommend shipping to a commercial address for the best rates (freight shipping to residential addresses can be expensive). If you do not have access to a commercial address, orders can often be shipped to a local FedEx Freight terminal for pickup.

Low-profile socket head cap screws and t-nuts are available separately.  No additional installation hardware is required.

For fixture plate installation instructions see our Knowledge Base article here.

Brother S700 Fixture Plate Solid Model (.step) Brother S700 Fixture Plate Drawing (.pdf)
