Haas DM/DT-1® Tooling Plate

Haas DM/DT-1® Tooling Plate

$ 1,599.00 USD
$ 1,599.00 USD
Sale Sold out
Material
Our P/N: S1092
Recommended Add-Ons [1] 5/8" & 16mm T-Slot Hardware Kit (+$ 20.99 ea.)
[700] Black Fixture Plate Plugs (+$ 149.97 / plate)
Accessory Kits [1] Basic Accessory Kit (+$ 411.93 ea.)
[1] Standard Accessory Kit (+$ 963.80 ea.)
[1] Pro Accessory Kit (+$ 1,965.60 ea.)

3 in stock

Product Specifications

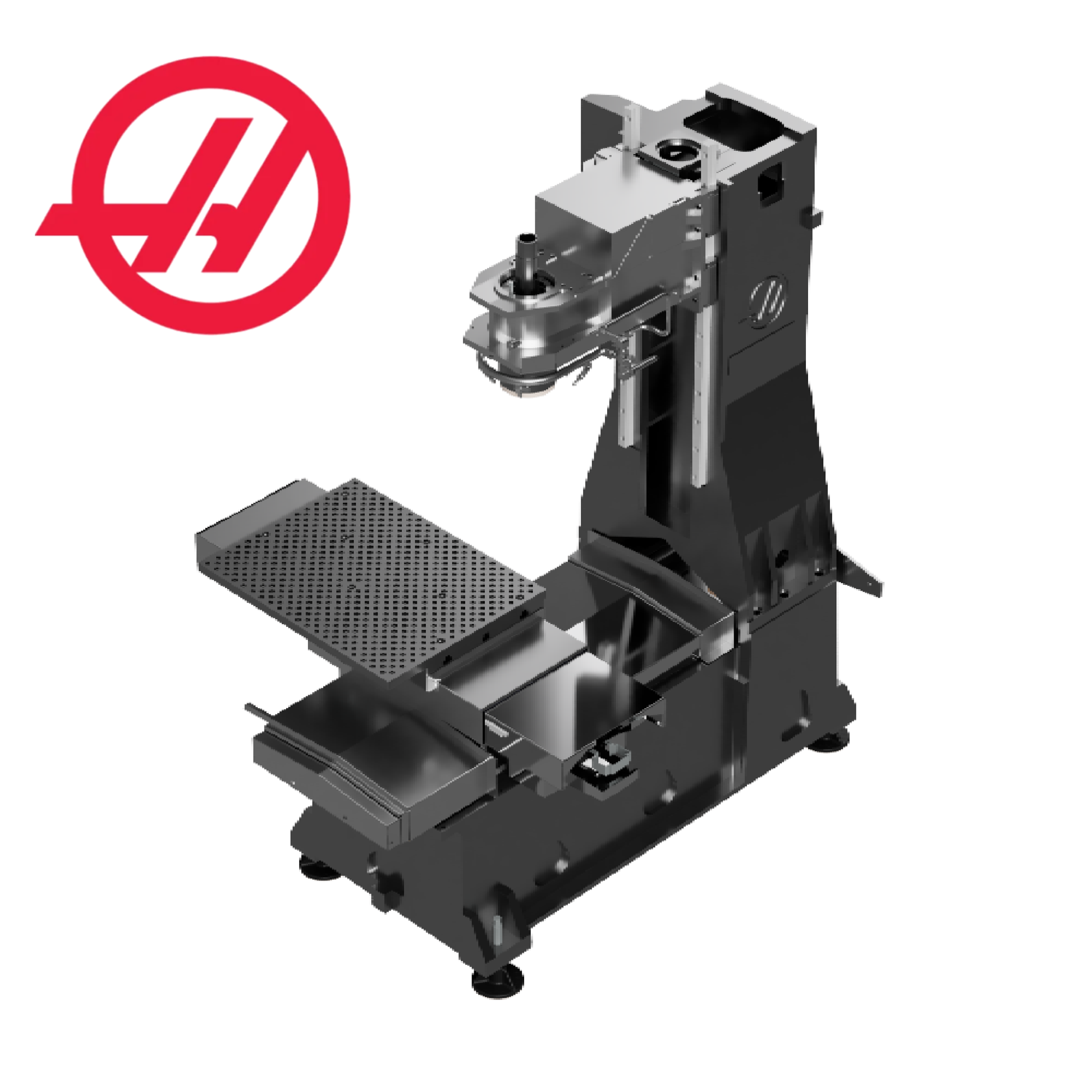

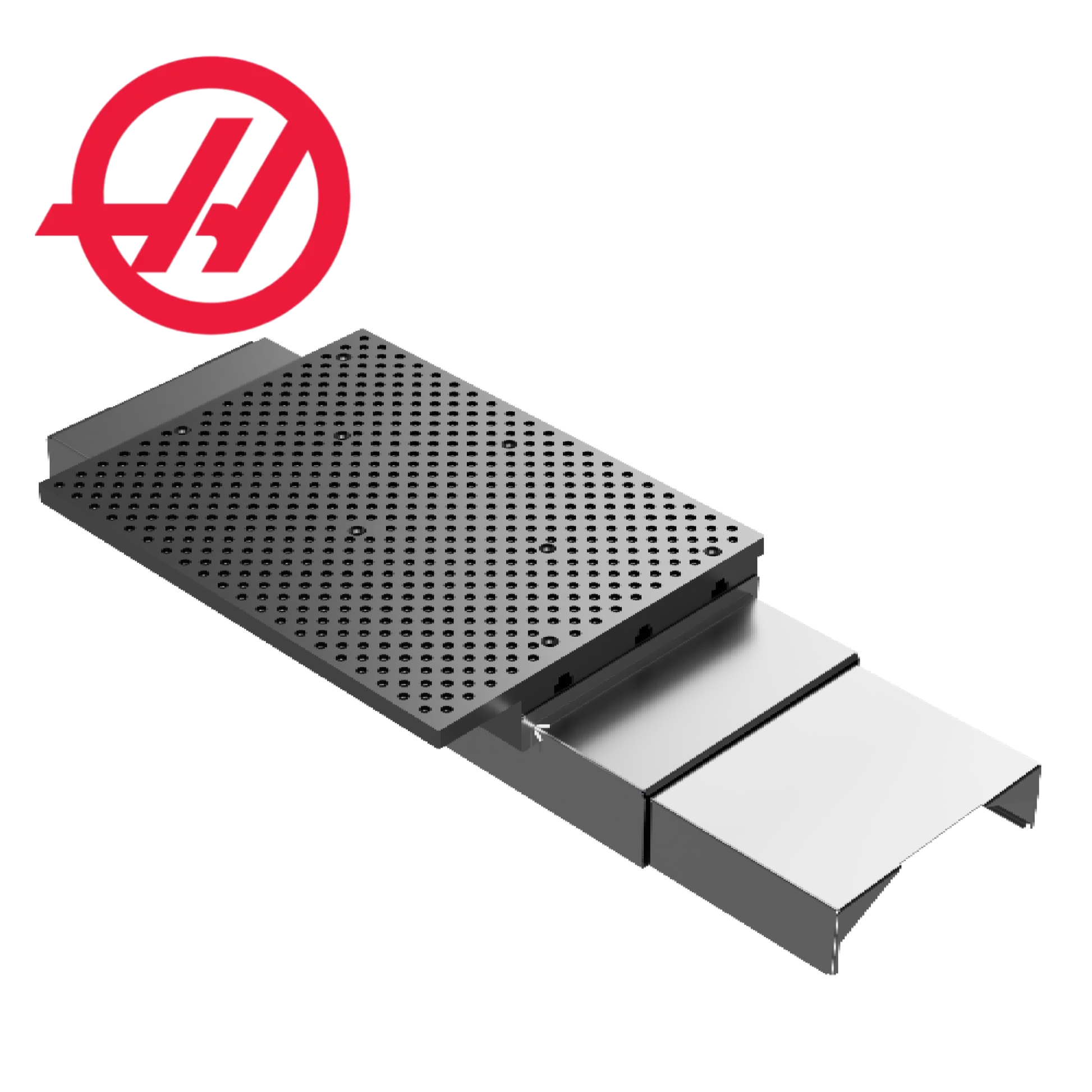

Fixture & tooling plate for Haas DM-1 and DT-1 CNC machines.

Measurements: 26" x 20" x 0.95"

Plate mounts to table with 6 low profile SHCS. Mounting screws and t-nuts are available as a separate option.

Plate has 609 fixture holes that are spaced 1.25" on-center. Each fixture hole is tapped 1/2-13 UNC and bored for 0.500" pin.

Due to the low maximum weight on table of the DT series this plate is only offered in anodized 7075 aluminum.



On-Table Weights
Variant Weight
7075 Ano. Aluminum 39.1lbs [17.7kg]

Lead Time

In stock plates are typically ready to ship within one business day (other items in order may affect shipping time).

Out-of-Stock Lead Times
Material Single Plate Set of 2-3 Plates Set of 4+ Plates
4140 Steel 3-4 weeks 4-5 weeks 5-6 weeks
7075 Aluminum (Anodized) 4-6 weeks 4-6 weeks 5-7 weeks
6061 Aluminum 3-4 weeks 3-4 weeks --

Please contact us for specific lead times or to inquire about time-critical orders.

Shipping

This fixture plate ships via standard parcel shipping (FedEx Ground or USPS Priority). For questions about additional shipping methods, please contact us.

Low-profile socket head cap screws and t-nuts are available separately.  No additional installation hardware is required.

For fixture plate installation instructions see our Knowledge Base article here.

Haas DM/DT-1 Fixture Plate Solid Model (.step) Haas DM/DT-1 Fixture Plate Drawing (.pdf)
