Haas Mini Mill Fixture Tooling Plate

Haas Mini Mill Fixture Tooling Plate

$ 2,200.00 USD
$ 2,200.00 USD
Sale Sold out
Material
Our P/N: S1232
Recommended Add-Ons [1] 5/8" & 16mm T-Slot Hardware Kit (+$ 25.39 ea.)
[800] Black Fixture Plate Plugs (+$ 174.96 / plate)
Accessory Kits [1] Basic Accessory Kit (+$ 395.93 ea.)
[1] Standard Accessory Kit (+$ 929.80 ea.)
[1] Pro Accessory Kit (+$ 1,901.60 ea.)

2 in stock

We also have the following plates in stock at a discounted price:

Product Specifications

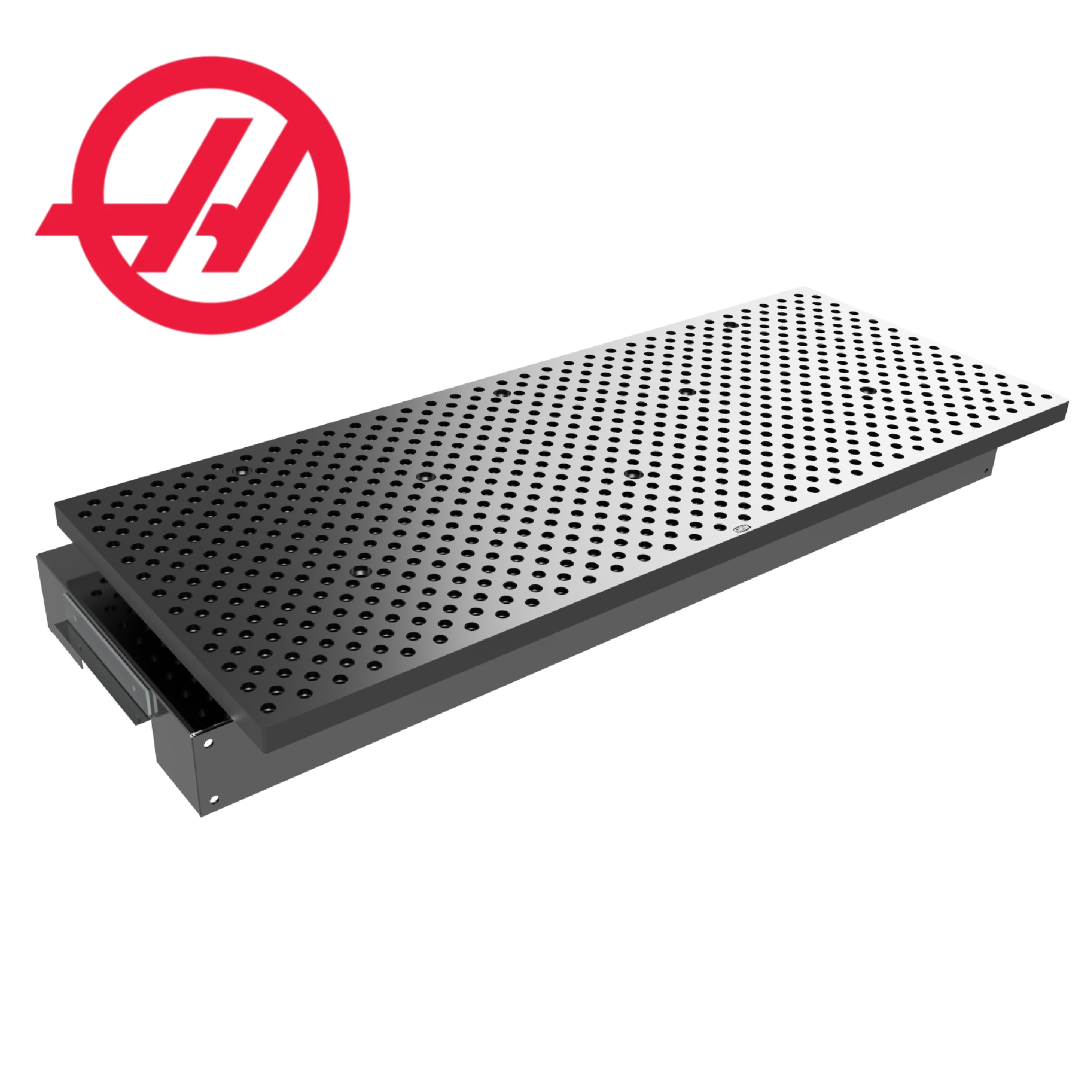

Fixture & tooling plate for Haas Mini Mill and Super Mini Mill CNC machines. This plate fits both the redesigned 2024+ machines as well as older Mini Mills.

Measurements: 40" x 16" x 0.95"

Plate mounts to table with 8 low profile SHCS. Mounting screws and t-nuts are available as a separate option.

Plate has 756 fixture holes that are spaced 1.25" on-center. Each fixture hole is tapped 1/2-13 UNC and bored for 0.500" pin.

Available in 4140 steel or anodized 7075 aluminum. Click here to see the benefits of each.

 This product is not compatible with the Mini/Super Mini Mill 2.

On-Table Weights
Variant Weight
4140 Steel 126.9lbs [57.6kg]
7075 Ano. Aluminum 50.0lbs [22.7kg]

Lead Time

  • In stock plates are typically ready to ship within one business day (other items in order may affect shipping time).
  • Out-of-stock bare aluminum and steel plates have a lead time of 3-4 weeks (steel fixture plate sets carry a 4-5 week lead time), while anodized 7075 fixture plates are 4-6 weeks.

Please contact us for specific lead times or to inquire about time-critical orders.

Shipping

This fixture plate is shipped LTL freight. We recommend shipping to a commercial address for the best rates (freight shipping to residential addresses can be expensive). If you do not have access to a commercial address, orders can often be shipped to a local FedEx Freight terminal for pickup.

Low-profile socket head cap screws and t-nuts are available separately.  No additional installation hardware is required.

Fixture Plate Installation Instructions (.pdf)
Haas Mini Mill Fixture Plate Drawing (.pdf) Haas Mini Mill Fixture Plate Solid Model (.step)
