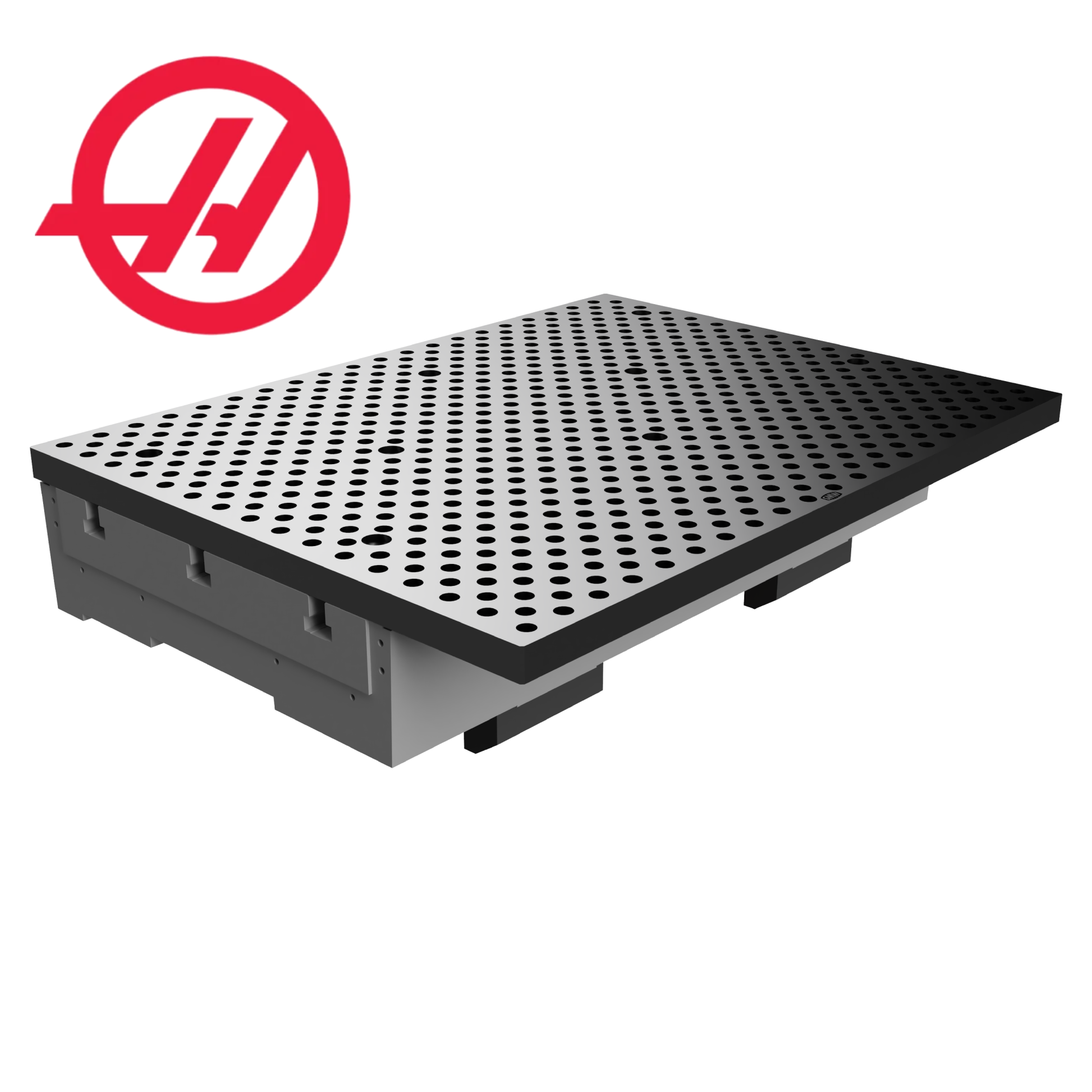

Haas VF-1® Fixture Tooling Plate

$ 1,999.00
  • Haas VF-1® Fixture Tooling Plate

Haas VF-1® Fixture Tooling Plate

$ 1,999.00
Click here to view lead times on out of stock plates.
$ 1,999.00

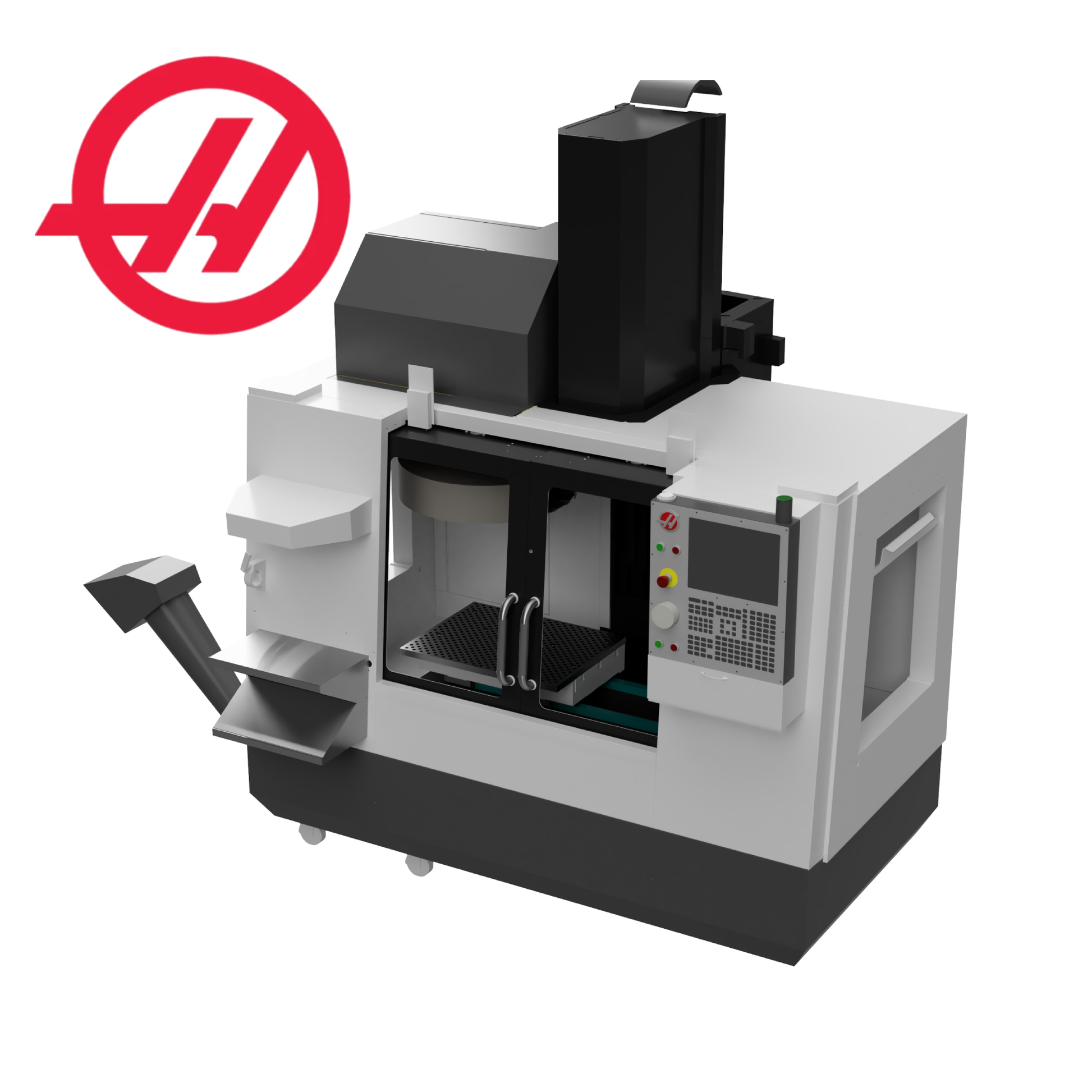

  • Fixture & tooling plate for VF-1 and VF-1SS CNC machines.

    Measurements: 26" x 20" x 0.95"

    Plate mounts to table with 8 low profile SHCS. Mounting screws and t-nuts are available as a separate option.

    Plate has 607 fixture holes that are spaced 1.25" on-center. Each fixture hole is tapped 1/2-13 UNC and bored for 0.500" pin.

    Available in 4140 steel hardened to 30 Rockwell C or anodized 7075 aluminum. Click here to see the benefits of each.



    On-Table Weights
    Variant Weight (lbs)
    4140 Steel 113.6
    7075 Ano. Aluminum 39.1

    Low-profile socket head cap screws and t-nuts are available separately.  No additional installation hardware is required.


    Current Inventory
    Variant QTY
    4140 Steel 0
    7075 Ano. Aluminum 3

    In stock plates are typically ready to ship within one business day (other items in order may affect shipping time).

    Out-of-stock SMW Fixture Plates generally have a lead time of 7-14 business days due to just-in-time manufacturing (Note: out-of-stock anodized plates have a longer lead time at up to four weeks). Please contact us for specific lead times or to inquire about time-critical orders.

    This fixture plate is shipped LTL freight. We recommend shipping to a commercial address for the best rates (freight shipping to residential addresses can be expensive).

    If you do not have access to a commercial address, orders can often be shipped to a local FedEx Freight terminal for pickup.
