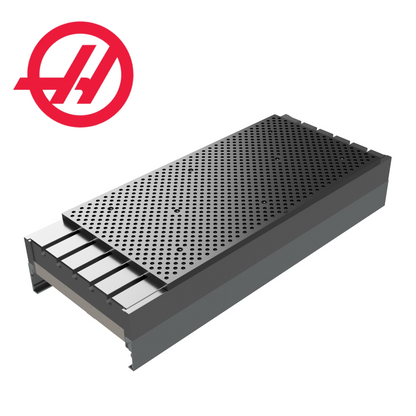

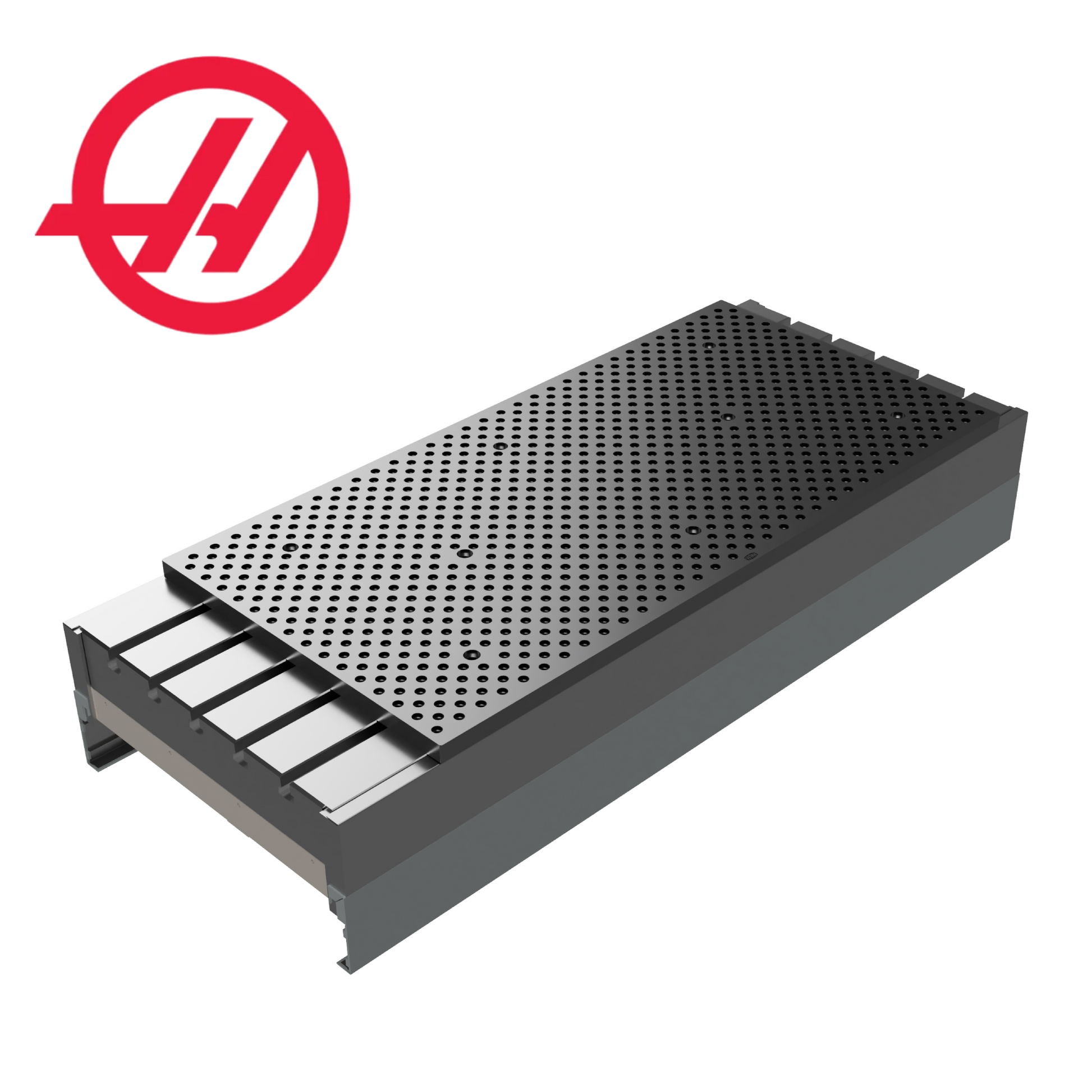

Fixture & tooling plate for Haas VF-3 and VF-3SS CNC machines.
Measurements: 40" x 20". Steel plates are 0.85" thick, aluminum plates are 0.95" thick.
Plate mounts to table with 8 low profile SHCS. Mounting screws and t-nuts are included.
Plate has 975 fixture holes that are spaced 1.25" on-center. Each fixture hole is tapped 1/2-13 UNC and bored for 0.500" pin.
Available in 4140 steel hardened to 30 Rockwell C or anodized 7075 aluminum. Click here to see the benefits of each.
|7075 Ano. Aluminum||61.9|
Product includes low profile bolts and t-nuts. No additional accessories are required.
|7075 Ano. Aluminum||2|
In stock plates are typically ready to ship within one business day (other items in order may affect shipping time).
Out-of-stock SMW Fixture Plates generally have a lead time of 7-10 business days due to just-in-time manufacturing (Note: out-of-stock anodized plates have a longer lead time at up to four weeks). Please contact us for specific lead times or to inquire about time-critical orders.
If you do not have access to a commercial address, orders can often be shipped to a local FedEx Freight terminal for pickup.
