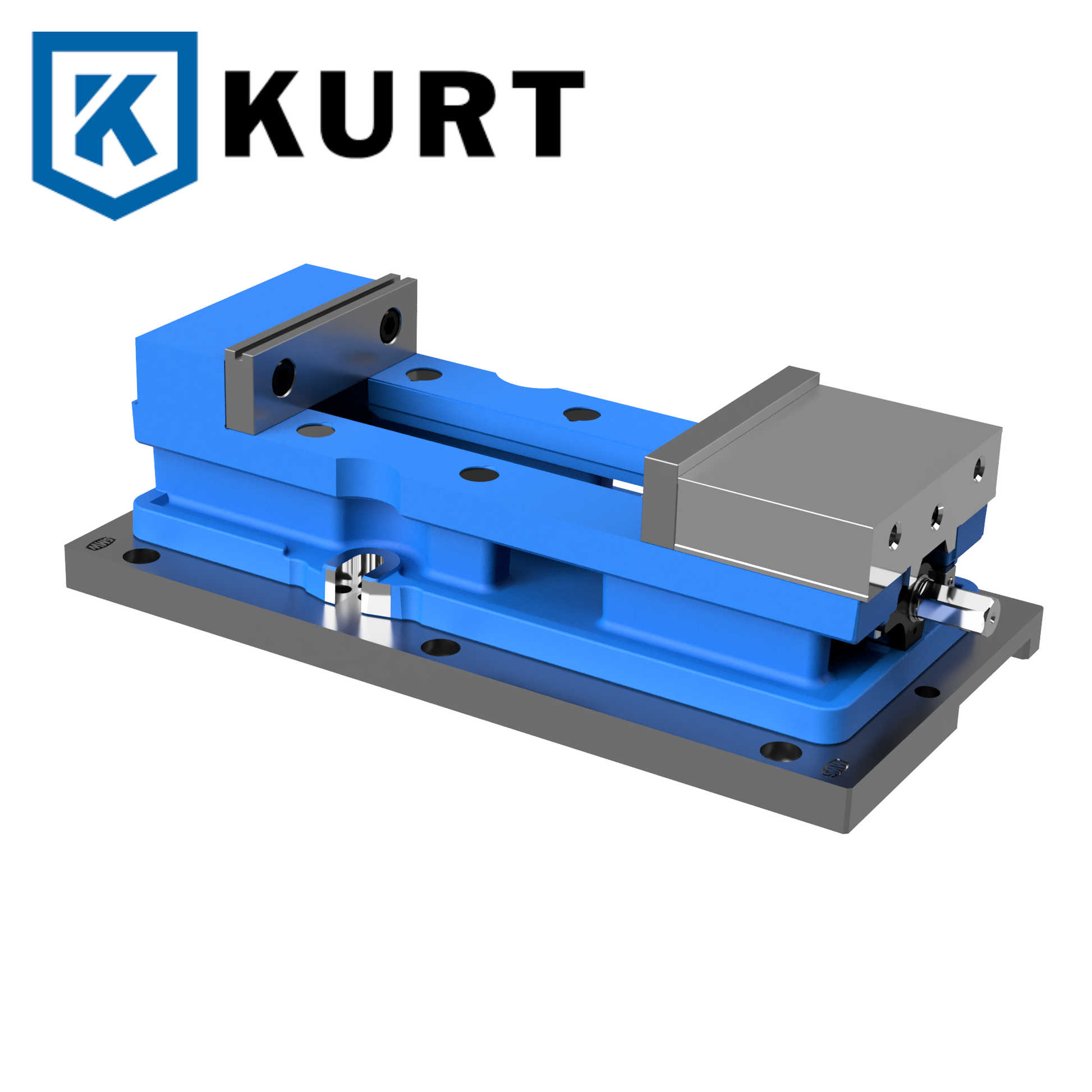

This anodized aluminum subplate allows adapting most 6" Kurt single- and dual-station vises to a 1/2" SMW Fixture Plate.

Measurements: 18" x 9" x 0.95"

Subplate mounts to a fixture plate with 6 low profile 1/2-13 SHCS and optionally aligns using two 1/2" fixturing pins. Subplate mounting screws and pins are available as a separate option - hardware for mounting your specific vise is user-supplied.

Compatible with the following 6" Kurt Vises (Including Haas Workholding By Kurt vises):

• 3600 Series
  • 3600V
  • 3600V-INT
  • 3610V
  • 3620V
  • 3630V
• DX Series
  • DX6 & HKDX6
  • DX6M & HKDX6M
  • DX6R
  • XL6*
  • XL6R*
• HD Series
  • HD690
  • HD690CS
  • HDM690
  • HD691
  • HDM691
  • HDL6 & HKHDL6**
  • HDLM6 & HKHDLM6**
• Self-Centering Vises
  • SCD640*
• TL Series
  • TL6CS**
  • TL6SCS**
  • TL6HCS**

*These vises will overhang the front/rear of the subplate.
**These vises will require step/strap clamps to secure the vise to the subplate. Vises will also overhang the front/rear of the subplate.

Vises shown in photos not included.
