Makera Carvera Air Fixture Tooling Plate

Makera Carvera Air Fixture Tooling Plate

$ 249.00 USD
$ 249.00 USD
Sale Sold out
Hole Pattern
Our P/N: S1989
Accessory Kits

12 in stock

Product Specifications

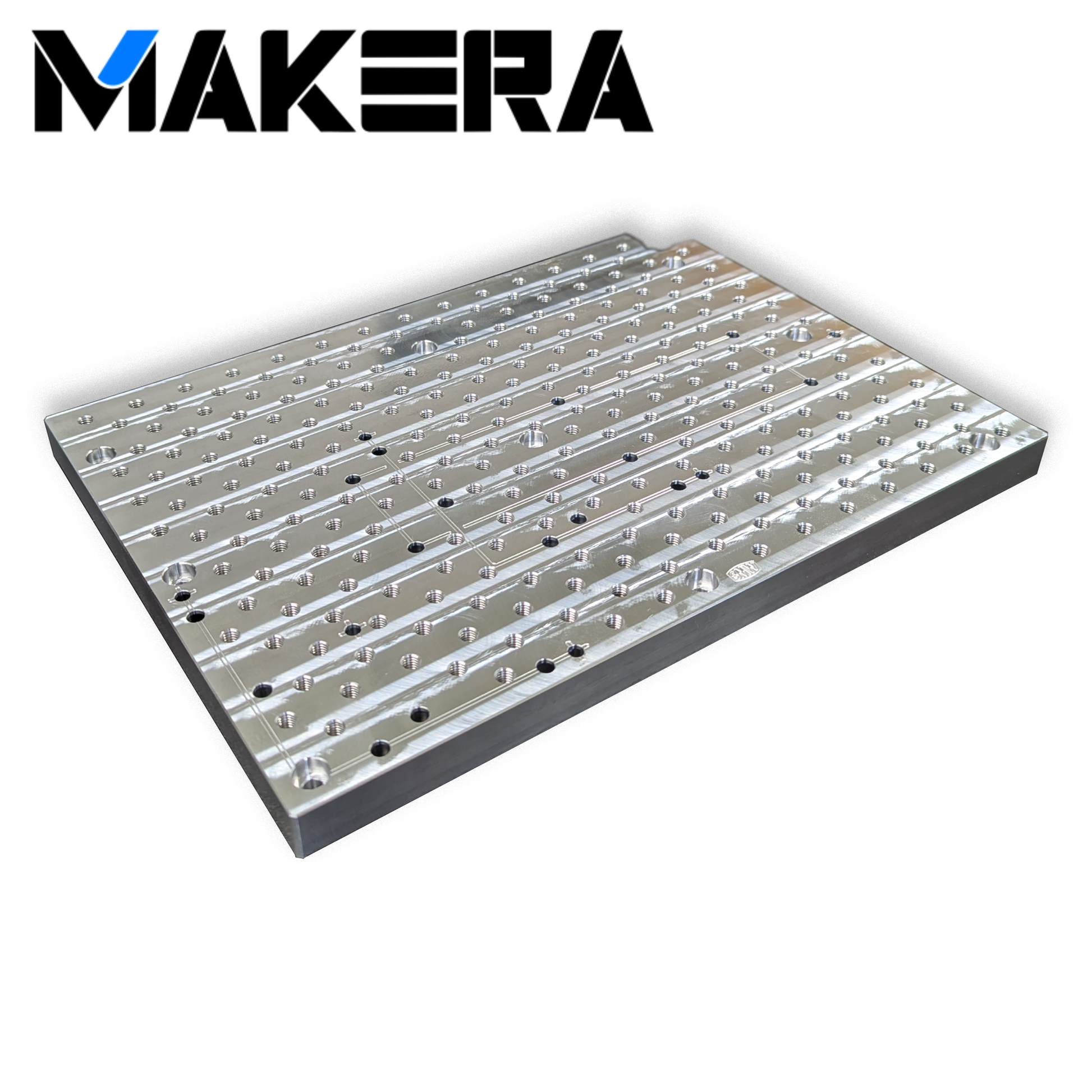

12.05" x 8.74" x 0.70" [306 x 222 x 17.8mm] 6061 Aluminum Fixture & Tooling Plate for Makera Carvera Air Desktop CNC Machines. Not compatible with the standard Carvera.

This fixture plate retains the 4mm alignment pin locations by installing over the standoffs in the Air's bed. Pins can then be installed as usual by passing them through the holes in the fixture plate (engraved with a '+' for easy identification). The plate has threaded M5 holes for using Makera's 4th axis and L-bracket accessories in addition to our 1/4" or M6 hole pattern.

INCH PLATES: Holes are 0.75" on center.  Every hole is tapped 1/4"-20.

METRIC PLATES: Holes are 20mm on center.  Every hole is tapped M6.

To install the plate the existing MDF bed will need to be removed, at which point our fixture plate mounts using the socket head screws removed from the MDF bed. 8mm standoffs for 4mm locating pins can remain in place.

NOTE: If you are machining conductive materials, you must cover the circuit board contacts before installing the fixture plate (see last image). Otherwise metal chips may fall through the fixture plate holes and cause a short. We recommend covering with hot glue, electrical tape, or installing set screws in the fixture plate to block the holes above the circuit board. You can also 3D-print our fixture plate plugs here.

On-Table Weights
Variant Weight
1/4" 6.3lbs [2.8kg]
M6 6.2lbs [2.8kg]

Lead Time

In stock plates are typically ready to ship within one business day (other items in order may affect shipping time).

Out-of-Stock Lead Times
Material Single Plate Set of 2-3 Plates Set of 4+ Plates
4140 Steel 7-8 weeks 8-9 weeks 9-11 weeks
7075 Aluminum (Anodized) 7-8 weeks 7-8 weeks 7-8 weeks
6061 Aluminum 4-5 weeks 4-5 weeks --

Please contact us for specific lead times or to inquire about time-critical orders.

Shipping

This fixture plate ships via standard parcel shipping (FedEx Ground or USPS Priority). For questions about additional shipping methods, please contact us.

This plate reuses existing mounting hardware, so no additional items are needed for installation. NOTE: If you are machining conductive materials, you must cover the circuit board contacts before installing the fixture plate. Otherwise metal chips may fall through the fixture plate holes and cause a short. We recommend covering with hot glue, electrical tape, or installing set screws in the fixture plate to block the holes above the circuit board.

For fixture plate installation instructions see our Knowledge Base article here.

Makera Carvera Air 1/4" Fixture Plate Solid Model (.step) Makera Carvera Air M6 Fixture Plate Solid Model (.step) Makera Carvera Air Fixture Plate Drawing (.pdf)
