Makera Z1 Fixture Tooling Plate

Makera Z1 Fixture Tooling Plate

$ 175.00 USD
$ 175.00 USD
Sale Sold out
Hole Pattern
Our P/N: S2180
Accessory Kits [1] Accessory Kit (+$ 245.94 ea.)

Out of stock

Product Specifications

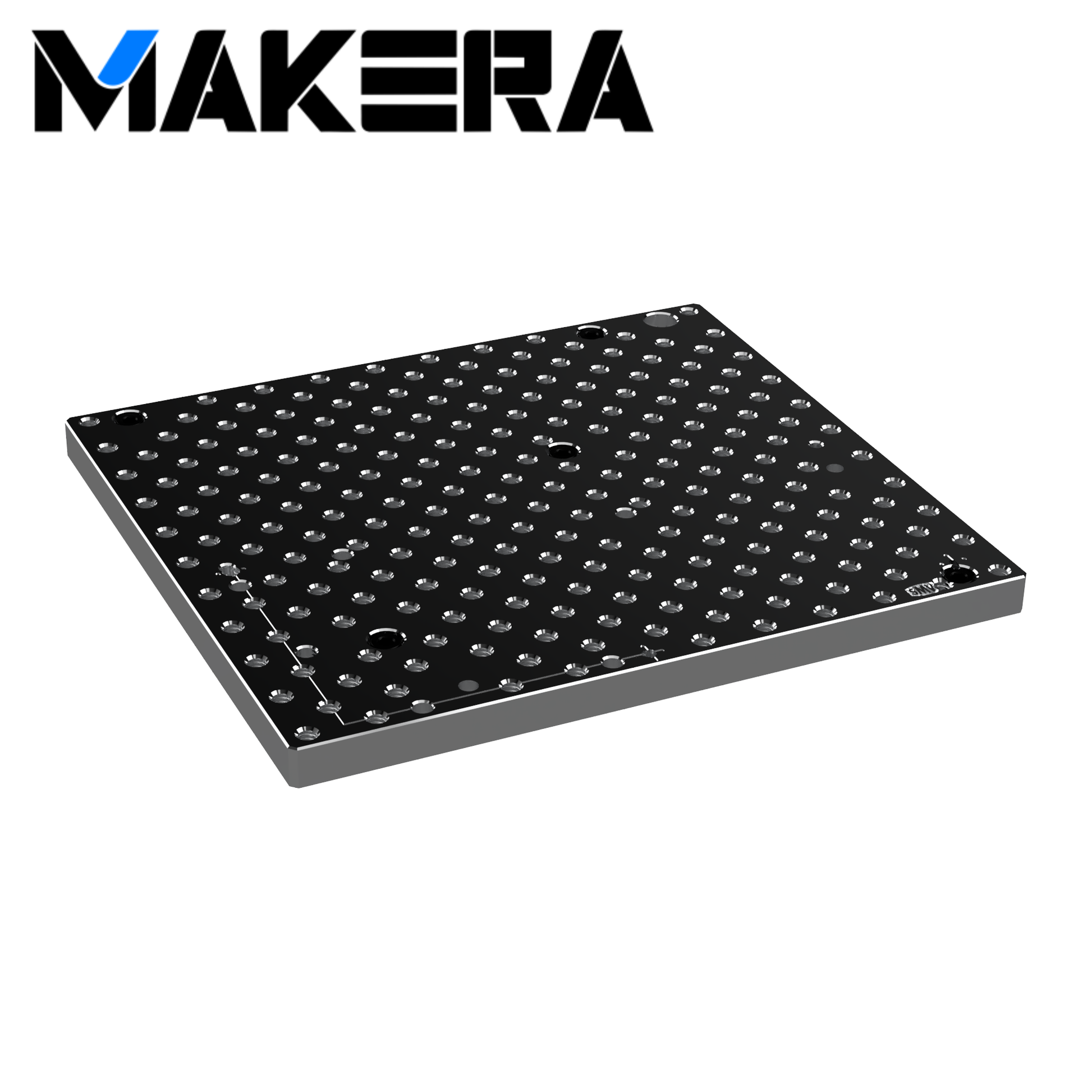

6061 Aluminum Fixture & Tooling Plate for Makera Z1 Desktop CNC Machines.

Measurements: 8.78" x 7.95" x 0.48" [223mm x 202mm x 12.2mm]

This plate mounts directly to the Z1's bed using the existing M5 threaded holes and hardware. Plate is compatible with the Makera 4th axis unit and L-bracket. 4mm alignment pins install into our fixture plate, while M5 screws pass through the plate and use the threaded locations in the Z1 bed.

INCH PLATES: Holes are 0.75" on center.  Every hole is tapped 1/4"-20.

METRIC PLATES: Holes are 20mm on center.  Every hole is tapped M6.

Coming soon! We are producing our first batch of plates for customer who filled out our presale form and are expecting inventory available for purchase shortly.

On-Table Weights
Variant Weight
1/4" 6.3lbs [2.8kg]
M6 6.2lbs [2.8kg]

Lead Time

In stock plates are typically ready to ship within one business day (other items in order may affect shipping time).

Out-of-Stock Lead Times
Material Single Plate Set of 2-3 Plates Set of 4+ Plates
4140 Steel 7-8 weeks 8-9 weeks 9-11 weeks
7075 Aluminum (Anodized) 4-6 weeks 5-7 weeks 6-8 weeks
6061 Aluminum 4-5 weeks 4-5 weeks --

Please contact us for specific lead times or to inquire about time-critical orders.

Shipping

This fixture plate ships via standard parcel shipping (FedEx Ground or USPS Priority). For questions about additional shipping methods, please contact us.

We recommend (5) 18mm long M5 socket head screws for installing the fixture plate. See installation instructions under CAD Files & Resources for which screws included with your machine can be used.

For fixture plate installation instructions see our Knowledge Base article here.

Makera Z1 Fixture Plate Installation Instructions (.pdf) Makera Z1 Fixture Plate Solid Model (.step) Makera Z1 Fixture Plate Drawing (.pdf)
