Fixture Plate Starter Kits
SMW now offers flexible starter kits for our fixture plate line, with the aim of getting machinists at any level making parts as soon as they get their fixture plate set up. Starter Kits are fully customizable to meet your needs! To view options, click here.

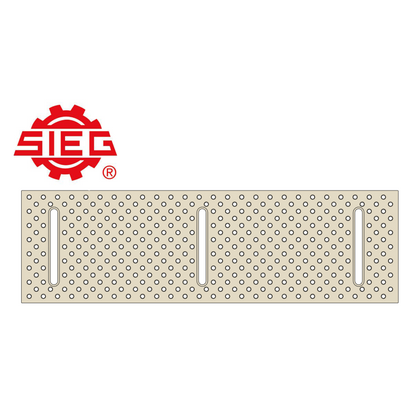

19.95" x 5.95" x 0.60" 6061 Aluminum Fixture & Tooling Plate for SIEG X3 mills. Plate comes with mounting slot to maximize compatibility and placement options.
INCH: Holes are 0.75" on center. Every hole is tapped 1/4"-20.
METRIC: Holes are 20mm on center. Every hole is tapped M6.
NOTE: when bare aluminum plates are installed on a non-aluminum surface such as a bare machine table these plates must be used with a galvanic corrosion inhibitor (e.g. dielectric spark plug grease) and be removed periodically to inspect for condition and/or re-apply the corrosion inhibitor. We recommend doing this every three months.
Note: Hardware not included. Designed for use with low profile socket head cap screws (SHCS) and T-Nuts according to your machine table. Please see drawing above for specific slot sizes to determine appropriate mounting hardware. Adapter washers are available separately for machines with smaller t-nuts. Plate does not contain locating bores for 1/4" dowel pins.
For information and video demos on how to setup, install, access CAD models, and other tips and tricks, visit the FAQ page!
For downloads, please view the Universal Fixture Plate product page.
