Universal Aluminum Fixture Tooling Plate

Universal Aluminum Fixture Tooling Plate

$ 169.99 USD
$ 169.99 USD
Sale Sold out
Hole Pattern
Size
Our P/N: S1300
Accessory Kits [1] Accessory Kit (+$ 231.94 ea.)

17 in stock

Product Specifications

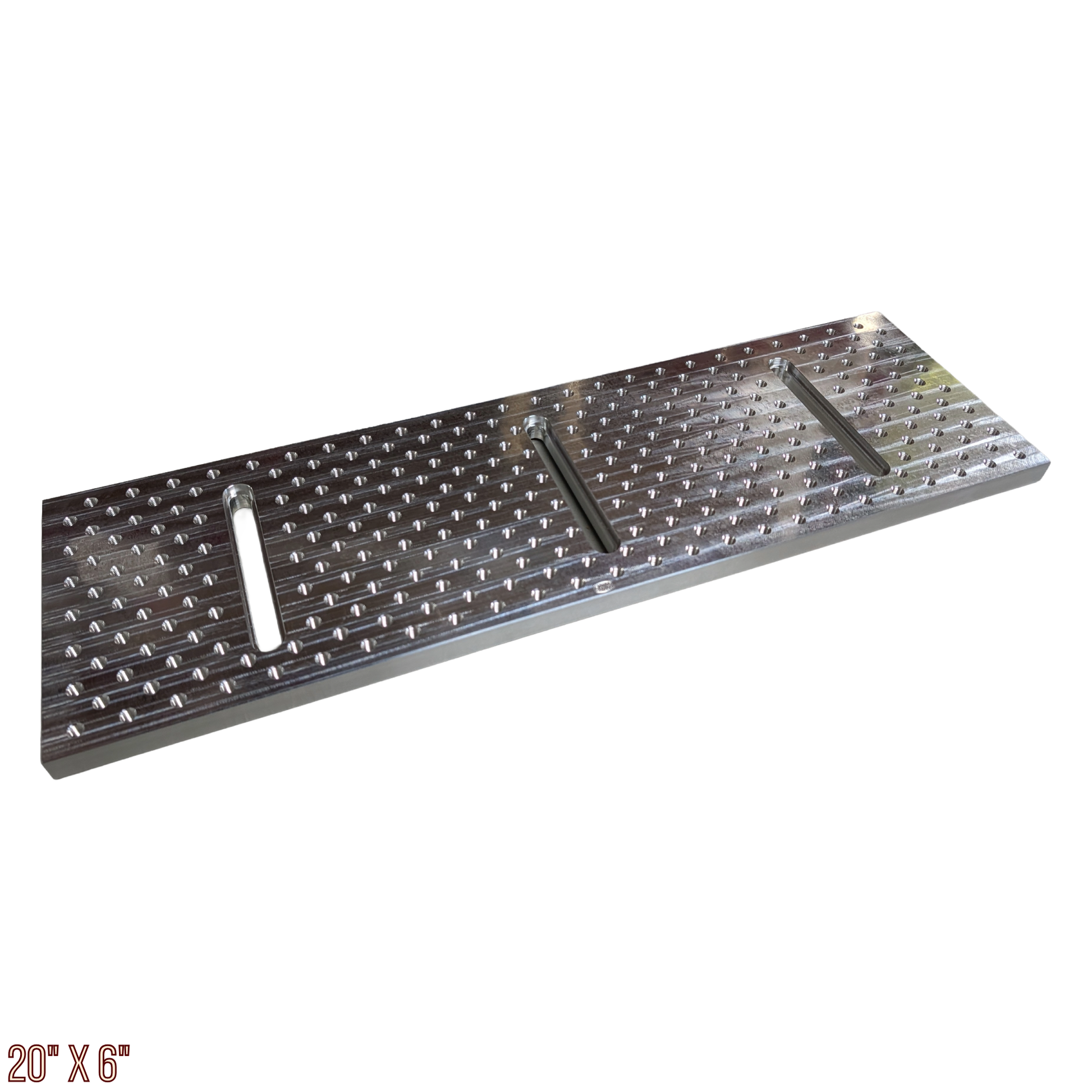

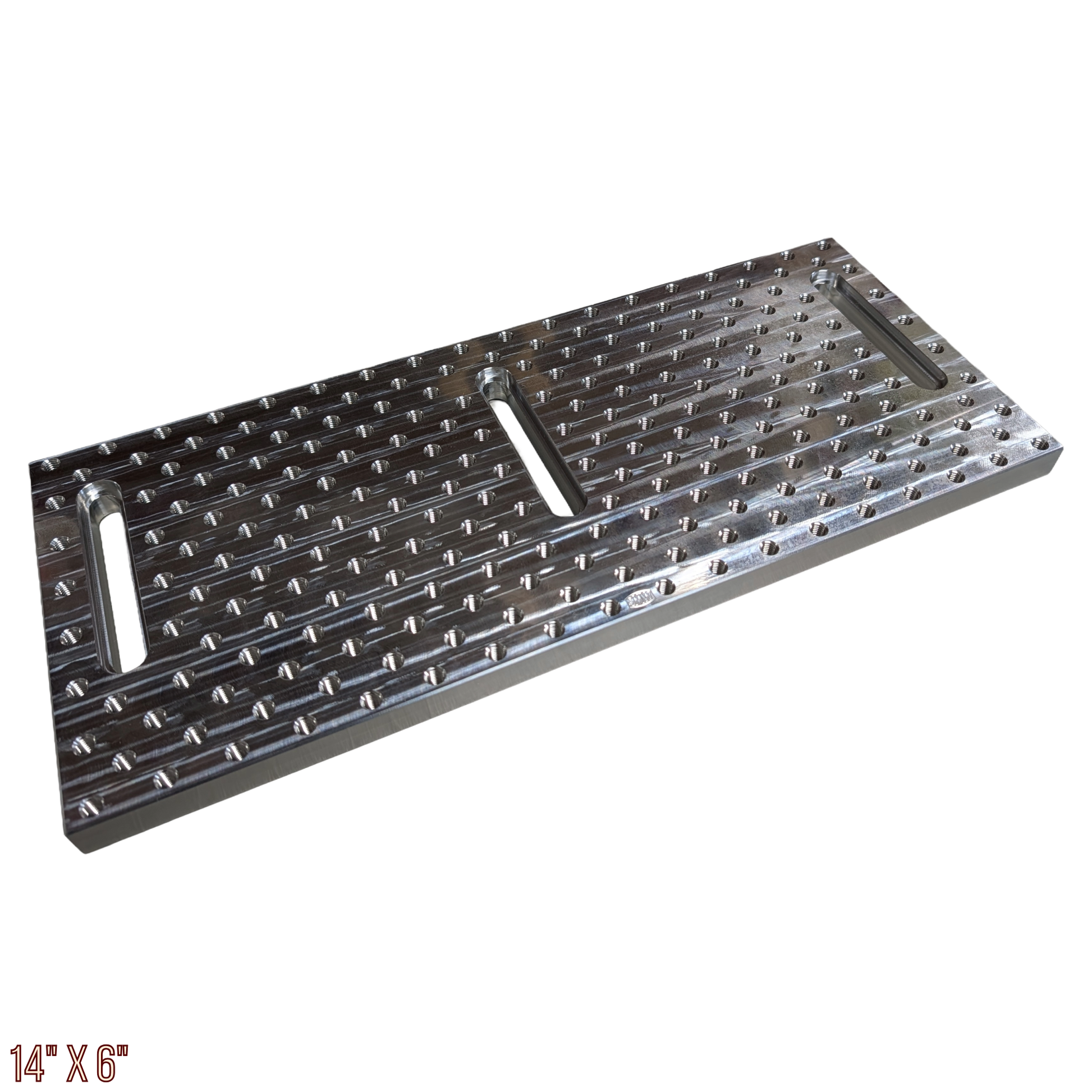

14" x 6" x 0.60" and 20" x 6" x 0.60" 6061 Aluminum Fixture & Tooling Plate with mounting slot to maximize compatibility and placement options.

INCH: Holes are 0.75" on center.  Every hole is tapped 1/4"-20.

METRIC: Holes are 20mm on center. Every hole is tapped M6.

Note: Hardware not included. Designed for use with low profile socket head cap screws (SHCS) and T-Nuts according to your machine table. Please see drawing for specific slot sizes to determine appropriate mounting hardware. Adapter washers are available separately for machines with smaller t-nuts.

Bare aluminum plates require a corrosion inhibitor (available here) if being mounted on a bare steel surface. Read more on our Knowledge Base.

Lead Time

In stock plates are typically ready to ship within one business day (other items in order may affect shipping time).

Out-of-Stock Lead Times
Material Single Plate Set of 2-3 Plates Set of 4+ Plates
4140 Steel 3-4 weeks 4-5 weeks 5-6 weeks
7075 Aluminum (Anodized) 4-6 weeks 4-6 weeks 5-7 weeks
6061 Aluminum 3-4 weeks 3-4 weeks --

Please contact us for specific lead times or to inquire about time-critical orders.

Shipping

This fixture plate ships via standard parcel shipping (FedEx Ground or USPS Priority). For questions about additional shipping methods, please contact us.

Hardware not included. Designed for use with low profile socket head cap screws (SHCS) and T-Nuts according to your machine table. Please see drawing for specific slot sizes to determine appropriate mounting hardware. Adapter washers are available separately for machines with smaller t-nuts.

For fixture plate installation instructions see our Knowledge Base article here.

Bare aluminum plates require a corrosion inhibitor (available here) if being mounted on a bare steel surface. Read more on our Knowledge Base.
Universal Fixture Plate Solid Models (.step) Universal Fixture Plates Drawing (.pdf)
