Avid Benchtop 2436 Aluminum Fixture Tooling Plate Set

Avid Benchtop 2436 Aluminum Fixture Tooling Plate Set

$ 1,699.00 USD
$ 1,699.00 USD
Sale Sold out
Material
Our P/N: S1228
Recommended Add-Ons [1] Fixture Plate Set Installation Tool (+$ 24.99 ea.)
[1200] Black Fixture Plate Plugs (+$ 249.96 / plate set)
Accessory Kits [1] Basic Accessory Kit (+$ 411.93 ea.)
[1] Standard Accessory Kit (+$ 963.80 ea.)
[1] Pro Accessory Kit (+$ 1,965.60 ea.)

1 in stock

Product Specifications

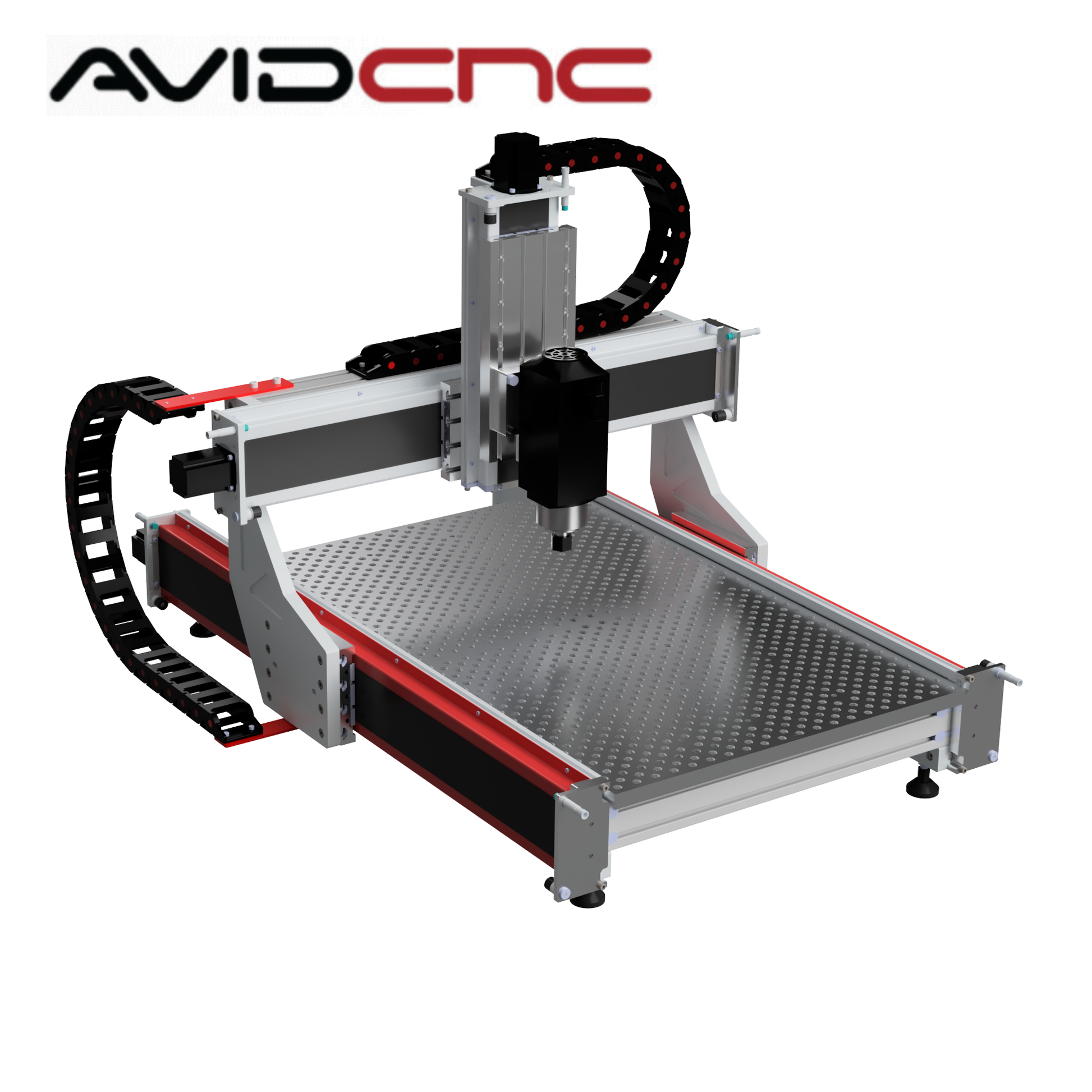

Fixture & tooling plate for Avid Benchtop Standard and Benchtop PRO CNC routers.

Measurements: 25" x 40" x 0.92" overall (QTY2 identical 25" x 20" plates).

Each plate mounts to the router bed with QTY10 M5 SHCS if mounting directly to router crossmembers or up to QTY15 if mounting on top of t-slotted bed. Mounting screws and t-nuts are not included.

Each plate has 590 fixture holes (1,180 total) that are spaced 1.25" on-center. Each fixture hole is tapped 1/2-13 UNC and bored for 0.500" pin.

Available in 6061 aluminum.

On-Table Weights
Variant Weight
6061 Aluminum 75.4lbs [34.2kg]

Lead Time

In stock plates are typically ready to ship within one business day (other items in order may affect shipping time).

Out-of-Stock Lead Times
Material Single Plate Set of 2-3 Plates Set of 4+ Plates
4140 Steel 7-8 weeks 8-9 weeks 9-11 weeks
7075 Aluminum (Anodized) 4-6 weeks 5-7 weeks 6-8 weeks
6061 Aluminum 4-5 weeks 4-5 weeks --

Please contact us for specific lead times or to inquire about time-critical orders.

Shipping

This fixture plate ships via standard parcel shipping (FedEx Ground or USPS Priority). For questions about additional shipping methods, please contact us.

Mounting hardware not included. Plates are designed to utilize the same mounting locations as the sections of aluminum extrusion they replace. We recommend M5 x 16mm SHCS for attaching the fixture plates to existing T-nuts.

For fixture plate sets, we recommend our Plate Set Installation Tool for easier setup of multiple plates. Two SMW Fixture or Blank Pallets with 1/2" pins can also be used.

For fixture plate installation instructions see our Knowledge Base article here.

Avid 2436 Fixture Plate Solid Model (.step) Avid 2436 Fixture Plate Drawing (.pdf)
