Brother Speedio S1000X1 Steel Fixture Tooling Plate

$ 2,400.00
  • Brother Speedio S1000X1 Steel Fixture Tooling Plate

Brother Speedio S1000X1 Steel Fixture Tooling Plate

$ 2,400.00
$ 2,400.00

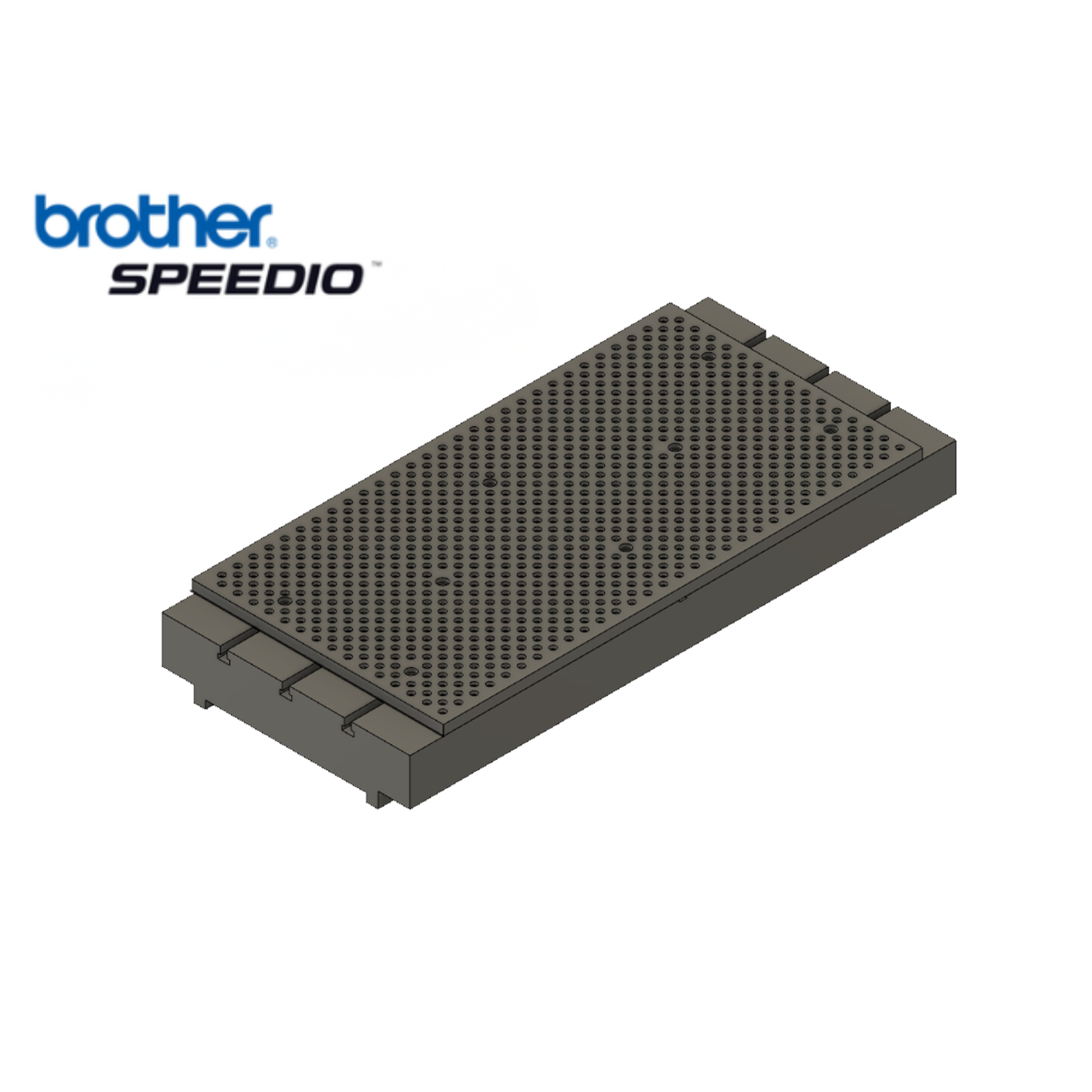

  • Fixture & tooling plate for Brother Speedio S1000X1 CNC machines.

    Measurements: 40" x 20" x 0.85"

    Plate mounts to table with 8 M12 low profile SHCS. Mounting screws and t-nuts are available as a separate option.

    Plate has 975 fixture holes that are spaced 1.25" on-center. Each fixture hole is tapped 1/2-13 UNC and bored for 0.500" pin.

    Available in 4140 steel.

    On-Table Weights
    Variant Weight (lbs)
    Inch 155.5

    Low-profile socket head cap screws and t-nuts are available separately.  No additional installation hardware is required.

    Current Inventory
    Variant QTY
    Inch 0

    In stock plates are typically ready to ship within one business day (other items in order may affect shipping time).

    Out-of-stock bare aluminum and steel plates have a lead time of 3-4 weeks (steel fixture plate sets carry a 4-5 week lead time), while anodized 7075 fixture plates are 4-6 weeks. Please contact us for specific lead times or to inquire about time-critical orders.

    This fixture plate is shipped LTL freight. We recommend shipping to a commercial address for the best rates (freight shipping to residential addresses can be expensive).

    If you do not have access to a commercial address, orders can often be shipped to a local FedEx Freight terminal for pickup.
