Doosan DNM 5700 Fixture Tooling Plate Set

Doosan DNM 5700 Fixture Tooling Plate Set

$ 3,999.00 USD
$ 3,999.00 USD
Sale Sold out
Material
Our P/N: S1108
Recommended Add-Ons [1] 11/16" & 18mm T-Slot Hardware Kit (+$ 86.29 ea.)
[1] Fixture Plate Set Installation Tool (+$ 24.99 ea.)
[1700] Black Fixture Plate Plugs (+$ 349.95 / plate set)
Accessory Kits [1] Basic Accessory Kit (+$ 395.93 ea.)
[1] Standard Accessory Kit (+$ 929.80 ea.)
[1] Pro Accessory Kit (+$ 1,901.60 ea.)

Out of stock (see lead times below)

Product Specifications

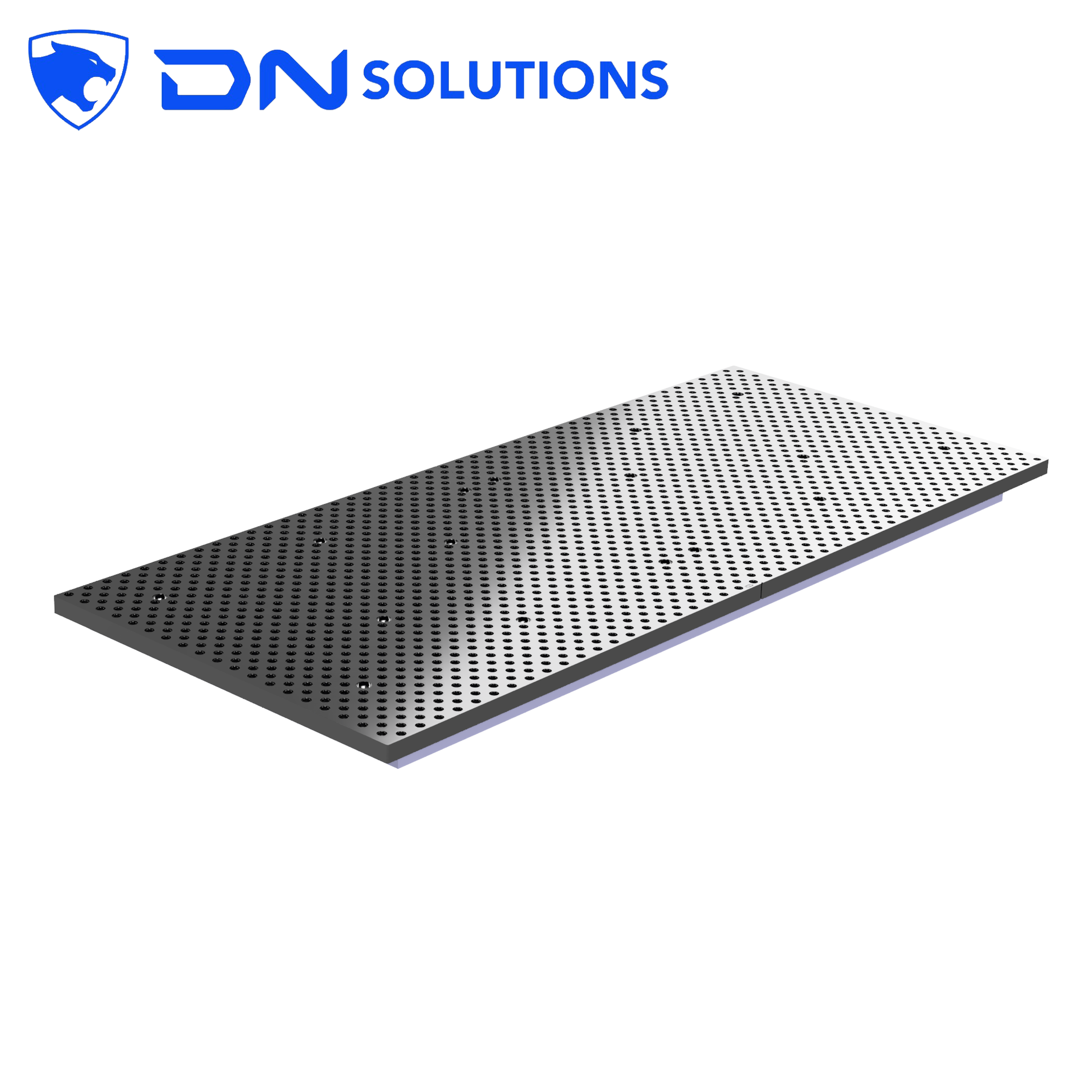

Fixture & tooling plate set for Doosan (DN Solutions) DNM 5700 and 5700S CNC machines.

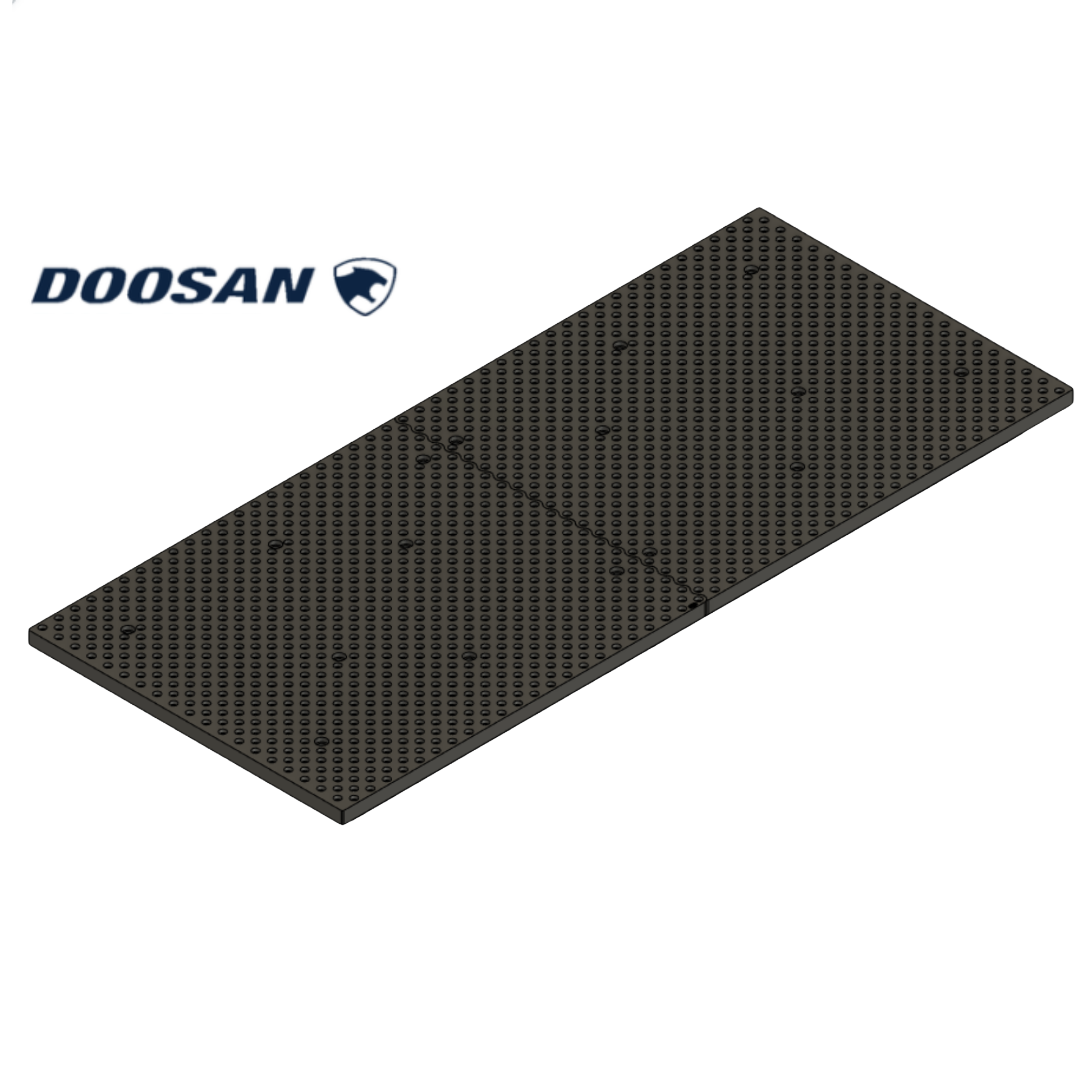

Measurements: 55.75" x 24" x 0.95" (set of two ~28" x 24" plates). Featuring our new Pattern Interlock plates, ensuring no fixturing holes are lost at the plate seam!

Each plate mounts to table with 8 low profile SHCS (16 total). Mounting screws and t-nuts are available as a separate option.

Set has 1,656 fixture holes that are spaced 1.25" on-center. Each fixture hole is tapped 1/2-13 UNC and bored for 0.500" pin.

Available in 4140 steel or anodized 7075 aluminum. Click here to see the benefits of each.

On-Table Weights
Variant Weight
4140 Steel 261.3lbs [118.5kg]
7075 Ano. Aluminum 100.7lbs [45.7kg]

Lead Time

  • In stock plates are typically ready to ship within one business day (other items in order may affect shipping time).
  • Out-of-stock bare aluminum and steel plates have a lead time of 3-4 weeks (steel fixture plate sets carry a 4-5 week lead time), while anodized 7075 fixture plates are 4-6 weeks.

Please contact us for specific lead times or to inquire about time-critical orders.

Shipping

This fixture plate is shipped LTL freight. We recommend shipping to a commercial address for the best rates (freight shipping to residential addresses can be expensive). If you do not have access to a commercial address, orders can often be shipped to a local FedEx Freight terminal for pickup.

Low-profile socket head cap screws and t-nuts are available separately.  No additional installation hardware is required.

For fixture plate sets, we recommend our Plate Set Installation Tool for easier setup of multiple plates. Two SMW Fixture or Blank Pallets with 1/2" pins can also be used.

Fixture Plate Installation Instructions (.pdf)
Doosan DNM5700 Fixture Plate Set Solid Model (.step) Doosan DNM5700 Fixture Plate Set Drawing (.pdf)
