Haas VM-3 Fixture Tooling Plate Set

$ 3,999.00
  • Haas VM-3 Fixture Tooling Plate Set

Haas VM-3 Fixture Tooling Plate Set

$ 3,999.00
Click here to view lead times on out of stock plates.
$ 3,999.00
[1] 5/8" & 16mm T-Slot Hardware Kit (+$ 25.39 ea.)
[1] Fixture Plate Set Installation Tool (+$ 24.99 ea.)
[1800] Black Fixture Plate Plugs (+$ 374.94 / plate)

[1] Basic Accessory Kit [+$ 395.93 ea.]
[1] Standard Accessory Kit [+$ 929.80 ea.]
[1] Pro Accessory Kit [+$ 1,901.60 ea.]

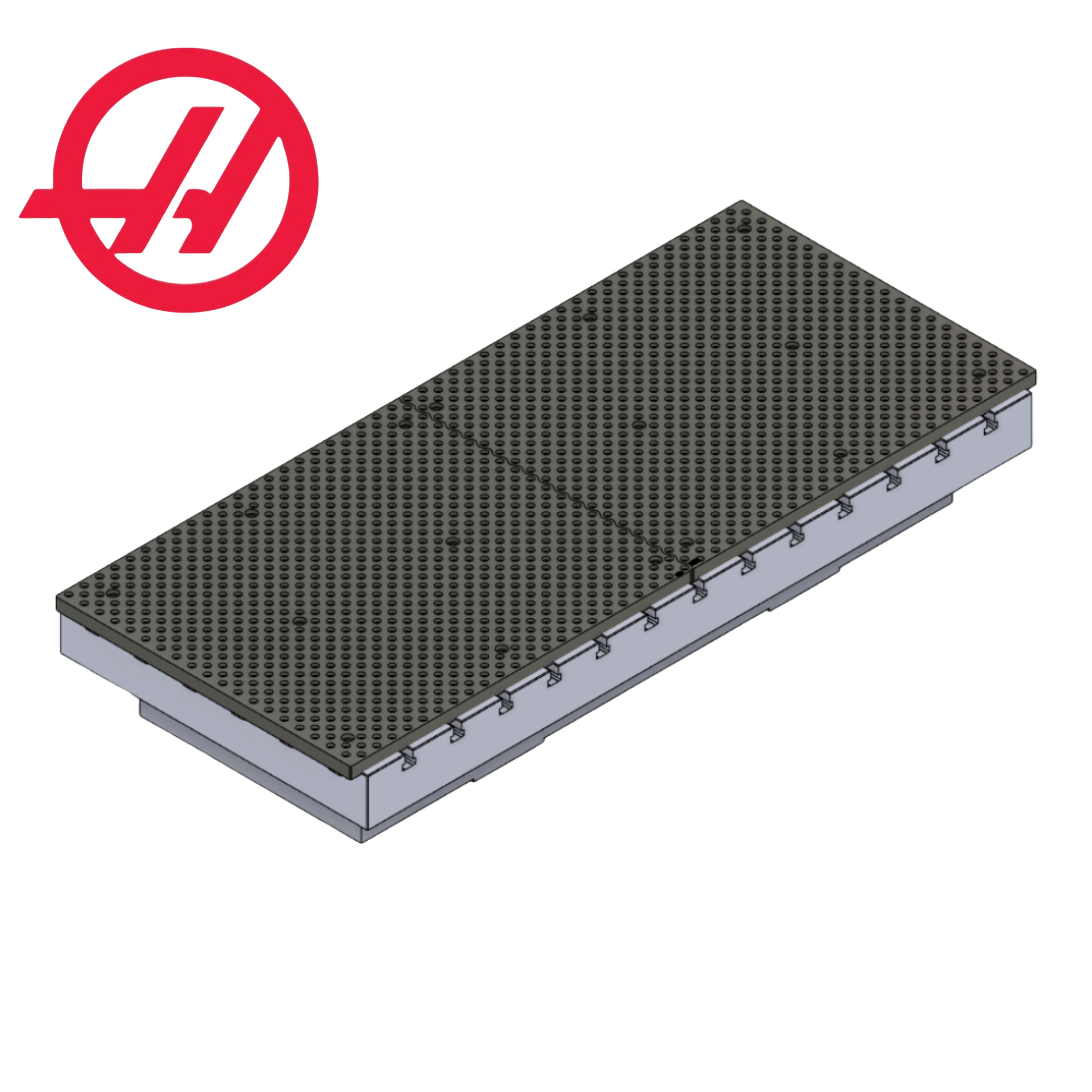

Fixture & tooling plate set for Haas VM-3 CNC machines.

Measurements: 55.75" x 24" x 0.95" (set of two ~28" x 24" plates). Featuring our new Pattern Interlock plates, ensuring no fixturing holes are lost at the plate seam! While supplies last, legacy straight-seam plates are available for a discount. Click here for legacy plate specs and downloads, however plates must be purchased from this page.

Each plate mounts to table with 8 low profile SHCS (16 total). Mounting screws and t-nuts are available as a separate option.

Plate has 1,656 fixture holes that are spaced 1.25" on-center. Each fixture hole is tapped 1/2-13 UNC and bored for 0.500" pin.

Available in 4140 steel or anodized 7075 aluminum. Click here to see the benefits of each.



On-Table Weights
Variant Weight (lbs)
4140 Steel 262.7
7075 Ano. Aluminum 102.8

Low-profile socket head cap screws and t-nuts are available separately.  No additional installation hardware is required.


Current Inventory
Variant QTY
4140 Steel 1
7075 Ano. Aluminum 0
7075 Ano. Aluminum (Old Stock) 1

In stock plates are typically ready to ship within one business day (other items in order may affect shipping time).

Out-of-stock bare aluminum and steel plates have a lead time of 3-4 weeks (steel fixture plate sets carry a 4-5 week lead time), while anodized 7075 fixture plates are 4-6 weeks. Please contact us for specific lead times or to inquire about time-critical orders.

This fixture plate is shipped LTL freight. We recommend shipping to a commercial address for the best rates (freight shipping to residential addresses can be expensive).

If you do not have access to a commercial address, orders can often be shipped to a local FedEx Freight terminal for pickup.
