Hurco VM10i Fixture Tooling Plate

Hurco VM10i Fixture Tooling Plate

$ 2,499.00 USD
$ 2,499.00 USD
Sale Sold out
Material
Our P/N: S1237
Recommended Add-Ons [1] 11/16" & 18mm T-Slot Hardware Kit (+$ 47.99 ea.)
[1100] Black Fixture Plate Plugs (+$ 224.97 / plate)
Accessory Kits [1] Basic Accessory Kit (+$ 405.93 ea.)
[1] Standard Accessory Kit (+$ 949.80 ea.)
[1] Pro Accessory Kit (+$ 1,931.60 ea.)

Out of stock (see lead times below)

Product Specifications

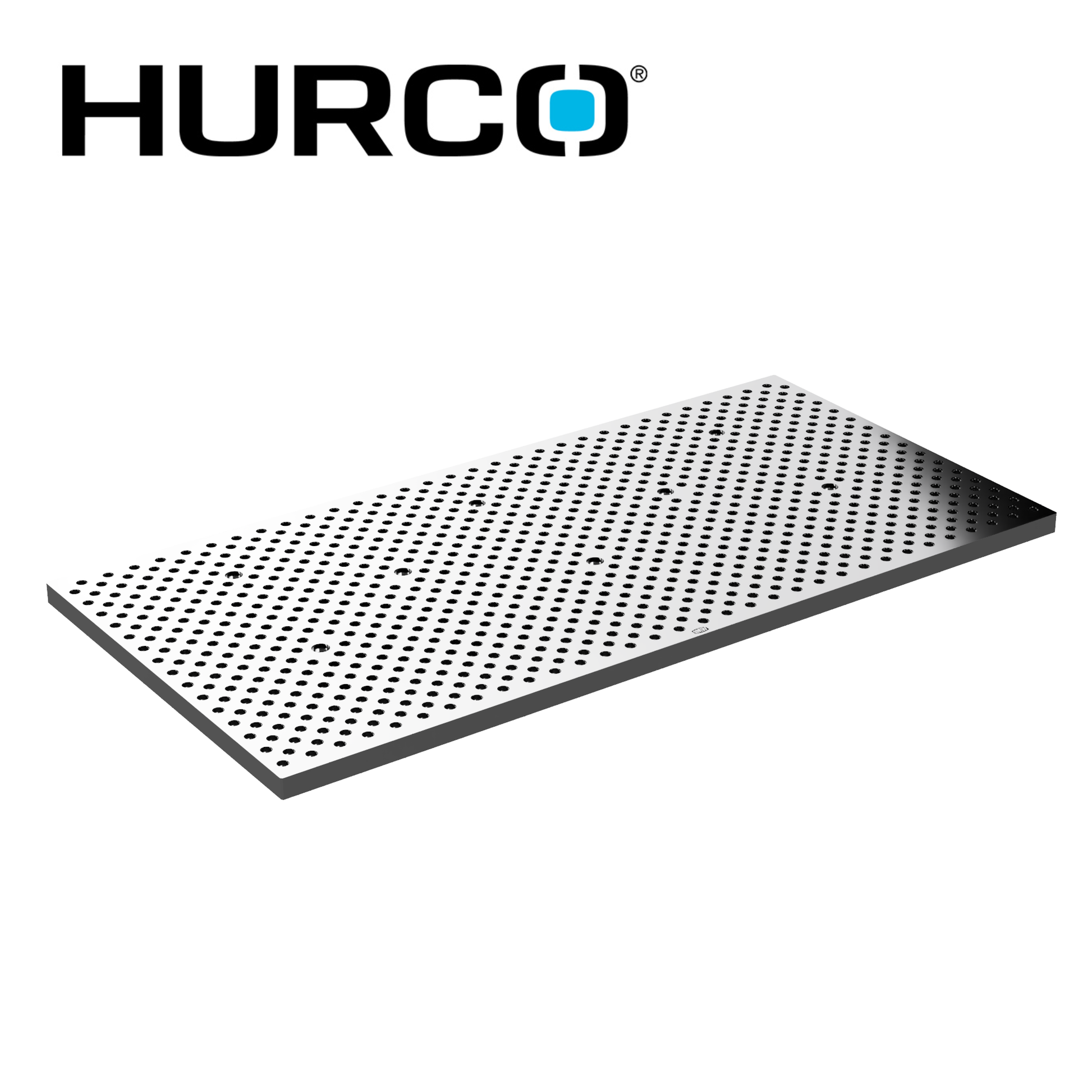

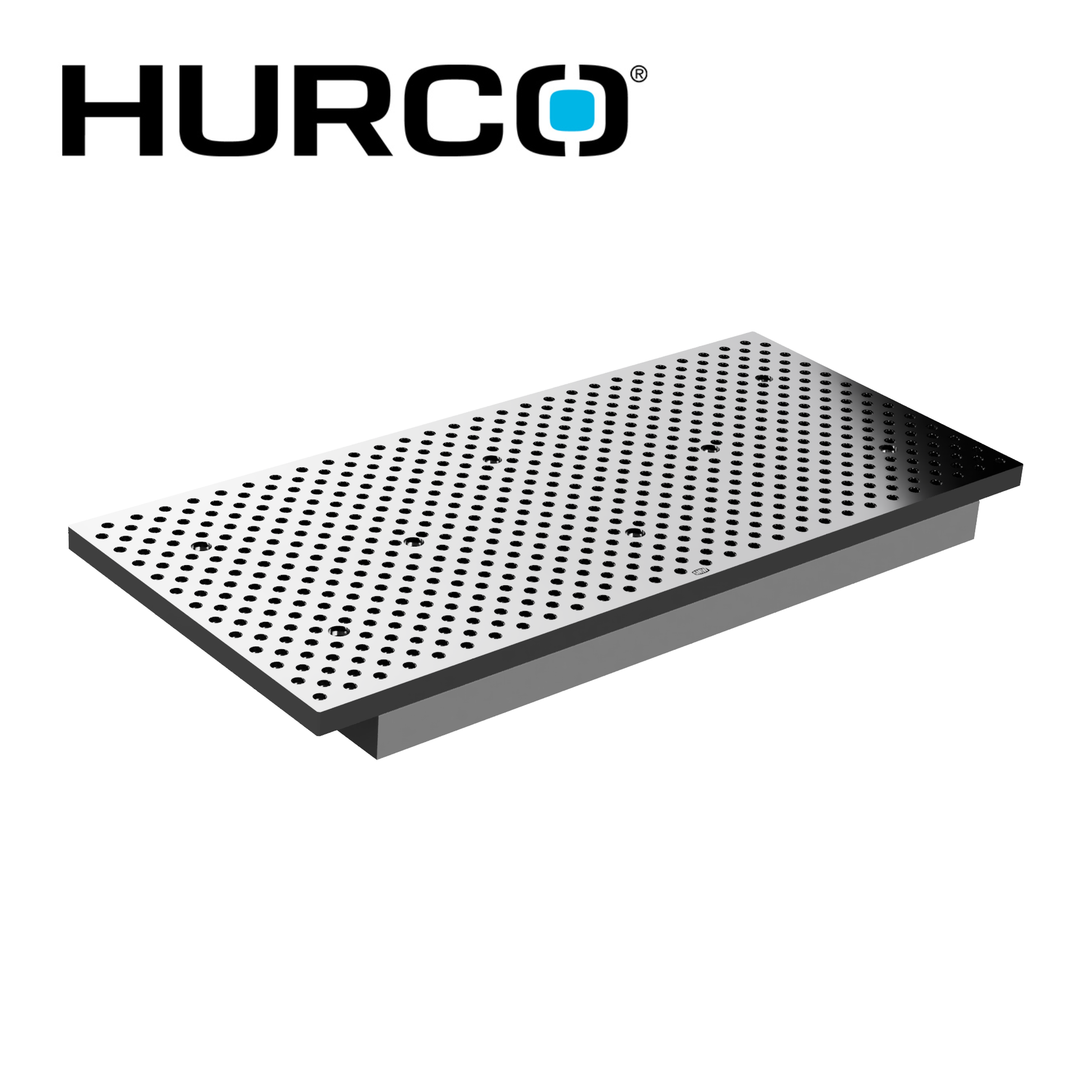

Fixture & tooling plate for Hurco VM10i CNC machines.

Measurements: 40" x 20". Steel plates are 0.85" thick, aluminum plates are 0.95" thick.

Plate mounts to table with 8 low profile SHCS. Mounting screws and t-nuts are available as a separate option.

Plate has 975 fixture holes that are spaced 1.25" on-center. Each fixture hole is tapped 1/2-13 UNC and bored for 0.500" pin.

Available in 4140 steel or anodized 7075 aluminum. Click here to see the benefits of each.

On-Table Weights
Variant Weight
4140 Steel 152.2lbs [69.1kg]
7075 Ano. Aluminum 62.1lbs [28.2kg]

Lead Time

  • In stock plates are typically ready to ship within one business day (other items in order may affect shipping time).
  • Out-of-stock bare aluminum and steel plates have a lead time of 3-4 weeks (steel fixture plate sets carry a 4-5 week lead time), while anodized 7075 fixture plates are 4-6 weeks.

Please contact us for specific lead times or to inquire about time-critical orders.

Shipping

This fixture plate is shipped LTL freight. We recommend shipping to a commercial address for the best rates (freight shipping to residential addresses can be expensive). If you do not have access to a commercial address, orders can often be shipped to a local FedEx Freight terminal for pickup.

Low-profile socket head cap screws and t-nuts are available separately.  No additional installation hardware is required.

For fixture plate installation instructions see our Knowledge Base article here.

Hurco VM10i Fixture Plate Solid Model (.step) Hurco VM10i Fixture Plate Drawing (.pdf)
