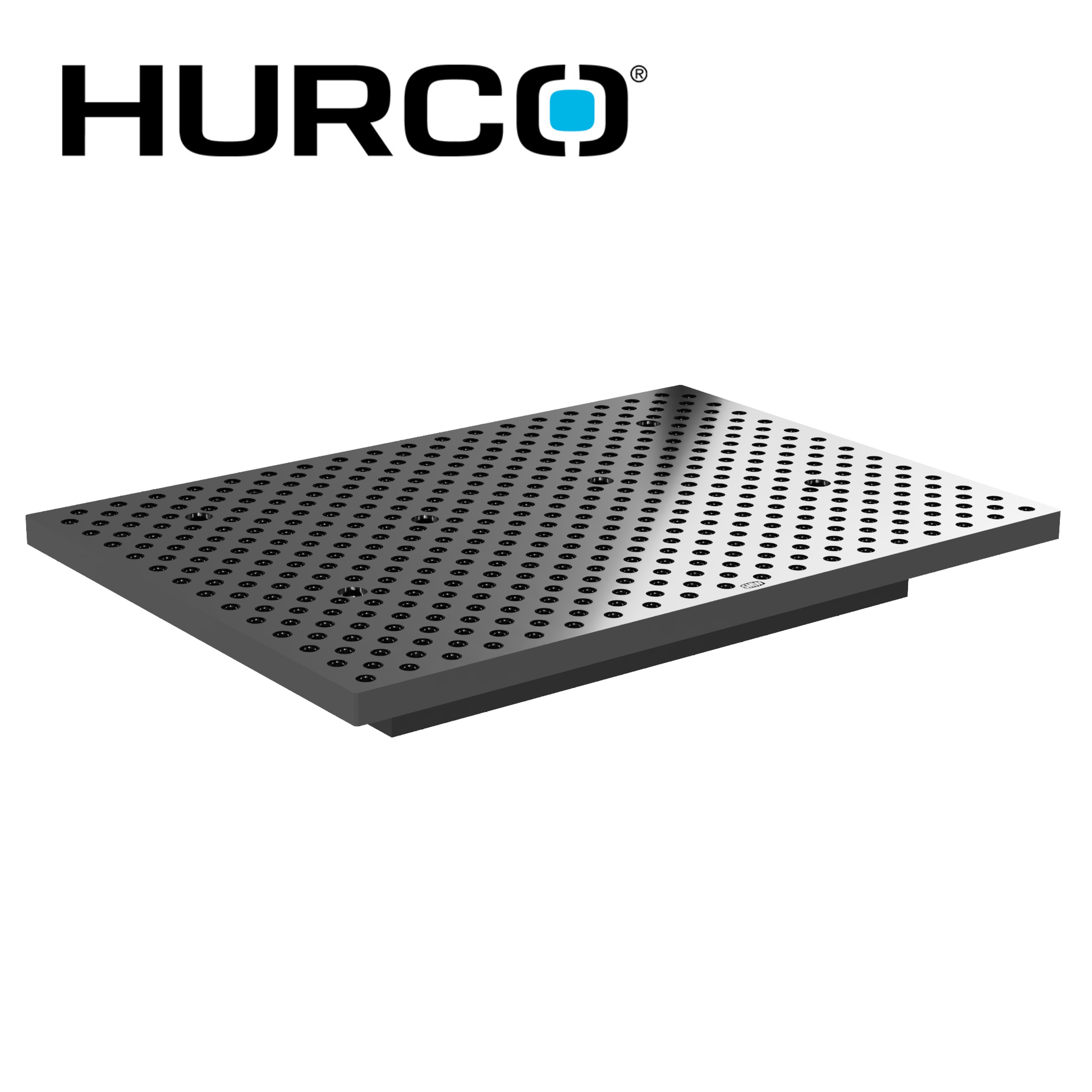

Fixture & tooling plate for Hurco VM5i CNC machines.
Measurements: 24" x 17". Steel plates are 0.85" thick, aluminum plates are 0.95" thick.
Plate mounts to table with 6 low profile SHCS. Mounting screws and t-nuts are available as a separate option.
Plate has 475 fixture holes that are spaced 1.25" on-center. Each fixture hole is tapped 1/2-13 UNC and bored for 0.500" pin.
Available in 4140 steel or anodized 7075 aluminum. Click here to see the benefits of each.
|7075 Ano. Aluminum||32.1|
Low-profile socket head cap screws and t-nuts are available separately. No additional installation hardware is required.
|7075 Ano. Aluminum||0|
In stock plates are typically ready to ship within one business day (other items in order may affect shipping time).
Out-of-stock bare aluminum and steel plates have a lead time of 3-4 weeks (steel fixture plate sets carry a 4-5 week lead time), while anodized 7075 fixture plates are 4-6 weeks. Please contact us for specific lead times or to inquire about time-critical orders.
If you do not have access to a commercial address, orders can often be shipped to a local FedEx Freight terminal for pickup.
