Precision Matthews PM-833 Fixture Tooling Plate

Precision Matthews PM-833 Fixture Tooling Plate

$ 799.00 USD
$ 799.00 USD
Sale Sold out
Material
Our P/N: S1098
Recommended Add-Ons [1] 5/8" & 16mm T-Slot Hardware Kit (+$ 19.04 ea.)
[600] Black Fixture Plate Plugs (+$ 124.98 / plate)
Accessory Kits [1] Basic Accessory Kit (+$ 395.93 ea.)
[1] Standard Accessory Kit (+$ 929.80 ea.)
[1] Pro Accessory Kit (+$ 1,901.60 ea.)

2 in stock

We also have the following plates in stock at a discounted price:

Product Specifications

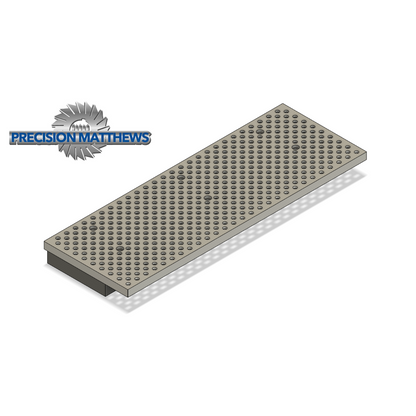

Fixture & tooling plate for Precision Matthews PM-833 CNC machines.

Measurements: 34" x 12" x 0.95"

Plate mounts to table with 6 low profile SHCS. Mounting screws and t-nuts are available as a separate option.

Plate has 471 fixture holes that are spaced 1.25" on-center. Each fixture hole is tapped 1/2-13 UNC and bored for 0.500" pin.

Available in 4140 steel and 6061 aluminum.



On-Table Weights
Variant Weight
6061 Aluminum 32.0lbs [14.5kg]
4140 Steel 78.5lbs [35.6kg]
Bare aluminum plates require a corrosion inhibitor (available here) if being mounted on a bare steel surface. Read more on our Knowledge Base.

Lead Time

  • In stock plates are typically ready to ship within one business day (other items in order may affect shipping time).
  • Out-of-stock bare aluminum and steel plates have a lead time of 3-4 weeks (steel fixture plate sets carry a 4-5 week lead time), while anodized 7075 fixture plates are 4-6 weeks.

Please contact us for specific lead times or to inquire about time-critical orders.

Shipping

This fixture plate ships via standard parcel shipping (FedEx Ground or USPS Priority). For questions about additional shipping methods, please contact us.

Low-profile socket head cap screws and t-nuts are available separately.  No additional installation hardware is required.

Bare aluminum plates require a corrosion inhibitor (available here) if being mounted on a bare steel surface. Read more on our Knowledge Base. Fixture Plate Installation Instructions (.pdf)
Precision Matthews PM-833 Fixture Plate Solid Model (.step) Precision Matthews PM-833 Fixture Plate Drawing (.pdf)
