SMART SM1050 Fixture Tooling Plate

SMART SM1050 Fixture Tooling Plate

$ 2,249.00 USD
$ 2,249.00 USD
Sale Sold out
Material
Our P/N: S1399
Recommended Add-Ons [1] 11/16" & 18mm T-Slot Hardware Kit (+$ 47.99 ea.)
[1100] Black Fixture Plate Plugs (+$ 224.97 / plate)
Accessory Kits [1] Basic Accessory Kit (+$ 411.93 ea.)
[1] Standard Accessory Kit (+$ 963.80 ea.)
[1] Pro Accessory Kit (+$ 1,965.60 ea.)

Out of stock (see lead times below)

Product Specifications

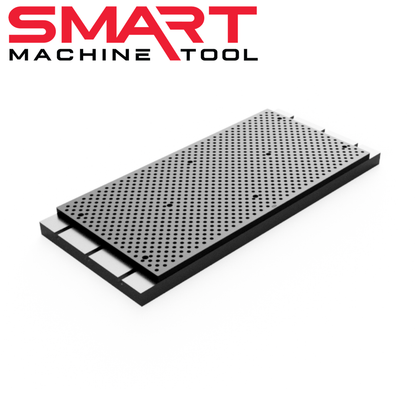

Fixture & tooling plate for SMART Machine Tools SM1050 CNC machines.

Measurements: 40" x 20" x 0.95"

Plate mounts to table with 8 low profile SHCS. Mounting screws and t-nuts are available as a separate option.

Plate has 975 fixture holes that are spaced 1.25" on-center. Each fixture hole is tapped 1/2-13 UNC and bored for 0.500" pin.

Available in anodized 7075 aluminum or 4140 steel.



On-Table Weights
Variant Weight
4140 Steel 11.0lbs [5.0kg]

Lead Time

In stock plates are typically ready to ship within one business day (other items in order may affect shipping time).

Out-of-Stock Lead Times
Material Single Plate Set of 2-3 Plates Set of 4+ Plates
4140 Steel 3-4 weeks 4-5 weeks 5-6 weeks
7075 Aluminum (Anodized) 4-6 weeks 4-6 weeks 5-7 weeks
6061 Aluminum 3-4 weeks 3-4 weeks --

Please contact us for specific lead times or to inquire about time-critical orders.

Shipping

This fixture plate is shipped LTL freight. We recommend shipping to a commercial address for the best rates (freight shipping to residential addresses can be expensive). If you do not have access to a commercial address, orders can often be shipped to a local FedEx Freight terminal for pickup.

Low profile bolts and t-nuts are available separately. No additional accessories are required.

For fixture plate installation instructions see our Knowledge Base article here.

Smart SM-1050 Fixture Plate Solid Model (.step) Smart SM-1050 Fixture Plate Drawing (.pdf)
