SYIL X5 Fixture Tooling Plate

$ 1,199.99
  • SYIL X5 Fixture Tooling Plate

SYIL X5 Fixture Tooling Plate

$ 1,199.99
Click here to view lead times on out of stock plates.
$ 1,199.99
[1] 14mm T-Slot Hardware Kit (+$ 47.33 ea.)
[400] Black Fixture Plate Plugs (+$ 99.96 / plate)

[1] Basic Accessory Kit [+$ 395.93 ea.]
[1] Standard Accessory Kit [+$ 929.80 ea.]
[1] Pro Accessory Kit [+$ 1,901.60 ea.]
Bare aluminum plates require a corrosion inhibitor if being mounted on a bare steel surface. Read more on our FAQ.

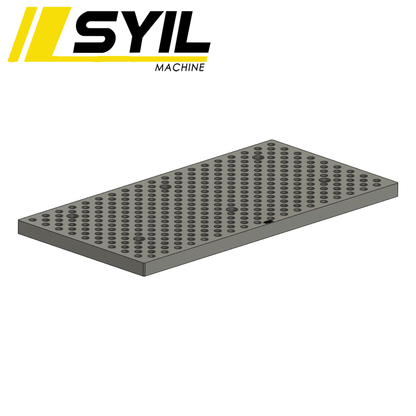

Fixture & tooling plate for SYIL X5 CNC machines with an 80mm t-slot spacingFor older X5 machines with a ~1.69" spacing, see our SYIL V5 fixture plate.

Measurements: 24" x 12" x 0.95". We recommend less than 1" [25mm] of overhang off of the left side of the table due to enclosure clearances.

Plate mounts to table with 6 low profile SHCS. Mounting screws and t-nuts are available as a separate option.

Plate has 327 fixture holes that are spaced 1.25" on-center. Each fixture hole is tapped 1/2-13 UNC and bored for 0.500" pin.

Available in 4140 steel, anodized 7075 aluminum, or 6061 aluminum. Click here to see the benefits of each.



On-Table Weights
Variant Weight (lbs)
4140 Steel 63.3
7075 Ano. Aluminum 21.8
6061 Aluminum 21.8

Mounting hardware is available as a separate option.


When 6061 aluminum SMW Fixture Plates are installed on a non-aluminum surface such as a steel machine table these plates must be used with a galvanic corrosion inhibitor (e.g. dielectric spark plug grease) and be removed frequently to inspect for condition and/or re-apply the corrosion inhibitor.

Installation Instructions


For information and video demos on how to setup, install, and other tips and tricks, visit the FAQ page!
Current Inventory
Variant QTY
4140 Steel 0
7075 Ano. Aluminum 0
6061 Aluminum 0

In stock plates are typically ready to ship within one business day (other items in order may affect shipping time).

Out-of-stock bare aluminum and steel plates have a lead time of 3-4 weeks (steel fixture plate sets carry a 4-5 week lead time), while anodized 7075 fixture plates are 4-6 weeks. Please contact us for specific lead times or to inquire about time-critical orders.

This fixture plate ships via standard parcel shipping (FedEx Ground or USPS Priority). For questions about additional shipping methods, please contact us.
