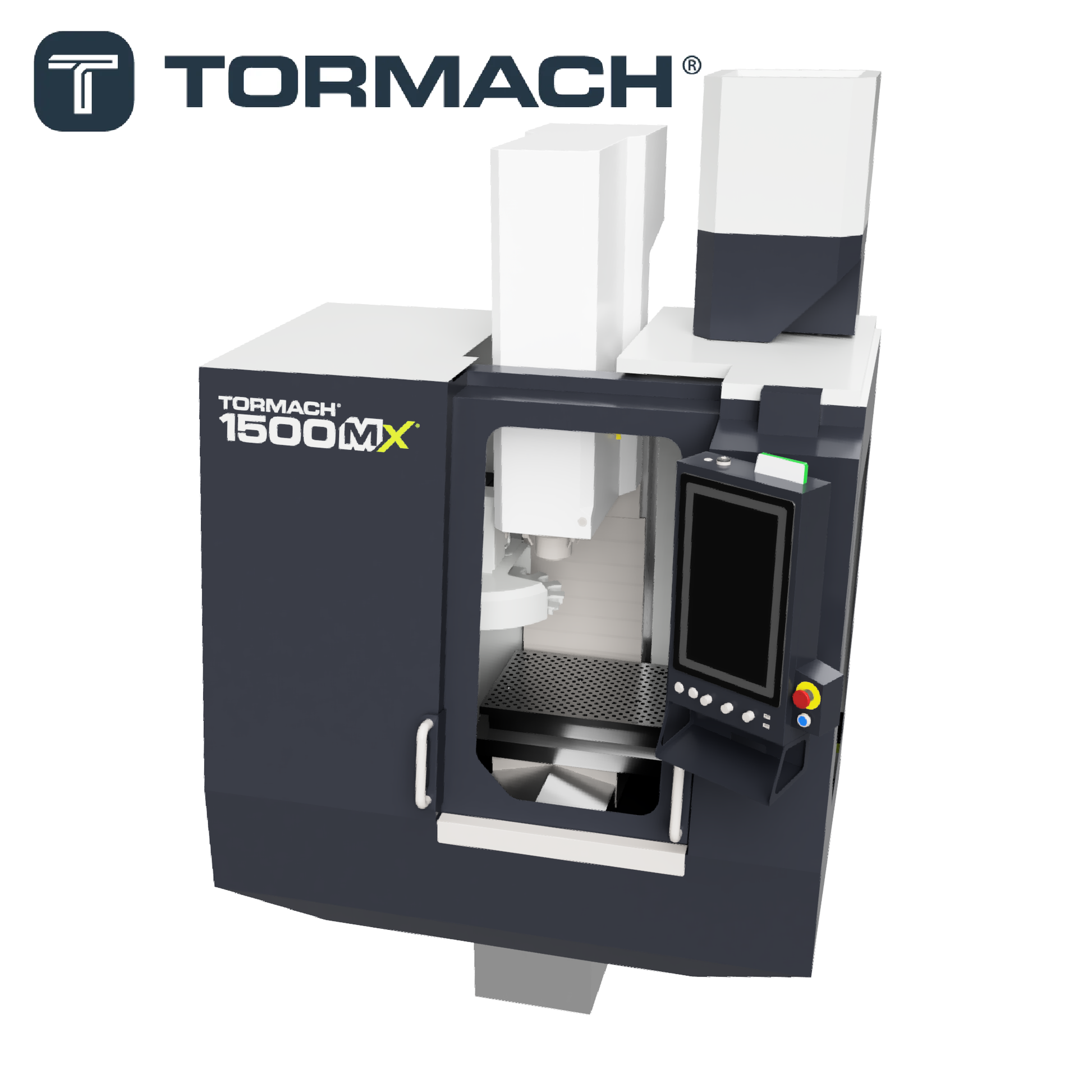

Fixture & tooling plate for Tormach 1500MX CNC machines.
Measurements: 35" x 16" x 0.95"
Plate mounts to table with 8 low profile SHCS. Mounting screws and t-nuts are available as a separate option.
Plate has 652 fixture holes that are spaced 1.25" on-center. Each fixture hole is tapped 1/2-13 UNC and bored for 0.500" pin. Two 1/2-13 fixturing holes are engraved with a '+', these holes are closest to the stock toolsetter mounting locations in the table (the toolsetter can be mounted in any hole in the plate, but you will need to swap the mounting bolt with a 1/2-13 bolt).
Available in 4140 steel hardened to 30 Rockwell C or anodized 7075 aluminum. Click here to see the benefits of each.
| Variant | Weight (lbs) |
|---|---|
| 4140 Steel | 122.7 |
| 7075 Ano. Aluminum | 42.2 |
Low-profile socket head cap screws and t-nuts are available separately. No additional installation hardware is required.
| Variant | QTY |
|---|---|
| 4140 Steel | 3 |
| 7075 Ano. Aluminum | 5 |
In stock plates are typically ready to ship within one business day (other items in order may affect shipping time).
Out-of-stock bare aluminum and steel plates have a lead time of 3-4 weeks (steel fixture plate sets carry a 4-5 week lead time), while anodized 7075 fixture plates are 4-6 weeks. Please contact us for specific lead times or to inquire about time-critical orders.
If you do not have access to a commercial address, orders can often be shipped to a local FedEx Freight terminal for pickup.
