Haas VF-3YT Fixture Tooling Plate Set

$ 3,999.00
  • Haas VF-3YT Fixture Tooling Plate Set

Haas VF-3YT Fixture Tooling Plate Set

$ 3,999.00
Click here to view lead times on out of stock plates.

We also have the following plates in stock at a discounted price:

$ 3,999.00

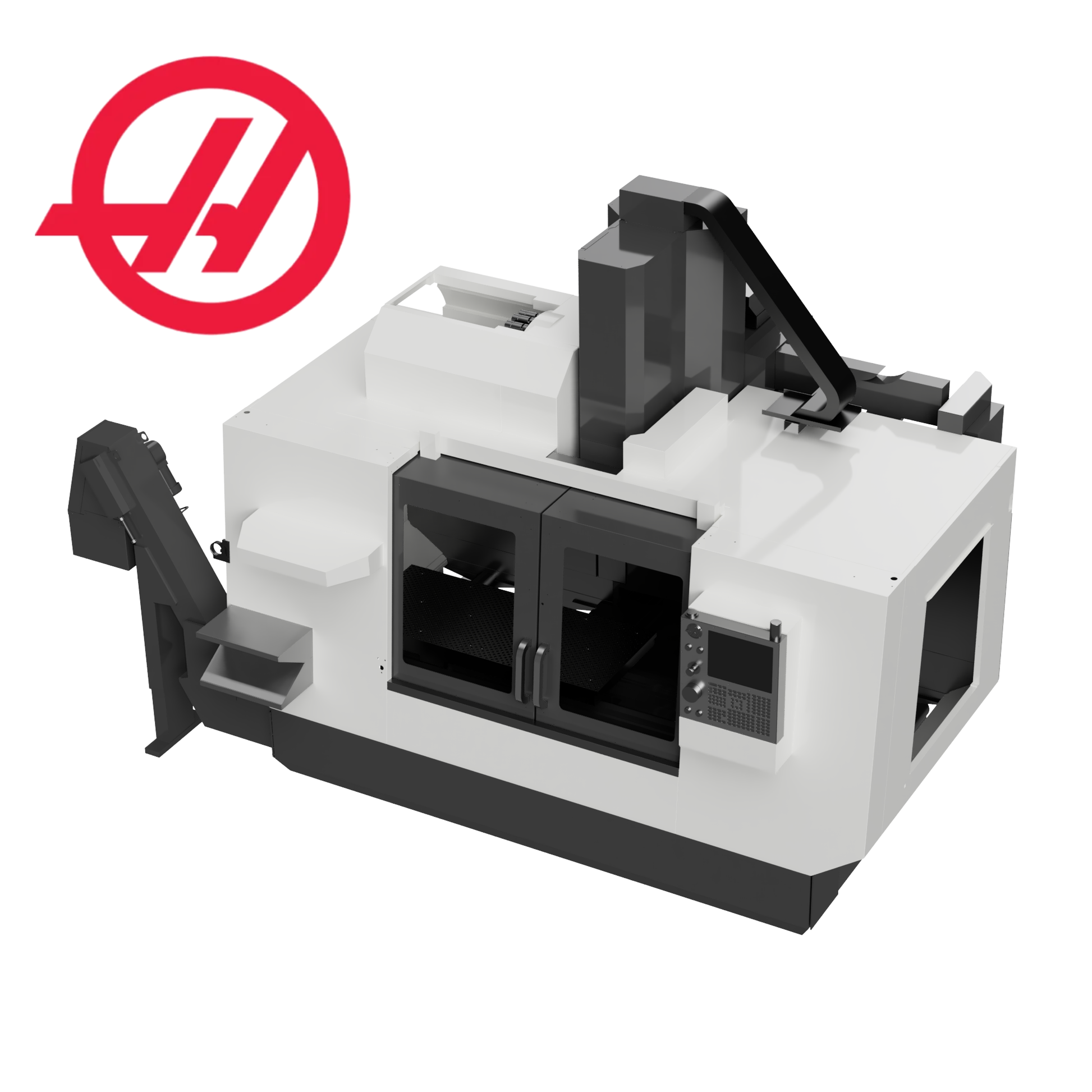

  • Fixture & tooling plate set for Haas VF-3YT and VF-3SSYT CNC machines.

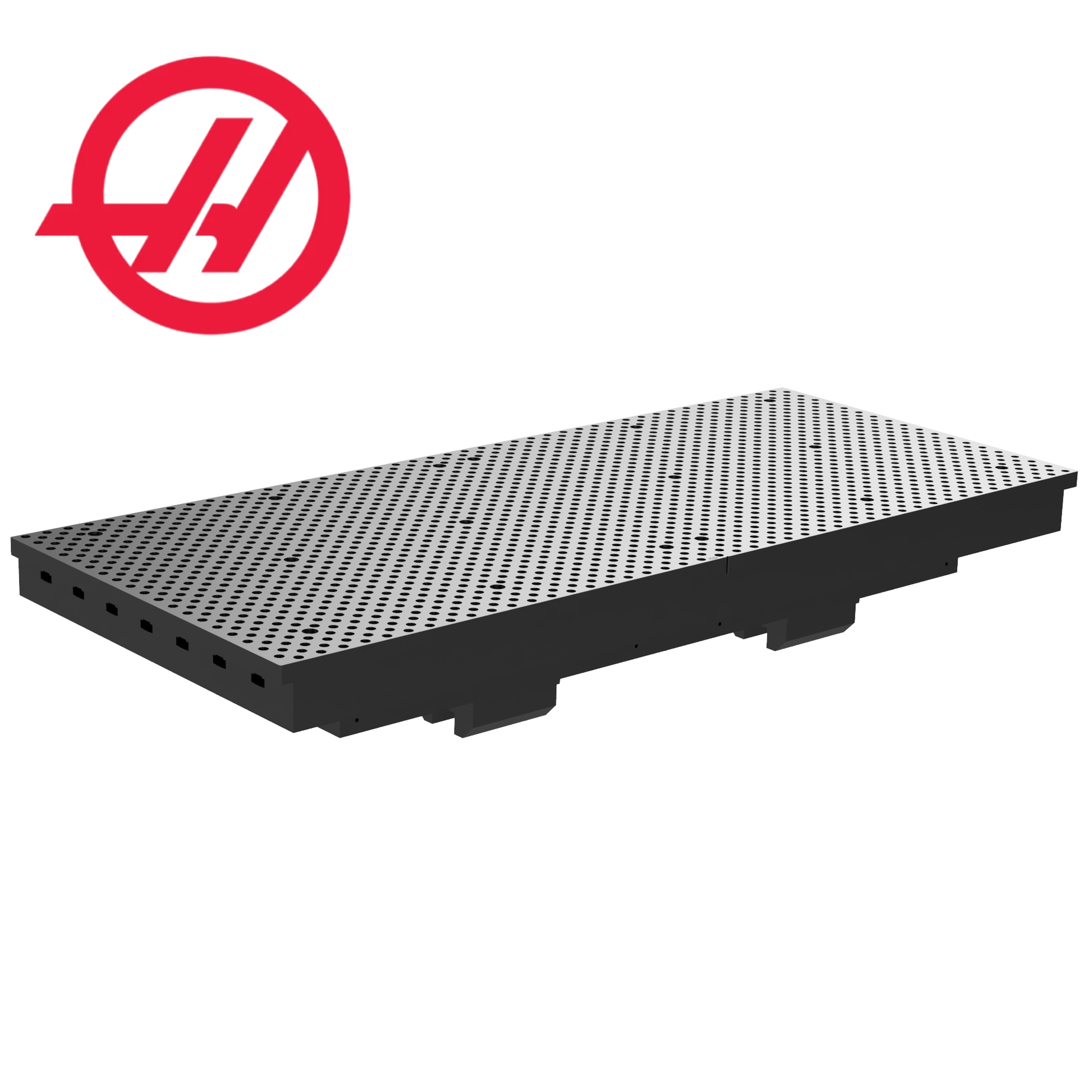

    Measurements: 55.75" x 24" x 0.95" (set of two ~28" x 24" plates). Featuring our new Pattern Interlock plates, ensuring no fixturing holes are lost at the plate seam! While supplies last, legacy straight-seam plates are available for a discount.

    Each plate mounts to table with 8 low profile SHCS. Mounting screws and t-nuts are available as a separate option.

    Set has 1,656 fixture holes that are spaced 1.25" on-center. Each fixture hole is tapped 1/2-13 UNC and bored for 0.500" pin.

    Available in 4140 steel or anodized 7075 aluminum. Click here to see the benefits of each.

    Note: to accommodate older machines with a 23" wide table, newer machines with a 24" wide table have a slight underhang at the rear side of the table of approximately 0.5".

    On-Table Weights
    Variant Weight (lbs)
    4140 Steel 263.6
    7075 Ano. Aluminum 103.1

    Low-profile socket head cap screws and t-nuts are available separately.  No additional installation hardware is required.

    For fixture plate sets, we recommend our Alignment Jig Kit for quick setup of multiple plates. Two SMW Fixture or Blank Pallets with 1/2" pins can also be used.


    Current Inventory
    Variant QTY
    4140 Steel 0
    7075 Ano. Aluminum 3 set(s)

    In stock plates are typically ready to ship within one business day (other items in order may affect shipping time).

    Out-of-stock bare aluminum and steel plates have a lead time of 3-4 weeks (steel fixture plate sets carry a 4-5 week lead time), while anodized 7075 fixture plates are 4-6 weeks. Please contact us for specific lead times or to inquire about time-critical orders.

    This fixture plate is shipped LTL freight. We recommend shipping to a commercial address for the best rates (freight shipping to residential addresses can be expensive).

    If you do not have access to a commercial address, orders can often be shipped to a local FedEx Freight terminal for pickup.
