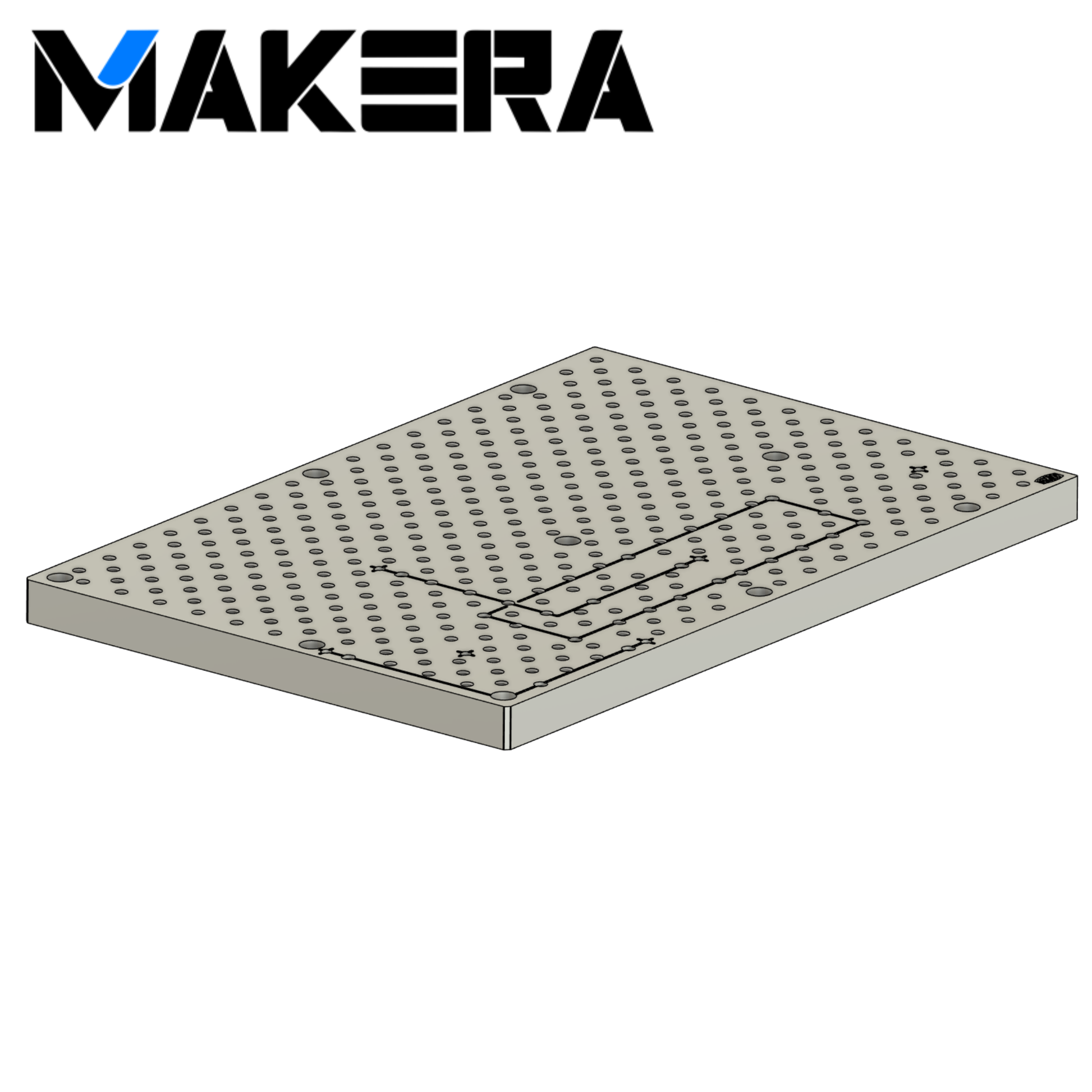

14" x 9.45" x 0.70" 6061 Aluminum Fixture & Tooling Plate for Makera Carvera Desktop CNC Machines.

These will be available for purchase soon, please email us if you would like a notification for when they are in stock!

This plate retains the stock mounting locations and hardware for the Makera L-Brackets and 4th Axis by passing the pins and hardware through the fixture plate and into the existing bed standoffs. Plate is engraved to denote these locations.

INCH PLATES: Holes are 0.75" on center.  Every hole is tapped 1/4"-20.

METRIC PLATES: Holes are 20mm on center.  Every hole is tapped M6.

This plate replaces the MDF spoilboard. You will need to remove most of the standoffs from the Carvera bed (12 standoffs and all 4mm locating pin posts can be left in place for mounting the Makera L-Brackets and 4th Axis - see 3rd photo). Plate mounts with existing SHCS from the spoilboard.

NOTE: If you are machining conductive materials, you must cover the circuit board contacts before installing the fixture plate. Otherwise metal chips may fall through the fixture plate holes and cause a short. We recommend covering with hot glue, electrical tape, or installing set screws in the fixture plate to block the holes above the circuit board. You can also 3D-print our fixture plate plugs here.
