Okuma M660-V Fixture Tooling Plate Set

Okuma M660-V Fixture Tooling Plate Set

$ 5,999.00 USD
$ 5,999.00 USD
Sale Sold out
Material
Our P/N: S1836
Recommended Add-Ons [1] 11/16" & 18mm T-Slot Hardware Kit (+$ 139.99 ea.)
[1] Fixture Plate Set Installation Tool (+$ 24.99 ea.)
[2000] Black Fixture Plate Plugs (+$ 399.96 / plate set)
Accessory Kits [1] Basic Accessory Kit (+$ 411.93 ea.)
[1] Standard Accessory Kit (+$ 963.80 ea.)
[1] Pro Accessory Kit (+$ 1,965.60 ea.)

2 in stock

Product Specifications

Fixture & tooling plate for Okuma M660-V CNC machines.

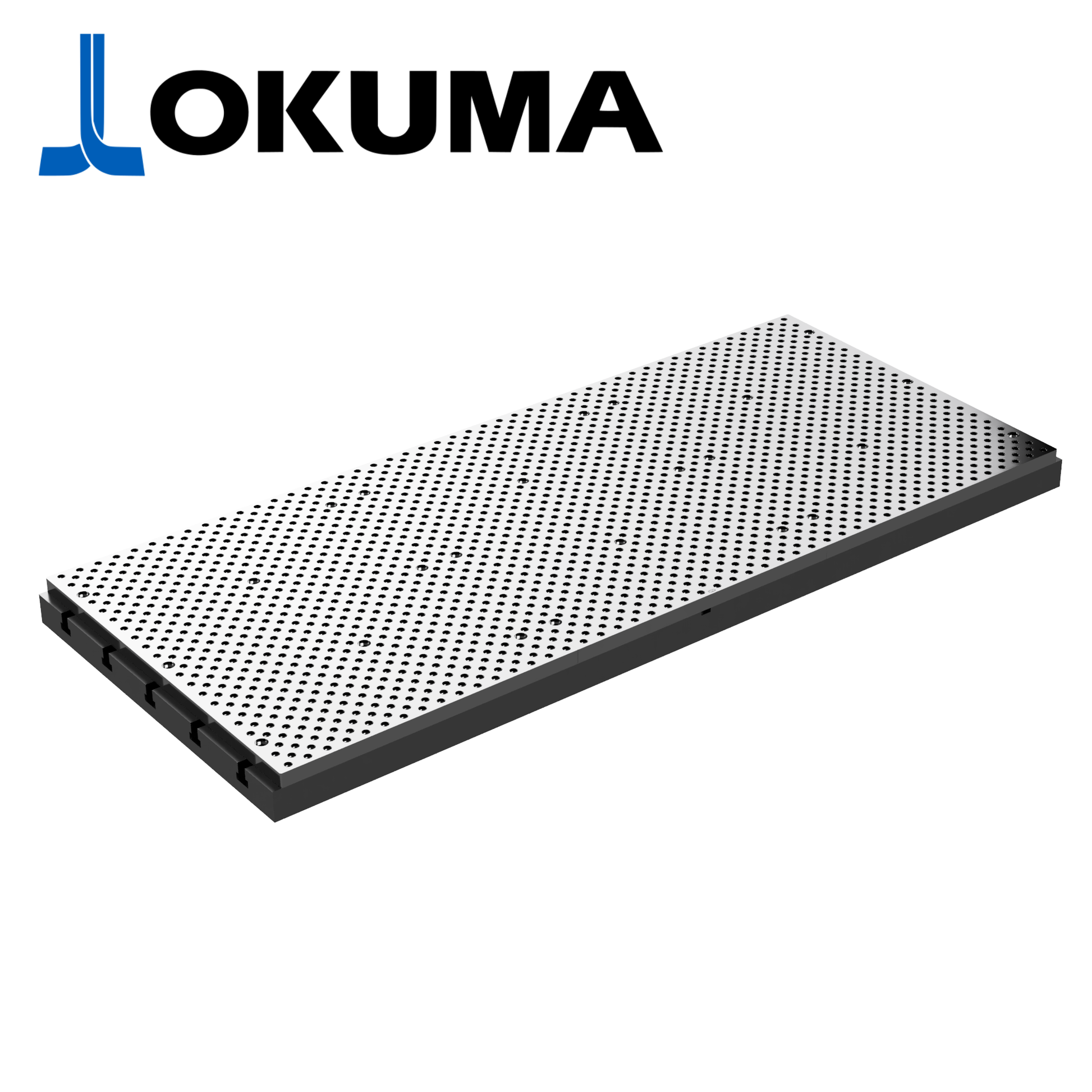

Measurements: 59.1" x 26" x 0.95" (set of three ~26" x 20" plates). Featuring our new Pattern Interlock plates, ensuring no fixturing holes are lost at the plate seam!

Each plate mounts to table with 8 low profile SHCS (24 total). Mounting screws and t-nuts are available as a separate option.

Plate has 1,883 fixture holes that are spaced 1.25" on-center. Each fixture hole is tapped 1/2-13 UNC and bored for 0.500" pin.

Available in 4140 steel or anodized 7075 aluminum. Click here to see the benefits of each.



On-Table Weights
Variant Weight
4140 Steel 332.7lbs [150.9kg]
7075 Ano. Aluminum 114.4lbs [51.9kg]

Lead Time

In stock plates are typically ready to ship within one business day (other items in order may affect shipping time).

Out-of-Stock Lead Times
Material Single Plate Set of 2-3 Plates Set of 4+ Plates
4140 Steel 3-4 weeks 4-5 weeks 5-6 weeks
7075 Aluminum (Anodized) 4-6 weeks 4-6 weeks 5-7 weeks
6061 Aluminum 3-4 weeks 3-4 weeks --

Please contact us for specific lead times or to inquire about time-critical orders.

Shipping

This fixture plate is shipped LTL freight. We recommend shipping to a commercial address for the best rates (freight shipping to residential addresses can be expensive). If you do not have access to a commercial address, orders can often be shipped to a local FedEx Freight terminal for pickup.

Low-profile socket head cap screws and t-nuts are available separately.  No additional installation hardware is required.

For fixture plate sets, we recommend our Plate Set Installation Tool for easier setup of multiple plates. Two SMW Fixture or Blank Pallets with 1/2" pins can also be used.

For fixture plate installation instructions see our Knowledge Base article here.

Okuma M660 Fixture Plate Set Solid Model (.step) Okuma M660 Fixture Plate Set Drawing (.pdf)
